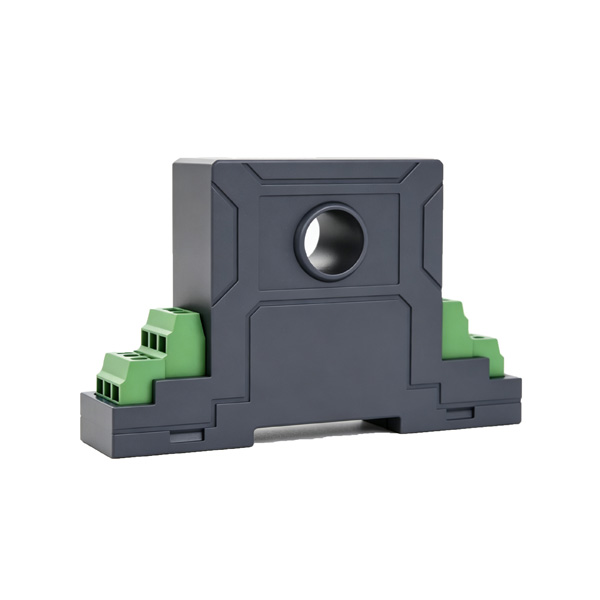

    Single Phase DC Voltage Transducer, 0-1000V, 24V/220V Supply

    1 review(s) | Add your review
    SKU: SUCH-VOS-DZU
    $111.51
    ● DC voltage measurement range 0–1000 mV and 0–1000 V selectable ● Output signals 0–5 V, 0–10 V, 4–20 mA, or RS485 communication (optional) ● Electrical isolation between input and output circuits ● Accuracy class ±0.5% F.S.
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH single-phase DC voltage transducer is an industrial-grade device for precise DC voltage signal acquisition and conversion. With a selectable input range of 0–1000 mV or 0–1000 V, it integrates seamlessly with PLC systems, digital display meters, data recorders, and power distribution cabinets — making it a reliable solution for renewable energy storage, rail transit power monitoring, industrial automation, and remote power dispatching.

    Features

    • High Measurement Accuracy — ±0.5% F.S accuracy with temperature drift ≤200 PPM/°C, ensuring stable and consistent DC voltage readings across varying thermal conditions.
    • Strong Isolation & Surge Protection — Isolation withstand voltage up to 3 kV (3KV/50Hz, 1 min), with a built-in lightning protection module and voltage regulator tube for reliable EMI resistance in harsh industrial environments.
    • Pure Copper Coil & High-Permeability Core — Delivers superior signal stability and reduced data drift compared to standard coil designs, supporting long-term measurement reliability.
    • Flexible Output Options — Supports 4–20 mA, 0–20 mA, 0–5 V, and 1–5 V DC outputs, with 220 V and custom output configurations available on request.
    • Wide Operating Temperature Range — Functions reliably from -20°C to +80°C (storage: -25°C to +85°C), suitable for demanding outdoor and industrial environments.
    • Easy Installation & Low Power Consumption — DIN rail mounting (standard guide rail + flat screw) for fast deployment; 24 V DC powered at just 1 W for energy-efficient, long-term operation.
    • Overload Protection — Supports up to 2× rated input overload capacity, protecting the device against unexpected voltage spikes.

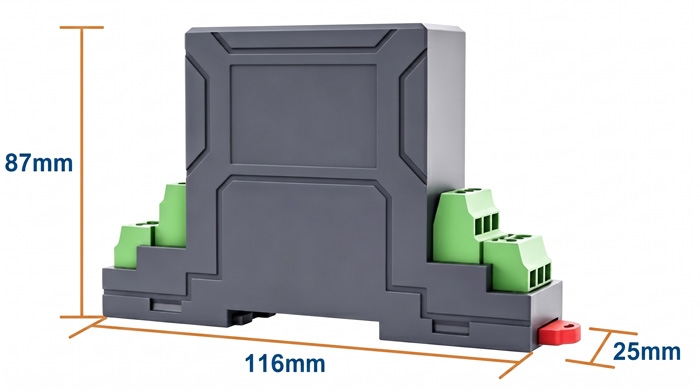

    Dimension

    Single phase dc voltage transducer dimensions

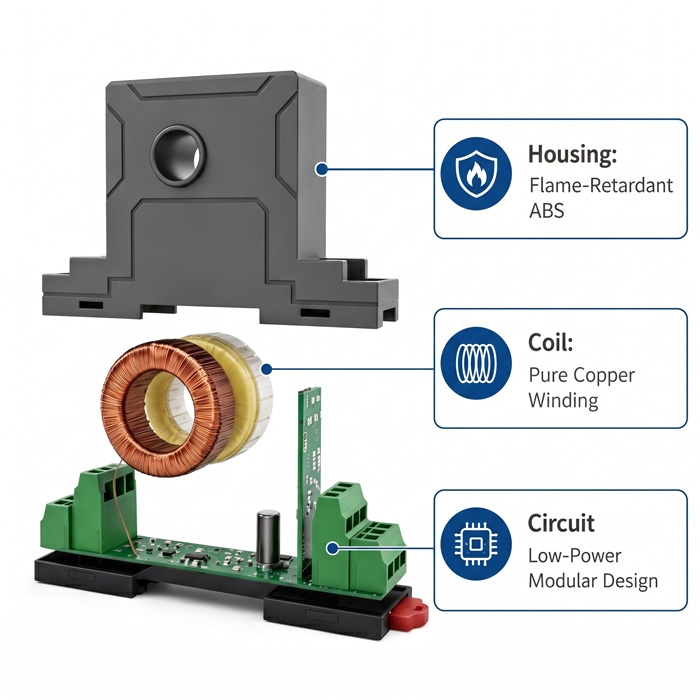

    Details

    Single phase dc voltage transducer details

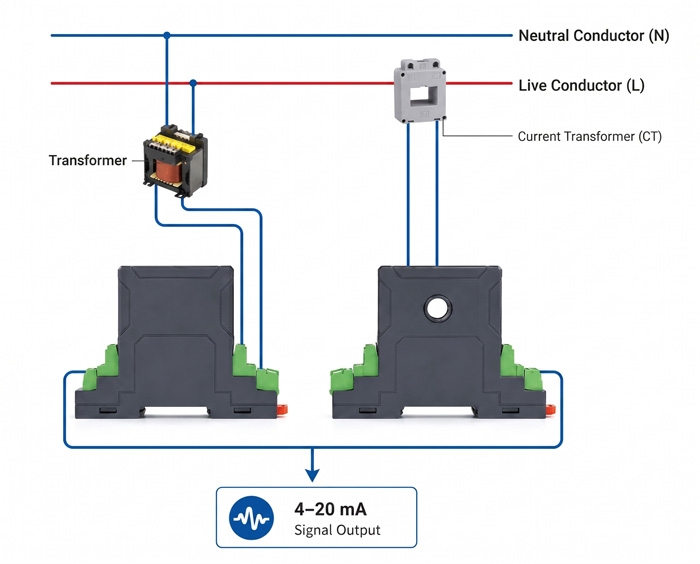

    High-Current Voltage Monitoring Solution Wiring

    DC voltage transducer high-current monitoring solution wiring diagram

    Specs
    Input DC Voltage
    Measurement Range 0-1000mV/0-1000V Optional
    Mounting Method Standard Guide Rail + Flat Screw
    Load Capacity Voltage Output - 5mA; Current Output - 6V
    Accuracy ±0.5% F.S
    Overload Capacity 2×Rated Input
    Isolation Withstand Voltage 3KV/50HZ 1Min
    Offset Voltage ≤10mV
    Operating Temperature -20~+80°C
    Storage Temperature -25~+85°C
    Temperature Drift ≤200PPM/°C
    Power Supply 24V/220V
    Frequency Range 40-60Hz
    Weight 500g
    Transducer Output 4-20mA, 0-20mA, 0-5V, 1-5VDC, 220V Optional
    Application

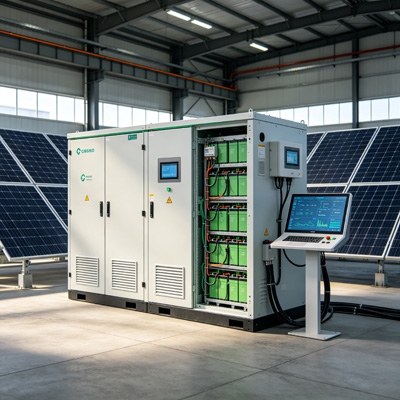

    DC voltage transducer used in renewable energy storage systems

    Renewable Energy Storage Systems

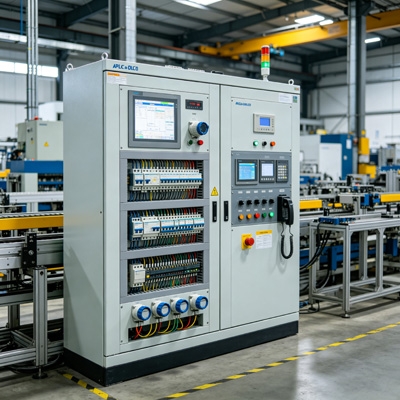

    DC voltage transducer installed in industrial automation control panel

    Industrial Automation Control Panels

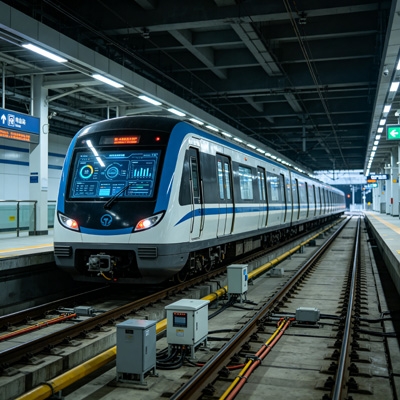

    DC voltage transducer for rail transit power monitoring system

    Rail Transit Power Monitoring

    FAQ
     ❯

    Output options include 4–20 mA, 0–20 mA, 0–5 V, and 1–5 V DC, with 220 V and custom configurations available on request. It is compatible with PLCs, digital display meters, data recorders, and power distribution cabinet systems.

     ❯

    Yes. With an operating temperature range of -20°C to +80°C, 3 kV isolation withstand voltage, and a built-in lightning protection module, it is designed for stable long-term performance in demanding industrial and outdoor conditions.

     ❯

    The measurement range is selectable between 0–1000 mV and 0–1000 V, with an accuracy of ±0.5% F.S and a temperature drift of ≤200 PPM/°C, making it suitable for a wide range of DC voltage monitoring applications.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Harold Spencer | 7/16/2026 9:12 AM
    a reliable dc voltage transducer for industrial projects
    came across this dc voltage transducer while updating a power measurement system. the size made it convenient to install inside the control cabinet, and the wiring arrangement was clear. after running several tests, the output stayed within the expected range. I have used it for regular monitoring tasks and it has performed as needed so far.
