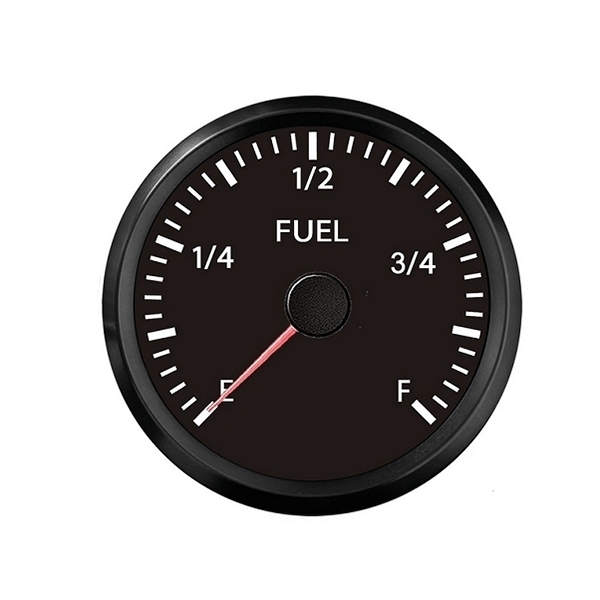

WiFi Fuel Level Gauge, 52mm, 12V/24VDC

The 52mm fuel level gauge built-in Wi-Fi connectivity, it supports quick wireless configuration and convenient adjustment of pointer response speed. The high-quality fuel level gauge is compatible with multiple resistance ranges, including 0–180 Ω, 10–180 Ω, 180–10 Ω, and 240–33 Ω, and compatible with SUCH ultrasonic fuel level sensors for wireless fuel tank monitoring. Powered by 12V/24V DC, it features an IP65 waterproof rating and a 316L stainless steel bezel.

Feature

• WiFi wireless configuration: Built-in WiFi enables wireless setup of fuel sensor resistance values, simplifying installation and eliminating complex wiring or manual calibration.
• Wide sensor compatibility: Supports various fuel level sensors with customizable resistance ranges, including 0–180Ω, 10–180Ω, 180–10Ω, and 240–33Ω, ensuring accurate fuel level measurement.
• Adjustable pointer response: Allows users to adjust pointer movement speed for smoother display performance and a more personalized monitoring experience.
• Precision stepper motor drive: Equipped with a high-quality stepper motor and 270° sweep angle for accurate readings, stable operation, and excellent visibility.

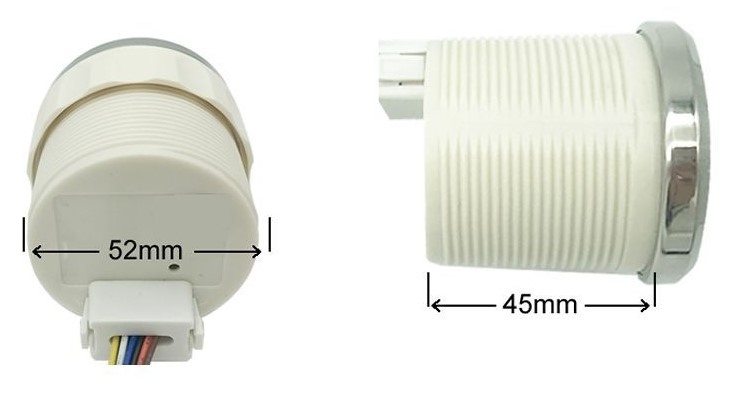

Dimension (Unit: mm)

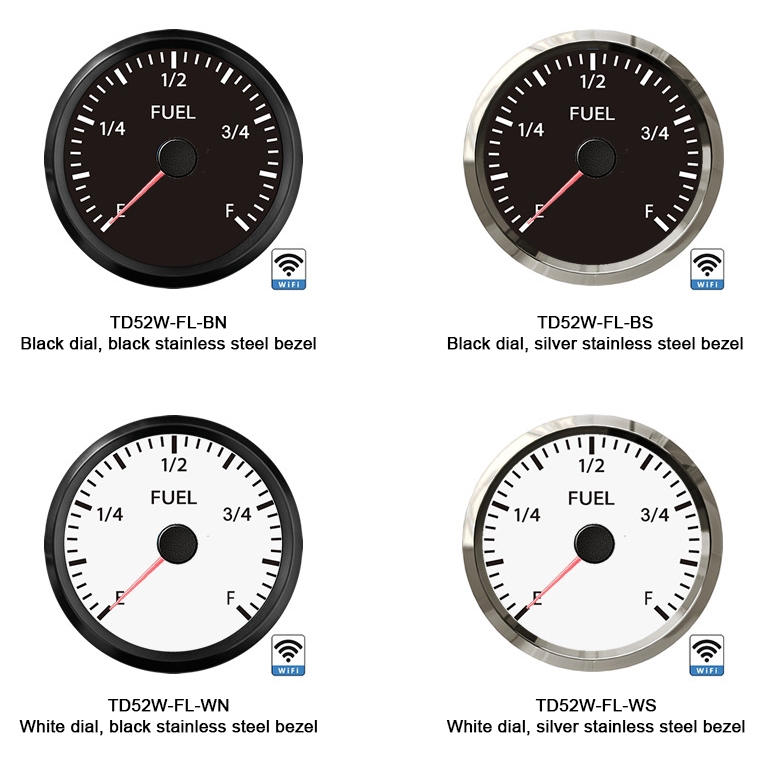

Appearance Options

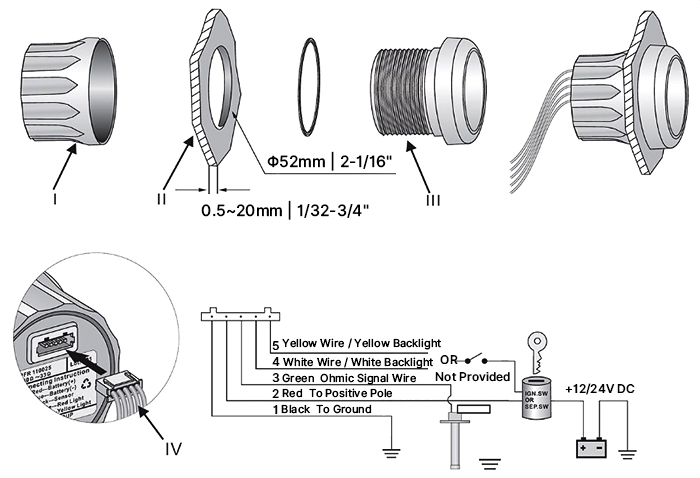

Installation Diagram
