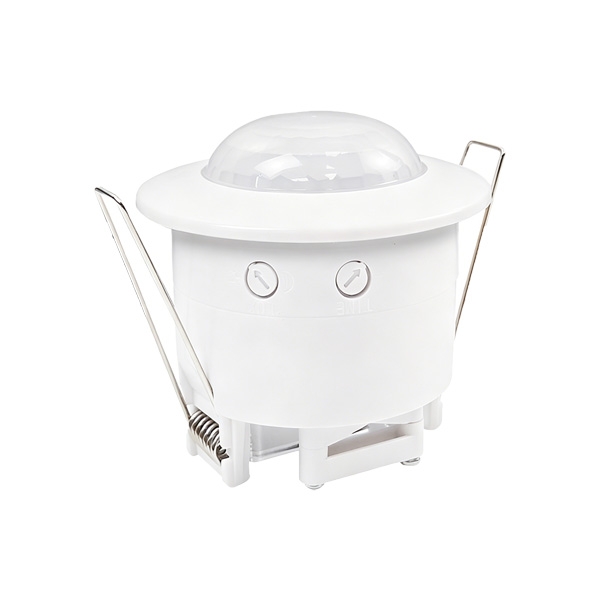

Embedded Infrared Presence Sensor, 100-260V AC

SUCH infrared presence sensor is an embedded lighting control device that uses infrared (PIR) sensing technology and a Fresnel lens to detect human presence within a 120° angle and up to 6m range. Supporting 100-260V AC input at 50/60Hz, it handles tungsten loads up to 800W and fluorescent loads up to 200W, with adjustable delay time (10s–7min) and light sensitivity (3–2000Lux). The compact 61×67×70mm flush-mount housing fits 61mm/41mm mounting hole spacing and suits installation heights of 2.5–3.5m. It is suitable for automatic lighting control in corridors, stairwells, hallways, and entryways.

Note: This presence sensor detects human movement for automatic lighting control.

Feature

• 100-260V AC Wide Voltage Input — Supports direct connection to common AC power systems across different regions.

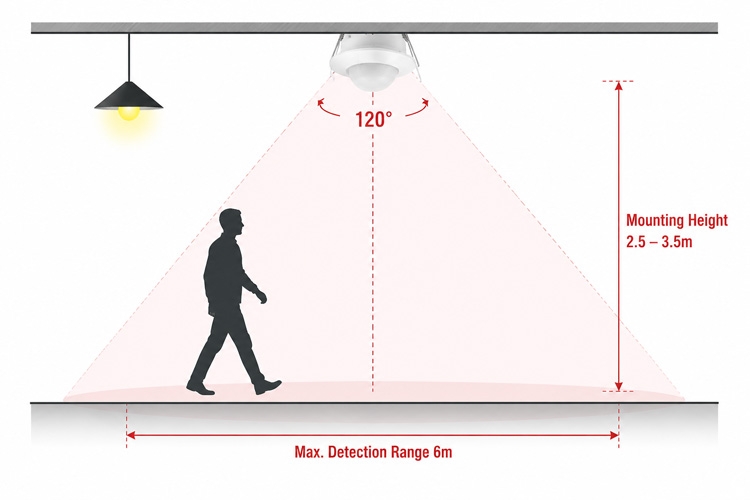

• 120° Detection Angle, Max. 6m Range — Fresnel lens design provides wide-angle coverage along corridors and open passageways.
• Adjustable Delay Setting, 10s–7min — Light-off timing can be set to match actual foot traffic patterns.
• Adjustable Light Sensitivity, 3–2000Lux — Sets the ambient brightness threshold at which the sensor activates.
• Rated Load: Tungsten 800W / Fluorescent 200W — Drives common lamp types directly, without an external relay.

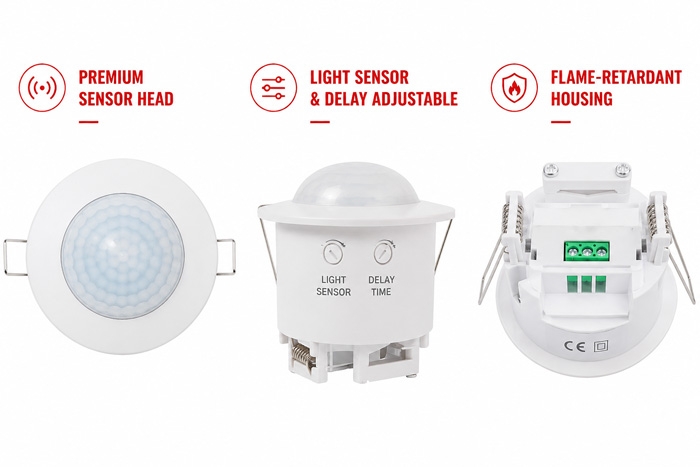

• Embedded Flush-Mount Design, 61×67×70mm — Compact housing installs flush with the mounting surface.
• Flame-Retardant Housing — Designed for safe indoor installation environments.

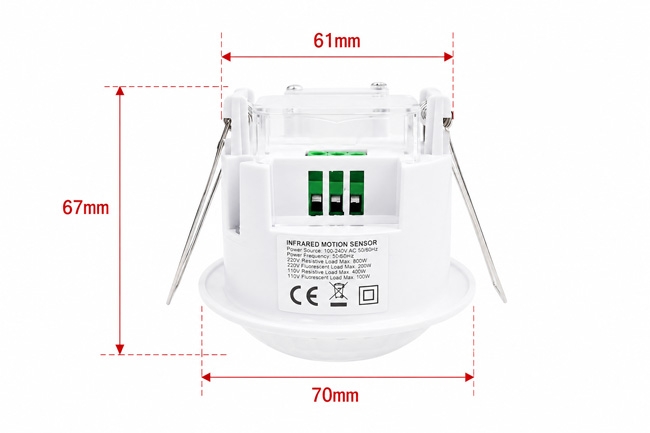

Dimension (Unit:mm)

Details

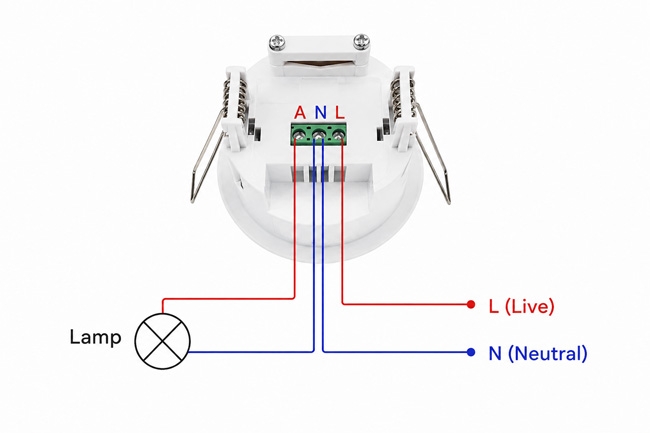

Wiring
