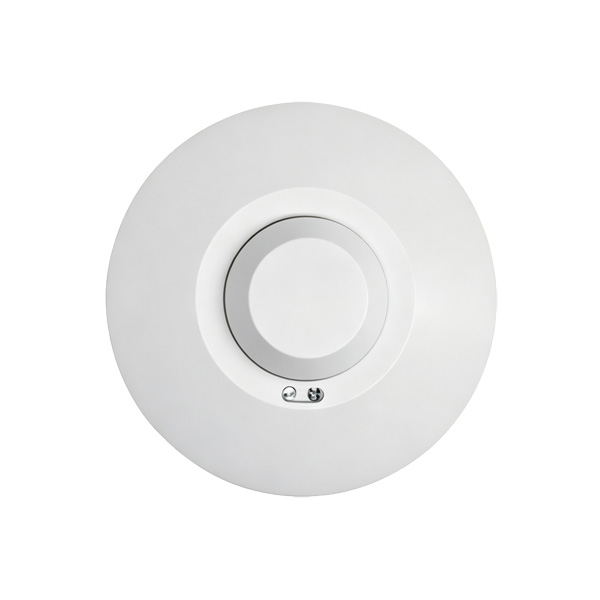

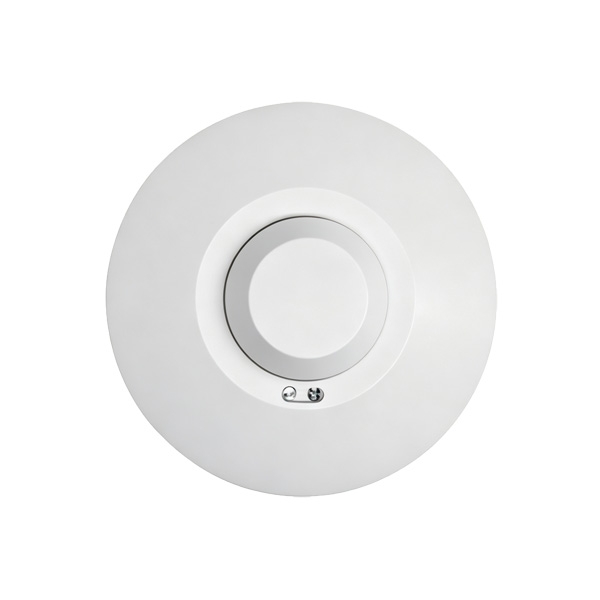

Smart Home Presence Sensor, 5.8GHz Microwave, 12-24V DC

The SUCH smart home presence sensor is a 5.8GHz microwave radar sensor designed for human presence and motion detection. Using Doppler-based sensing technology, it detects movement and stationary presence within a 2–10 m range and provides 360° ceiling-mounted coverage. Operating on 12–24V DC, it supports adjustable detection range, delay time, and photocontrol settings, with a weak-current dry-contact output for lighting systems and smart home controllers.

Note: This presence sensor detects subtle movements and stationary presence.

Feature

• 5.8GHz microwave radar sensing — Uses Doppler-based technology for human presence and motion detection.
• 2–10m adjustable detection range — Allows installers to set sensing distance according to room size and layout.

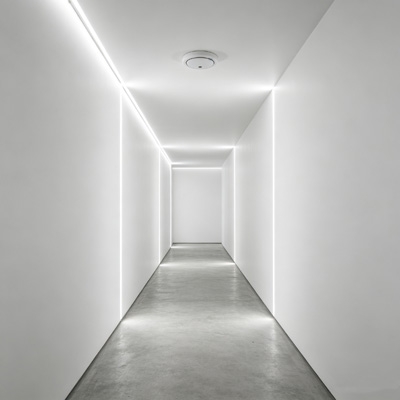

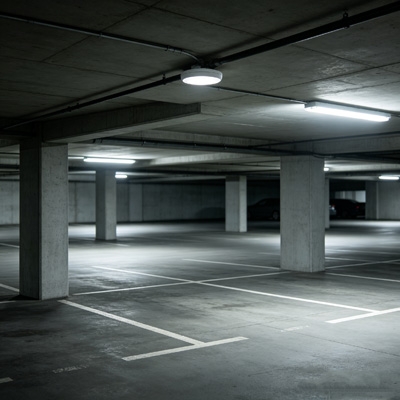

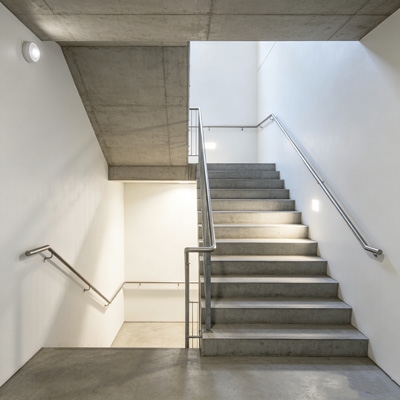

• 360° ceiling coverage — Provides wide-area detection for corridors, stairwells, entryways, and other indoor spaces.
• Adjustable settings — Supports detection range, delay time (5 s–5 min), and photocontrol (10–500 Lux) adjustment for different lighting control requirements.
• Weak-current dry-contact output — Enables connection with lighting systems and smart home automation controllers.
• 12–24V DC operation — Compatible with low-voltage lighting control systems.
• Flame-retardant PC housing — Supports operation from -35°C to +80°C.

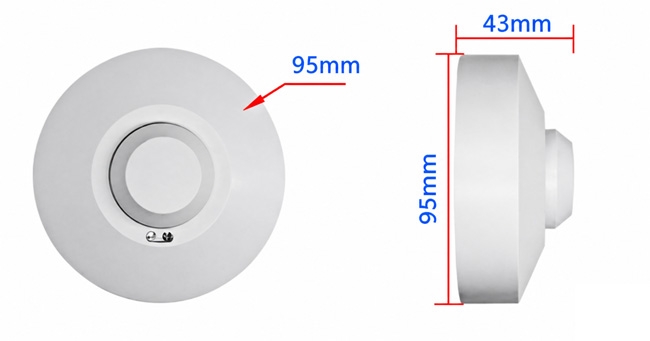

Dimension (Unit:mm)

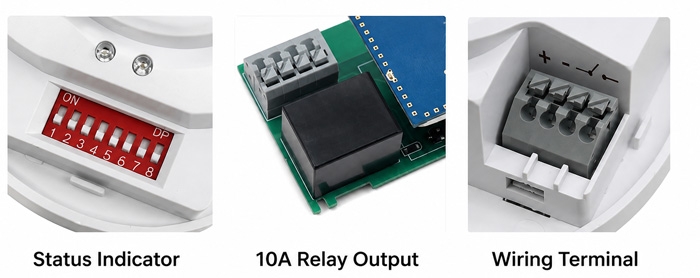

Details

• Status Indicator: Easy parameter configuration and mode selection.
• 10A Relay Output: Long-term stable control of various loads; no flicker, no dimming.
• Wiring Terminal: Reliable contact, simple operation, excellent conductivity.

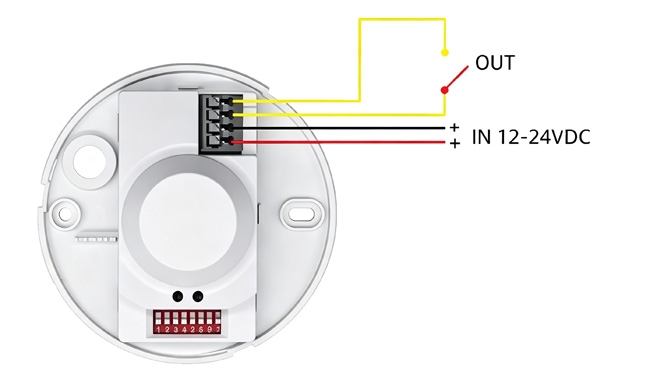

Wiring

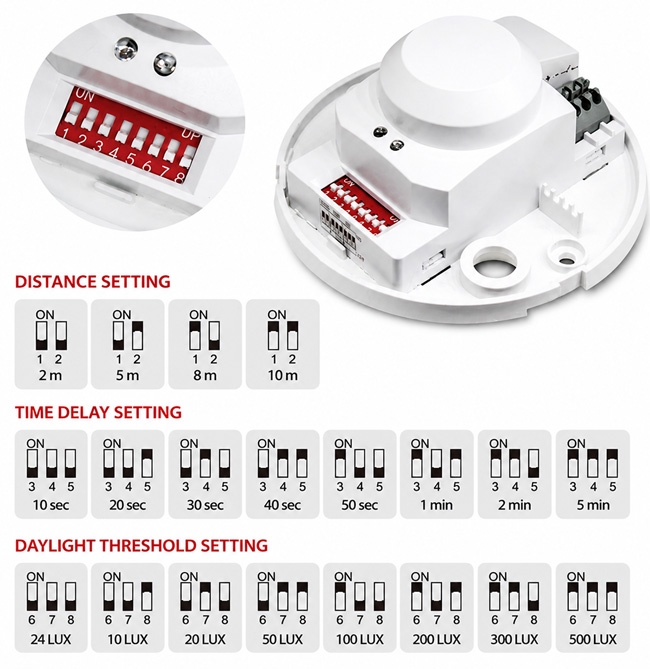

Settings

Note: Move the switch to th1e ON position (up) to activate.

Operation

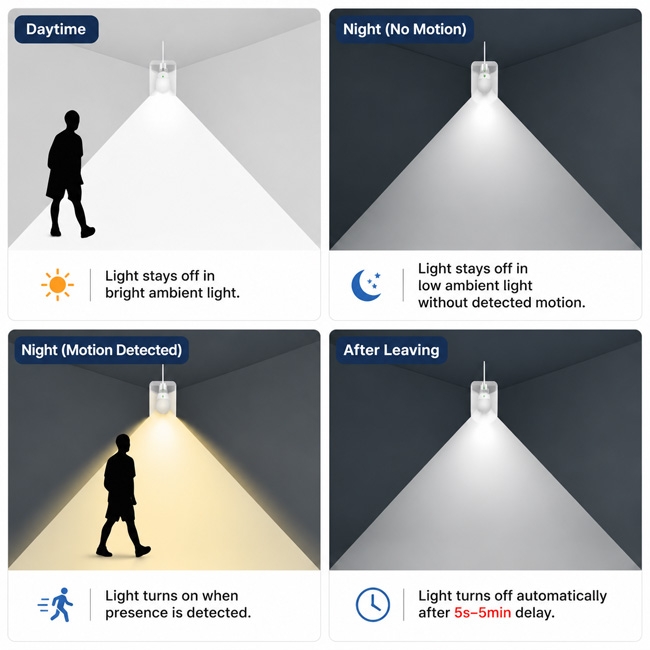

Lighting Control Process

• Daylight condition: The light remains off when ambient light is above the preset threshold.
• Presence detection: The sensor turns on the light when human presence is detected in low-light conditions.
• Continuous detection: The light stays on while a person remains within the detection range.
• Delay shutoff: The light turns off automatically after an adjustable delay time of 5 seconds to 5 minutes.
