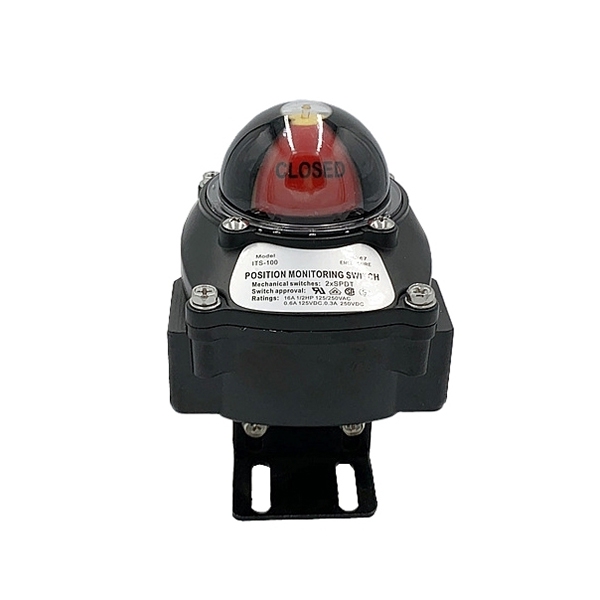

    Industrial Limit Switch Box, 250VAC/DC, 2-SPDT, IP67

    0 review(s) | Add your review
    SKU: SUCH-LMS-ITS100
    $76.83
    ● Voltage range: Max 250VAC/DC ● Rated current: DC 250V 0.3A ● Microswitch type: 2-SPDT ● Protection class: IP67
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Industrial limit switch box features a durable die-cast aluminum housing with a black polyester powder coating for excellent corrosion resistance and long service life. It is equipped with two SPDT mechanical microswitches, supports a voltage range up to 250VAC/DC. SUCH mechanical limit switch box includes a waterproof connector and cover, offers a wide operating temperature range from -20℃ to +60℃, and comes with an adjustable mounting bracket available in carbon steel or stainless steel for flexible installation.

    Feature

    • Die-cast aluminum housing with powder coating for durability and corrosion resistance.
    • Equipped with dual SPDT mechanical microswitches for stable and reliable control.
    • Features waterproof protection and an adjustable mounting structure for versatile industrial applications.

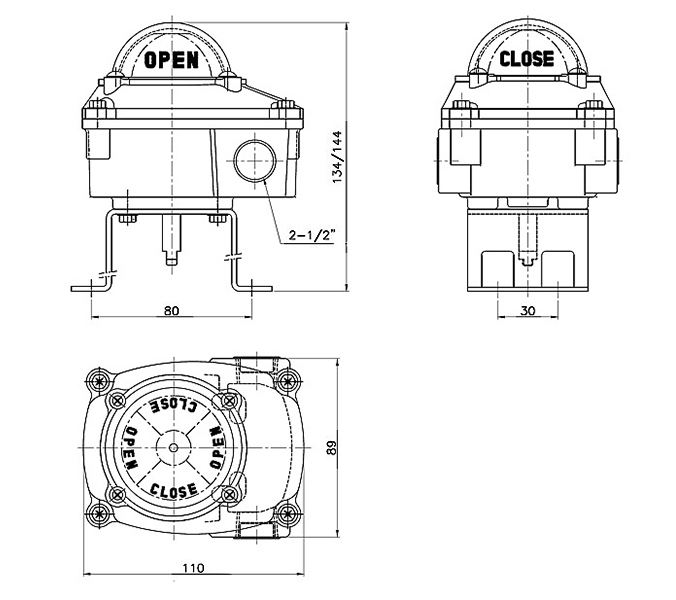

    Dimension (Unit: mm)

    Limit switch box dimension

    Specs
    Voltage Range Max 250VAC/DC
    Rated Current DC 250V 0.3A
    Microswitch Type 2-SPDT Mechanical
    Terminal Block 8-position terminal, Copper core
    Microswitch Contact (Optional) Copper / Silver contact microswitch
    Threaded Interface 2X G1/2" (M20*1.5)
    Position Indicator CLOSE (Red for Off), OPEN (Yellow for On)
    Cam Type Circular Cam, Red and yellow color
    Shell Material Die-cast aluminum
    Shell Coating Black, Polyester powder coating
    Bracket Style Adjustable mounting bracket
    Bracket Material (Optional) Carbon steel with powder coating / Stainless steel
    Accessories Waterproof junction and cover
    Temperature -20℃~+60℃
    Weight 1000g
    Protection Class IP67
    Application
    Warehousing

    Warehousing

    Automotive manufacturing

    Automotive Manufacturing

    Automatic line

    Automatic Line

    FAQ
    ❯

    A limit switch box is a device used to monitor and indicate the position of mechanical equipment, converting mechanical movement into electrical signals for control and feedback.

    ❯

    It is commonly used to control valve position, monitor actuator movement, and provide open/close position feedback in automated systems.

    ❯

    It operates by using internal switches that are triggered by the movement of a shaft or cam, generating signals when a specific position is reached.
