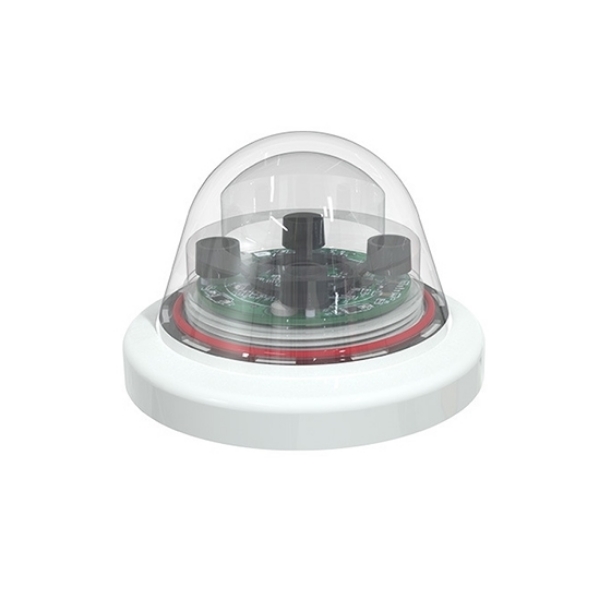

Optical Rain Sensor for Agriculture, RS485/Pulse

SKU: SUCH-RS-SN3001
$149.76
● Standard resolution of 0.1 mm. ● Maximum instantaneous rainfall rate 24 mm/min ● Pulse or RS485 outputs selectable ● Powered by 9–30V DC (RS485) or 10–30V DC (Pulse)
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH optical rain sensor uses the infrared light sensing principle and can measure rainfall with high precision. The standard resolution is 0.1mm and the maximum instantaneous rainfall can reach 24mm/min. It supports Pulse or RS485 interface. The power supply voltage range of RS485 output is 9~30V DC, and the power supply voltage of Pulse interface is 10~30V DC. It has an operating temperature range of -40℃ to 60℃, fast response and high stability, and is particularly suitable for meteorological monitoring, smart agriculture, hydrological monitoring and other scenarios.

Feature

  • Small and Light: Easily lifted with one hand, easy to carry and does not take up space.
  • Optical Sensing Measurement Principle: Uses optical sensing principle to measure rainfall, and uses infrared light as the measurement medium, with high measurement accuracy.
  • High-precision Optical Probe: Four high-precision optical probes are built in, and the measurement results are accurate and sensitive.
  • Automatic Interference Filtering: Uses a reliable filtering algorithm to effectively avoid interference from external light, fog, etc. on the detection of rainfall sensors.
  • Intelligent and Easy to Maintain: Easy to maintain design, not easy to be blocked by fallen leaves, and falling dust will not affect the accuracy of measurement

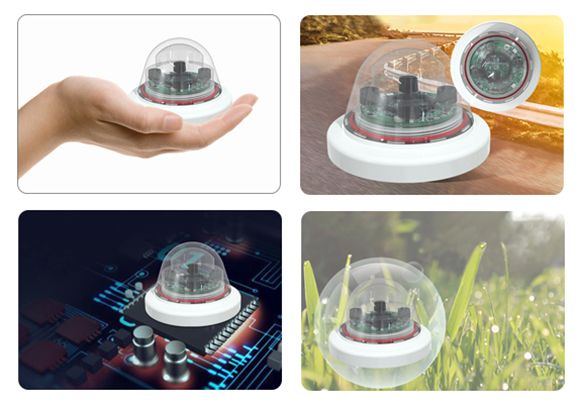

Optical rain sensor features

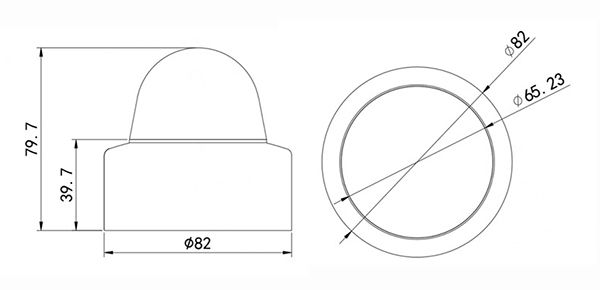

Dimension (Unit: mm)

Optical rain sensor dimension

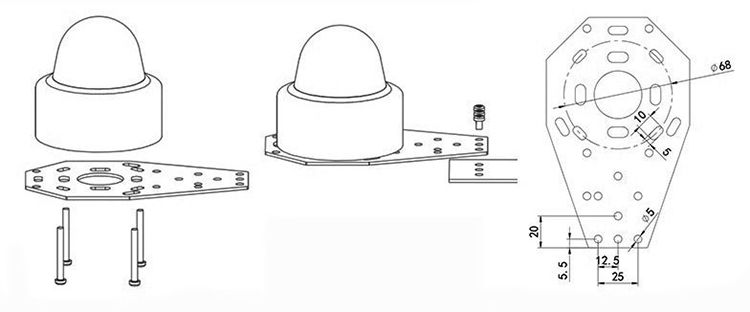

Installation and Commissioning

Optical rain sensor installation

① Firstly, you need to install the rain sensor in an open place, there should not be any obstruction around and above to cover it.

② Mount the optical rain sensor to the bracket in the accessory first, and fix the device and bracket with 4 M4*35 304 stainless steel screws and nuts.

③ Then install the bracket to the position to be installed (a Φ5 round hole needs to be opened at the location to be installed), bracket to be installed horizontally, and finally through three M4*10 304 stainless steel screws and nuts to fix the bracket and rainll sensor.

④ If the bracket is not used, the user can install according to the position and size of the copper studs according to their own installation method.

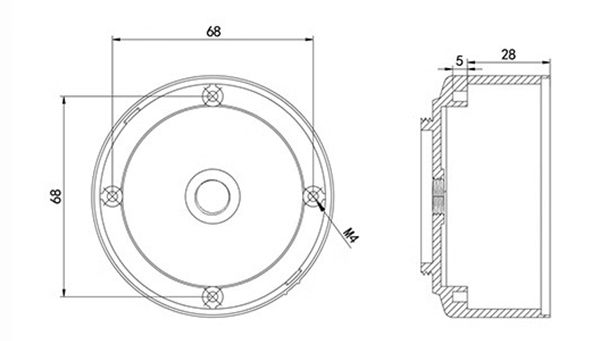

Optical rain sensor installation additional

Specs

RS485 Output

Output Method RS485 output
Diameter 6CM
Supply Voltage 9~30V DC
Power Consumption Less than 0.24W
Resolution Rainfall: Standard 0.1mm
Light: 1Lux
Typical Accuracy Rainfall: ±5%
Light: ±7% (25℃)
Maximum Instantaneous Rainfall 24mm/min
Light Intensity Range 0-200,000Lux
Operating Temperature -40~60℃
Operating Humidity 0~99%RH (non-condensing)
Operating Pressure Range Standard atmospheric pressure ± 10%
Long-term Stability Illumination: ≤5%/y


Pulse Output

Supply Voltage 10~30V DC
Output Method Dry contact pulse output
Diameter 6 CM
Power Consumption Less than 0.24W (12V DC, current less than 20mA)
Resolution Standard 0.1mm
Typical Accuracy ±5%
Maximum Instantaneous Rainfall 24mm/min
Operating Temperature -40~60℃
Operating Humidity 0~99% (no condensation)
Operating Pressure Range Standard atmospheric pressure ±10%
Withstand Voltage ≤30VDC
Withstand Current ≤1A
Application

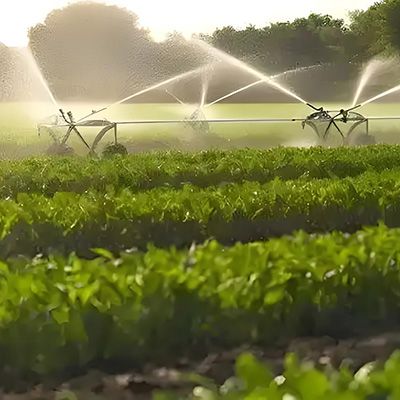

Smart irrigation system

Smart Irrigation System

Ship navigation

Ship Navigation

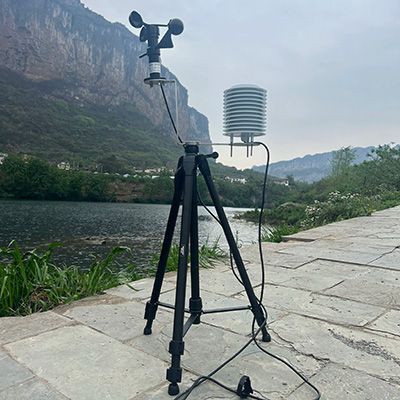

Mobile weather station

mobile Weather Station

FAQ

The optical rain gauge uses an infrared beam as a measuring medium, and determines the rainfall intensity and accumulated rainfall by detecting the refraction or occlusion changes caused by raindrops passing through the beam.

The sensor supports an operating temperature range of -40℃ to +60℃, and is suitable for a variety of harsh environments, such as high-cold mountainous areas, tropical humid areas, etc.

Compared with traditional mechanical rain sensors such as tipping buckets, optical rain gauges have no moving parts, are not affected by mechanical wear, have faster response speed, more sensitive measurement, and higher long-term stability. In addition, it is easy to carry, small in size, and easy to move.
