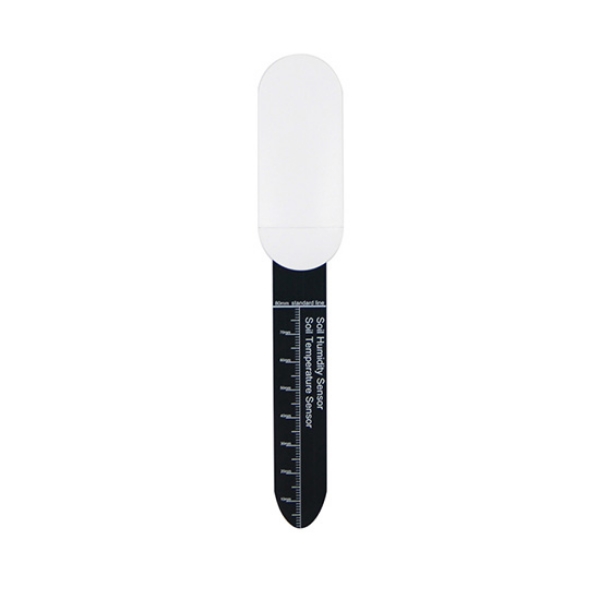

Outdoor Soil Moisture Temperature Sensor with Smart Gateway

The outdoor soil moisture sensor can accurately monitor soil moisture (0%~100%) and ambient temperature (-20°C~60°C). The moisture sensor has a moisture measurement error range of ±10% and a temperature measurement error range of ±2°C, ensuring the reliability of data in agricultural applications. High-quality moisture sensors must be used in conjunction with a smart gateway, with the set sold together, to enable seamless data transmission and form a complete solution for efficient farm management.

Feature

• Zigbee wireless signal transmission allows temperature and humidity data to be viewed via a mobile app.
• After the soil moisture sensor has been inserted into the soil for a long period of time, historical data curves can be viewed.
• The humidity sensor is battery-powered, has ultra-low power consumption, and a long standby time.

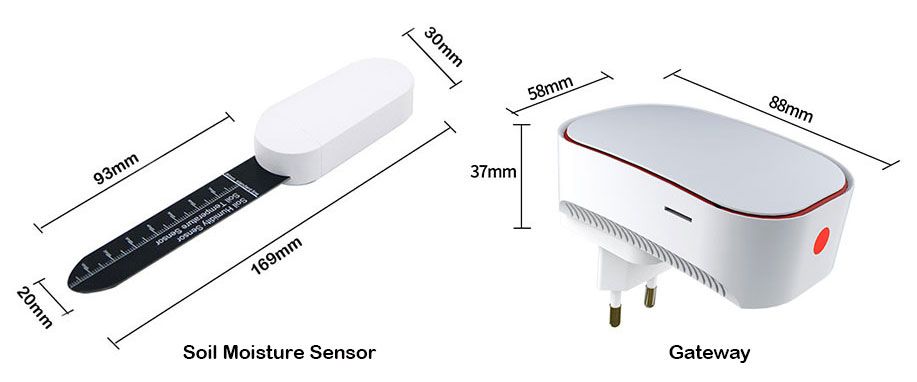

Dimension (Unit:mm)

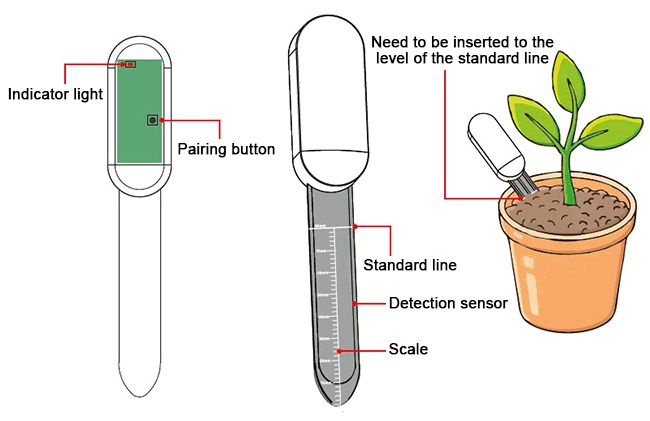

Outdoor Soil Moisture Sensor Detail

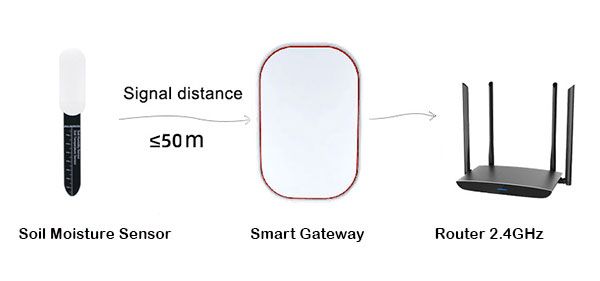

Usage Methods

Installation and Operation Instructions

• After powering on and pairing with the gateway, the device will detect soil temperature and humidity data every 2 minutes for the first 20 minutes and upload the data to the app. After 20 minutes, it will detect soil temperature and humidity every hour and upload the data to the app (the sensor must remain inserted in the soil for an extended period).
• In the mobile app, locate the smart gateway and add the sub-device.
• Press and hold the “Network Pairing Button” on the soil humidity sensor for 6–12 seconds until the device screen displays a flashing red pairing light.
• The mobile app will automatically detect the moisture sensor and add it to the list.
• Note: The moisture sensor is a low-power device. Press the button to enter pairing mode. Please perform this operation within 2 minutes of powering on the device. After 2 minutes, the device button will lock (can be reset by removing and reinserting the battery).

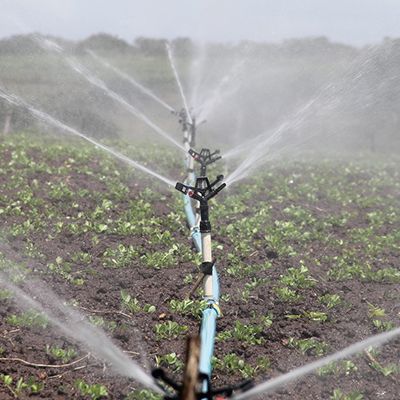

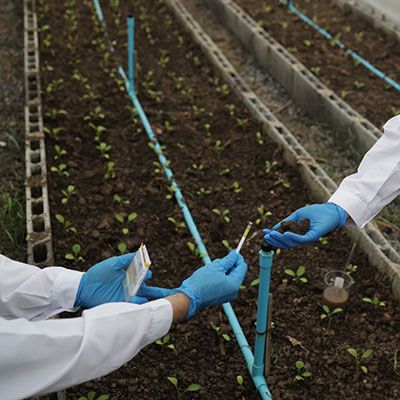

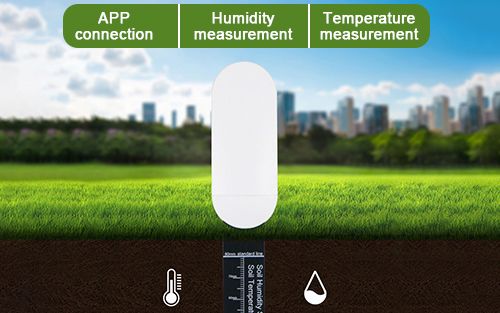

Function/ Use Cases
