    Find a Sensor A - Z

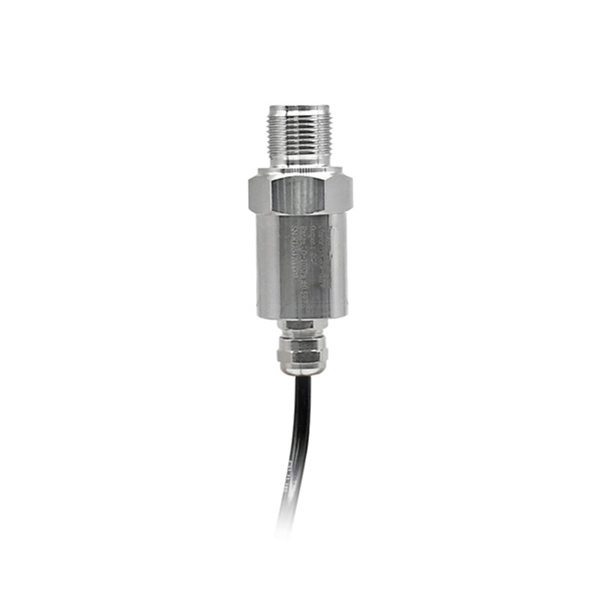

    Picture of Temperature and Pressure Transmitter, -100~0kPa to 0~1.6MPa, -20~80℃ Picture of Temperature and Pressure Transmitter, -100~0kPa to 0~1.6MPa, -20~80℃ Picture of Temperature and Pressure Transmitter, -100~0kPa to 0~1.6MPa, -20~80℃ Picture of Temperature and Pressure Transmitter, -100~0kPa to 0~1.6MPa, -20~80℃

    Temperature and Pressure Transmitter, -100~0kPa to 0~1.6MPa, -20~80℃

    0 review(s) | Add your review
    SKU: SUCH-PRES-APD
    $91.85
    ● Measuring range: -100~0kPa to 0~1.6MPa ● Temp & pressure version: Temp range: -20~80°C ● Drift response time: ≤50ms ● Enclosure protection: IP67
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH high-quality pressure transmitter, is a low-power, low-voltage pressure measurement device. With a measuring range from -100~0 kPa to 0~1.6 MPa, a response time of ≤50 ms, and a resolution of ≤14 bits. It is suitable for oil, water, gas, and other media compatible with stainless steel, with an operating temperature range of -40 to 85℃ and an IP67 protection rating. The pressure transmitter features a durable SUS304 enclosure and is widely used in petrochemical processing, smart buildings, automotive and transportation applications and process control, and environmental monitoring. A temperature and pressure version is also available, supporting temperature measurement from -20 to 80℃.

    Feature

    • Low Power Consumption: Designed for low-power operation in pressure monitoring applications.
    • High Stability: Provides stable and reliable pressure measurement in demanding environments.
    • Linear Signal Output: Converts pressure changes into a linear electrical signal for convenient data acquisition.
    • Temperature Compensation: Helps maintain stable measurement performance under changing temperature conditions.

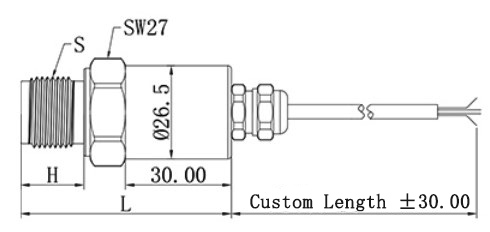

    Dimension (Unit: mm)

    Pressure and temperature transmitter dimension

    Thread type (S) Length (H) Total length (L)
    G1/2 18 61.5
    G1/4 15 58.5
    G1/8 15 58.5
    M20*1.5 18 61.5


    Electrical installation

    The power should be disconnected during installation.

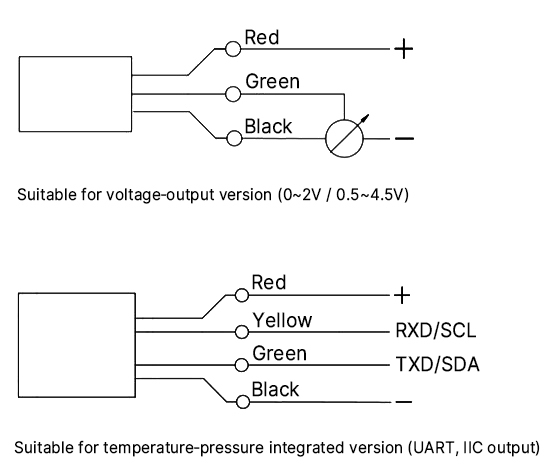

    Pressure and temperature transmitter electrical installation



    Specs
    Power Supply Voltage DC5V (0.5~4.5V output, power consumption less than 3mA)
    DC3.2V~5V (UART output, IIC output, sleep power consumption 15uA, operating power consumption approx. 2.5mA)
    Measuring Medium Oil, water, gas and other media compatible with stainless steel
    Linearity ±0.25%FS
    Nonlinearity ±0.25%FS
    Repeatability ±0.2%FS
    Long-Term Stability ±0.2%FS/year
    Zero Point Temperature ±0.3%FS/℃
    Sensitivity Temperature Drift ±0.3%FS/℃
    Drift Response Time ≤50ms
    Resolution ≤14 bits
    Medium Temperature -40~85℃
    Operating Temperature -40~85℃
    Enclosure Protection IP67
    Overload Capacity 150%FS
    Enclosure Material SUS304
    Material of Metal Parts in Contact with Gas SUS304
    Weight Approx. 185g
    Pressure Type Gasmeter pressure
    Temperature & Pressure Version Temperature Range: -20 to 80°C
    Temperature Accuracy ±2.5%FS
    Application
    Water supply network

    Water Supply Network

    Petrochemicals

    Petrochemicals

    Power energy

    Power Energy

    FAQ
    ❯

    Depending on the materials and construction, a pressure transmitter can be used with gases, liquids, oil, water, and other compatible media. Always confirm media compatibility before installation.

    ❯

    Choose an installation location that is convenient for operation and maintenance. Where appropriate, the transmitter can be connected to the measurement pipeline through a valve to facilitate installation, isolation, and maintenance.

    ❯

    Use a suitable wrench to tighten the transmitter at the hexagonal section of the process connection. Avoid applying torque directly to the transmitter housing. The installation location should also be kept as far as practical from strong vibration and heat sources.
