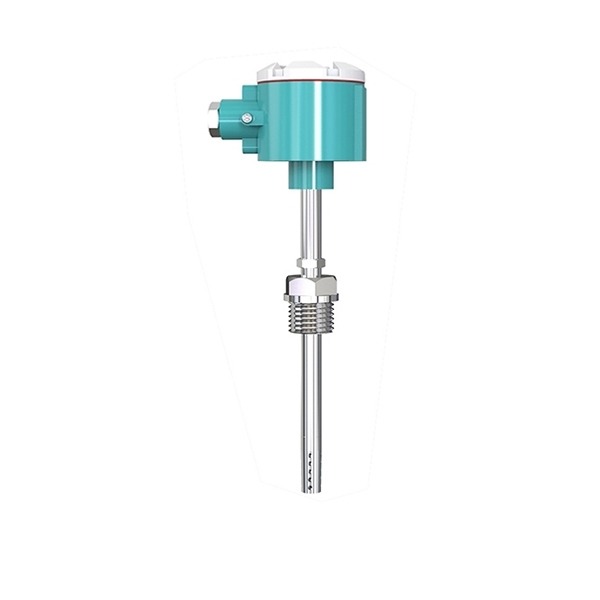

Temp and Humidity Sensor for Duct, 316L Stainless Steel

Temp and humidity sensor for Duct, 316L Stainless Steel, is designed for accurate temperature and humidity monitoring in industrial ventilation and HVAC systems. SUCH humidity sensor features a durable metal duct design with IP65 protection, supporting RS485, 4-20mA, 0-5V, and 0-10V output signals. Powered by DC 7–30V, it operates within -40°C to +80°C (optional up to +120°C) and 0~100%RH. Built with strong anti-interference EMC components and a G1/2 threaded mount, it ensures reliable, stable, and easy installation. Free 485 configuration software allows flexible parameter setup via computer.

Feature

• Metal Duct Design: Temp and humidity sensor built with a durable metal housing for enhanced protection and long-term stability in harsh environments.
• Dustproof and Waterproof: IP65-rated protection ensures reliable operation against dust, moisture, and other contaminants.
• High Temperature Resistance: Standard temperature range of -40°C to +80°C, upgradeable to -40°C to +120°C for high-temperature applications.
• Strong Anti-Interference Capability: Equipped with industrial-grade EMC anti-interference components for stable performance in electromagnetic environments.
• Wide DC Power Supply: Supports DC wide-voltage input for flexible and reliable power options.
• G1/2 Threaded Installation: Features a standard G1/2 threaded design for secure and easy installation.
• Free Configuration Software: Includes “485 Parameter Configuration” software for reading sensor parameters and modifying device ID and address via computer.

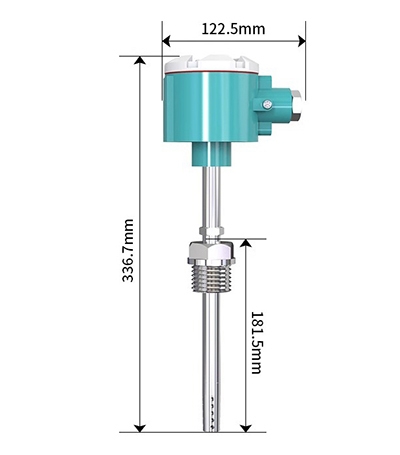

Dimension

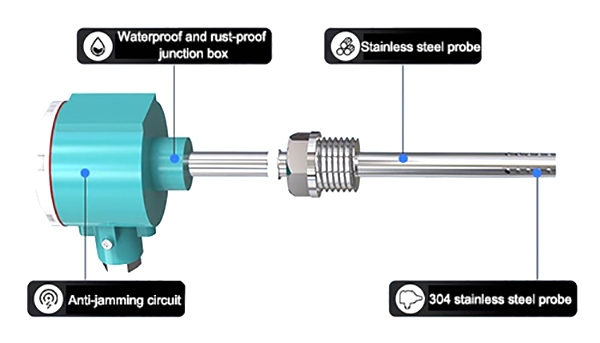

Detail

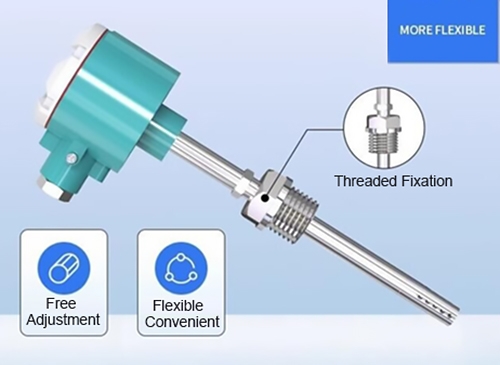

Adjustable Threaded Mount

Allows flexible adjustment of insertion depth for easy and precise installation in sealed or pressurized environments.

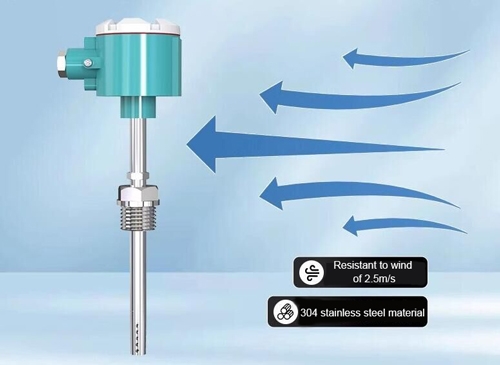

Sensitive and Durable Probe

Made of 304 stainless steel, the probe responds quickly to humidity changes in airflow up to 2.5 m/s, ensuring accurate and stable measurements.
