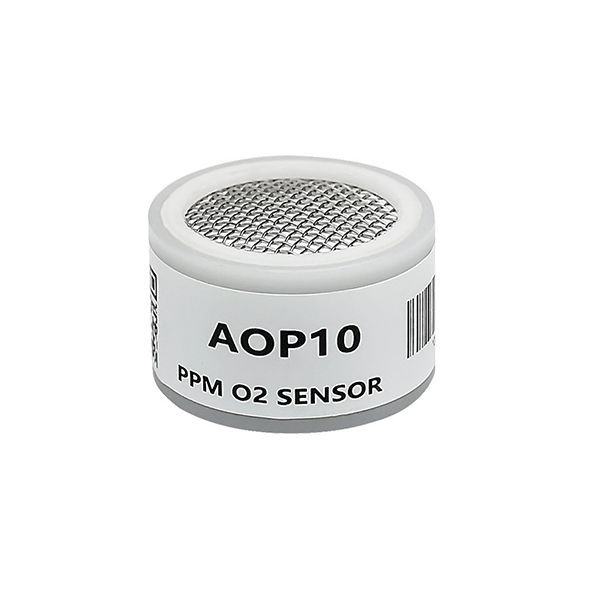

Trace Oxygen Sensor, 0-10ppm to 0-10000ppm

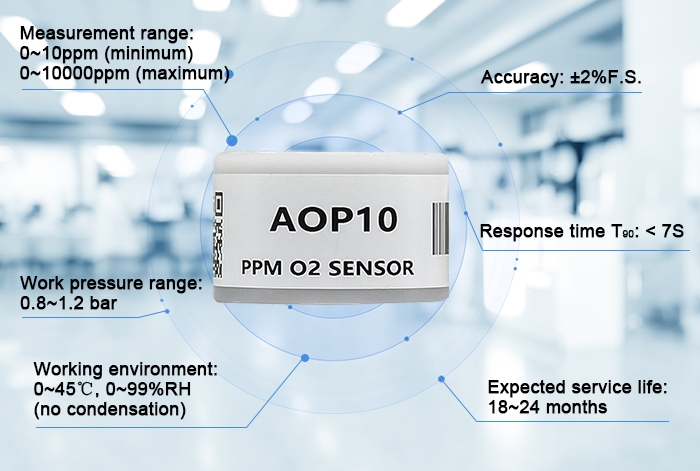

Professional trace oxygen sensors for sale, accurately measuring oxygen from 0-10ppm/0-10000ppm. Utilizing shared-voltage electrochemical technology, they deliver ultra-fast response times (T₉₀<7s). These PPM oxygen sensors feature high precision at ±2% F.S. and low drift <1% per month. The sensor housing incorporates a moisture-resistant, durable HDPE casing, while gold-plated connectors ensure stable connections.

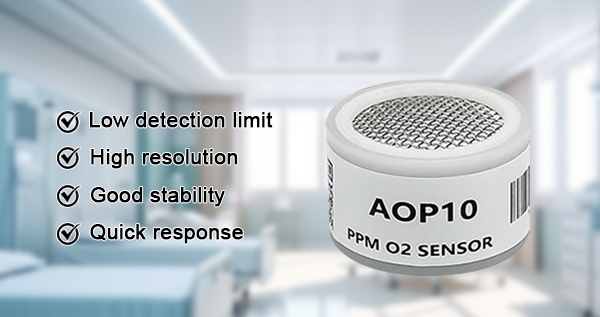

Feature

• The SUCH ppm oxygen sensor employs shared voltage electrochemical technology to detect trace oxygen levels from 0 to 10ppm, 0-10000ppm, delivering high-precision analysis.
• With a T₉₀ response time under 7 seconds, it offers rapid response to enhance monitoring efficiency, making it suitable for laboratory, industrial, and medical gas detection applications.
• The sensor operates stably within 0–45°C, 0.8–1.2 bar, and 0–99% RH environments, ensuring consistent performance under varying conditions.
• Featuring an HDPE housing and gold-plated electrode design, it offers corrosion resistance and interference immunity with a lifespan of up to 24 months.

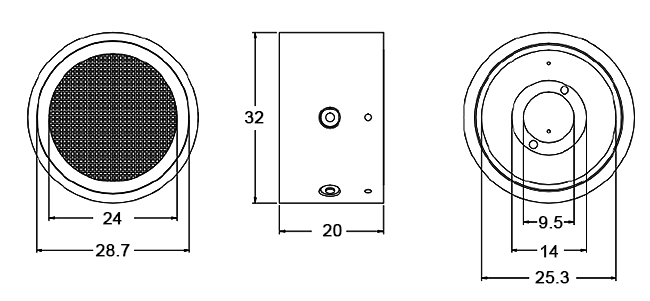

Dimension (unit: mm)

Detail

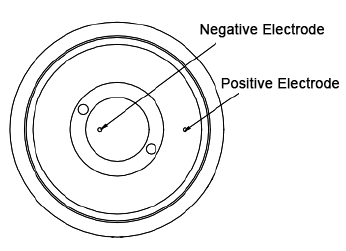

Electrode Definition

The interface of the trace oxygen sensor employs gold-plated concentric rings, with the inner ring serving as the negative terminal and the outer ring as the positive terminal.

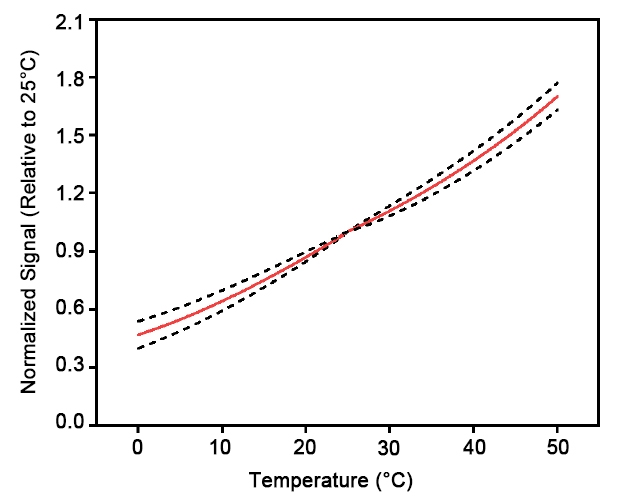

Temperature Curve Characteristics Diagram

The chart illustrates the normalized signal curve of the trace oxygen sensor's output current (relative to 25°C) at different temperatures, along with minimum and maximum deviations. The sensor maintains stable output within the 0°C to 50°C temperature range, demonstrating excellent temperature characteristics.
