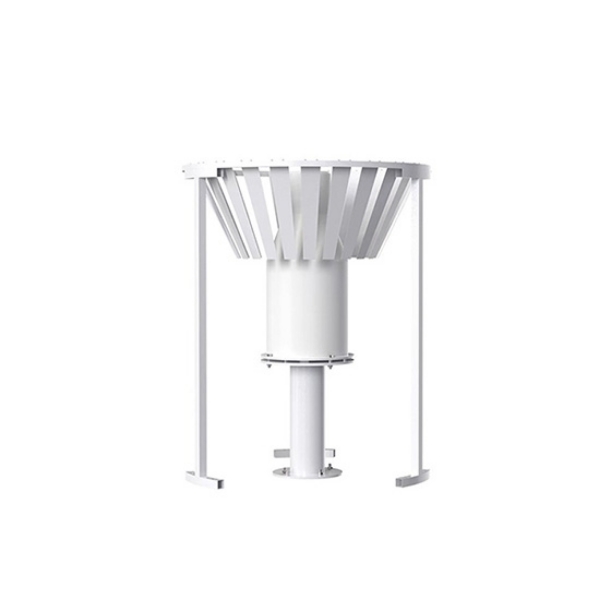

Automatic Weighing Bucket Rain Gauge Sensor, 0-1000mm

SKU: SUCH-RS-SN3008
$9,539.12
● Resolution of 0.1 mm, high precision weighing ● RS485 or pulse output, easy system integration ● 12V DC power supply, power consumption 0.15W ● Temperature resistance of the transmitter element -35~65℃
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Factory price automatic weighing tipping bucket rain gauge sensor adopts high-precision weighing technology, with a measurement range of 0-1000mm and a resolution of up to 0.1mm. SUCH weighing tipping bucket rain gauge sensor supports RS485 or pulse signal output and is suitable for a variety of meteorological and environmental monitoring scenarios. Weighing rain sensor has a low power consumption mode of operation, the collection system can be powered by solar energy. It can automatically measure solid, liquid and solid-liquid mixed precipitation and snow in a long-term and stable manner and store relevant measurement data.

Feature

  • Suitable for all-weather rainfall and snowfall observation in harsh environments.
  • Adopts a modular design with standardized components, making installation and maintenance simple.
  • The rain sensor features a durable cast structure with low maintenance cost.
  • It can monitor the amount of rain and snow and has strong all-weather working capabilities.

Dimension (Unit: mm)

Weighing bucket rain sensor dimension

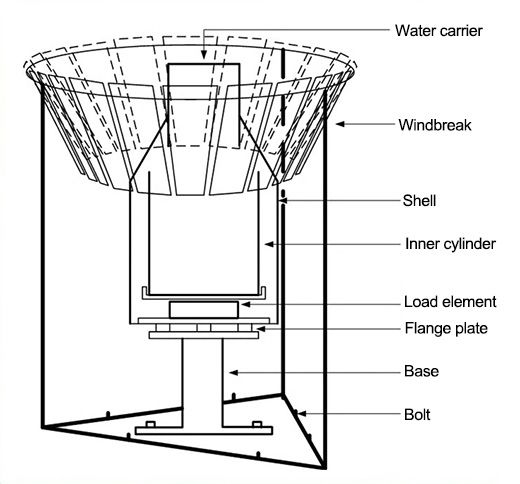

Details

Weighing bucket rain sensor detail

Specs
Power Supply 12V DC
Output RS485/pulse (optional)
Power Consumption 0.15W (DC12V)
Range 0~1000mm
Resolution 0.1mm
Inside Diameter φ200±0.6mm
Tolerance ±0.2mm, ≤10mm
±2% for ≤10mm
Transmitter Element Temperature Resistance -35°C~65°C
Transmitter Element Humidity Resistance 0%RH~95%RH (non-condensing)
Application

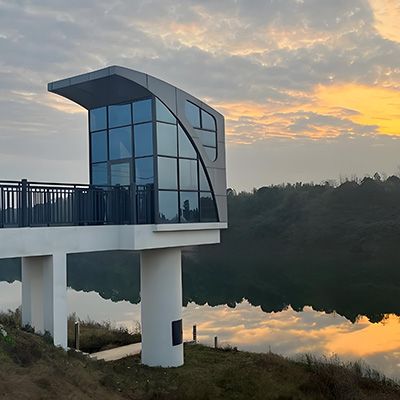

Hydrological station

Hydrological Station

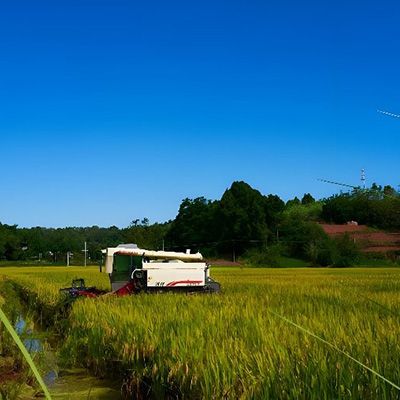

Agriculture and forestry

Agriculture and Forestry

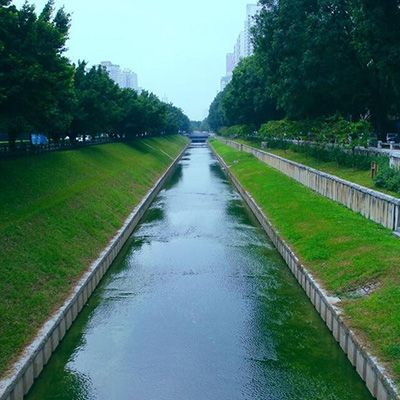

Dam and open channel

Dam and Open Channel

FAQ

The sensor supports two modes of output: RS485 (Modbus protocol) and pulse signal. Users can choose to purchase according to the actual application scenario.

The resolution of this rain sensor is 0.1mm, which can accurately record subtle changes in precipitation and is suitable for high-precision monitoring needs.

No. The sensor adopts modular design and weather-resistant materials, with a stable structure and low maintenance frequency, suitable for long-term unattended operation.
