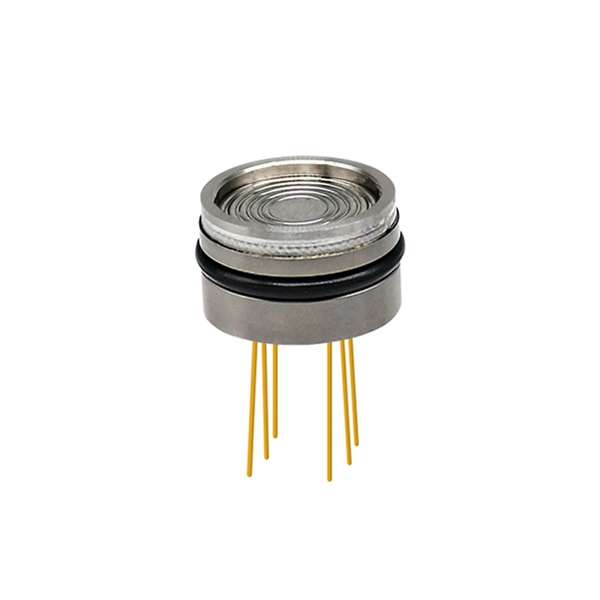

Diffused Silicon Absolute Pressure Sensor, 0.7-2.5MPa, Analog Output

Name: Diffused Silicon Absolute Pressure Sensor, 0.7-2.5MPa, Analog Output
Brand: Such.com
SKU: SUCH-PRES-ADS11
Price: 69.83 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-PRES-ADS11

$69.83

● Power supply voltage: 2~10V ● Operating current: 0.4~2mA ● Range: 0.7~2.5MPa ● Output method: Analog output

Measuring Range *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH diffused silicon absolute pressure sensor features a wide pressure range of 0.7-2.5 MPa and a durable 316L stainless steel housing with a fully solid-state welded construction, providing excellent resistance to environmental corrosion. It operates on a 2-10 V power supply with an operating current of 0.4-2 mA, offers a fast response time of <5ms, supports an operating temperature range of -40 to 85℃. The diffused silicon sensor is suitable for pressure measurement of gases and liquids in industrial applications, as well as process control, instrumentation, gas and liquid pressure control systems, transportation equipment, and environmental monitoring.

Feature

Industry-Standard 19 mm Diameter: Industry-standard size for convenient installation.
316L Stainless Steel: Corrosion-resistant construction for demanding environments.
Silicone Oil Filling: High-stability filling medium for reliable sensing performance.
2× Overload Capacity: Supports overload up to twice the measurement range.
Fast Response: Quick sensing with strong interference resistance.

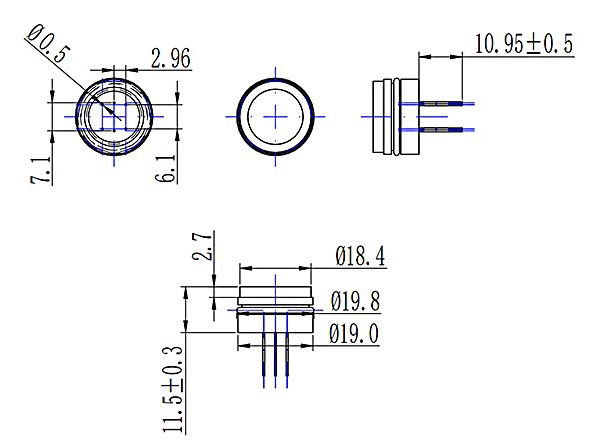

Dimension (Unit: mm)

Absolute pressure sensor dimension

Interface Definition

Absolute pressure sensor interface

Serial Number	Name	Pin Description
1	V+	Input power positive
2	S-	Output signal negative
3	V-	Input power negative
4	V-	Input power negative
5	S+	Output signal positive
6	NC	Reserved pin

Specs

Power Supply Voltage	2~10V
Operating Current	0.4~2mA
Range	0.7~2.5MPa
Nonlinearity	±0.3%FS
Repeatability	±0.3%FS
Pressure Hysteresis	±0.3%FS
Overload Pressure	2x
Zero-Point Output	±10mV
Full-Scale Output	50~90mV
Response Time	<5ms
Input Impedance	5.2KΩ
Insulation Resistance	100MΩ
Operating Temperature	-40~85℃
Storage Temperature	-40~85℃
Output Method	Analog Output

Application

Automotive Industry

Medical Industry

Industrial Equipment

FAQ

Q1: What is a diffused silicon absolute pressure sensor? ❯

A diffused silicon absolute pressure sensor measures pressure relative to a vacuum reference and converts the detected pressure into an electrical signal.

Q2: How does an absolute pressure sensor work? ❯

The sensor uses a pressure-sensitive element to detect changes in pressure. The mechanical change is converted into an electrical signal for measurement and monitoring.

Q3: What is the difference between absolute pressure and gauge pressure? ❯

Absolute pressure is measured relative to a vacuum reference, while gauge pressure is measured relative to the surrounding atmospheric pressure.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Ryan Holloway | Date: 9/16/2026 8:07 AM

Works well for pressure monitoring

I’ve been using this absolute pressure sensor on a test rig for a few weeks now. I needed a reading that wasn’t affected by changes in the surrounding air pressure, and it’s been working well for that. Took a couple tries to get everything set up, but after that I haven’t really had to mess with it. The readings have looked good so far.
