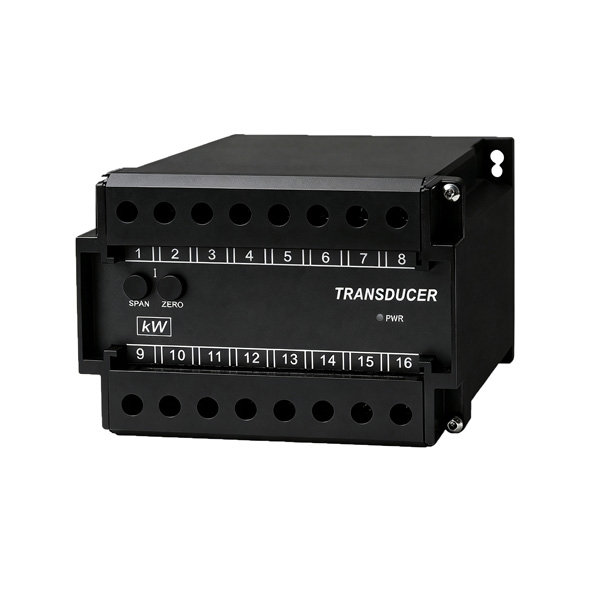

Active Power Transducer, 3-Phase 3/4 Wire

Name: Active Power Transducer, 3-Phase 3/4 Wire
Brand: Such.com
SKU: SUCH-PT-HDBP
Price: 205.23 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-PT-HDBP

$205.23

● Input voltage 57.7–600V AC ● Input current 1A/5A/10A/20A ● Accuracy class 0.2/0.5 ● Output signal 4–20mA/RS485

Measurement *
Accuracy *
Standard Range *
Input Signal *
Output Channel *
Output Signal *
Power Supply *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The SUCH active power transducer measures active power in 3-phase 3-wire and 3-phase 4-wire AC systems and converts the measurement into standardized voltage, current, or RS485 signals for monitoring and control. It supports AC voltage inputs from 57.7V to 600V and current inputs of 1A, 5A, 10A, or 20A, with an accuracy class of 0.2 or 0.5 and a response time of ≤400ms. It is suitable for switchgear panels, power distribution systems, SCADA monitoring, and industrial energy management applications.

Note: This power transducer measures active power in 3-phase 3-wire or 3-phase 4-wire AC systems.

Feature

3-phase 3-wire / 3-phase 4-wire measurement — supports common three-phase wiring configurations for flexible integration into AC power systems.
AC input 57.7–600V voltage, 1A/5A/10A/20A current — accommodates different three-phase system ratings with configurable input options.
0.2 or 0.5 accuracy class — provides precise active power data for power monitoring, metering, and load analysis.
Response time ≤400ms — responds quickly to changes in measured power for continuous monitoring and control.
0–10V, 0–5V, 1–5V, 0–1mA, 0–10mA, 0–20mA, 4–20mA, or RS485 output — connects measured power data directly to PLCs, DCS, SCADA systems, meters, and data acquisition equipment.
Input, output, and power supply isolation — separates measurement and control circuits to reduce signal interference and improve system reliability.
ABS fireproof enclosure, AC 2kV dielectric strength — provides enclosure protection and dielectric withstand for installation in electrical control panels.
DC 12/24V, AC/DC 110/220V, or 2-wire loop power — accommodates different auxiliary power configurations used in industrial control systems.

Dimension (Unit:mm)

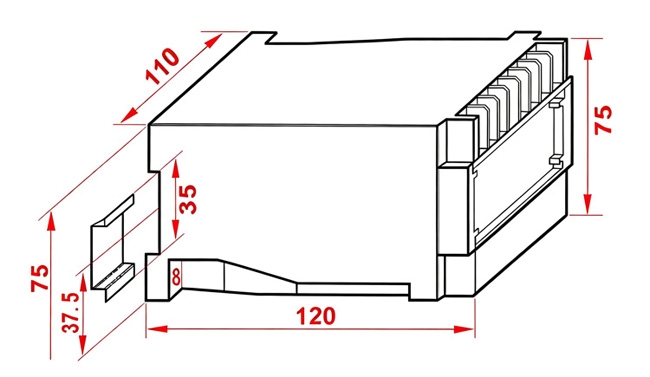

Active power transducer dimension diagram

Wiring

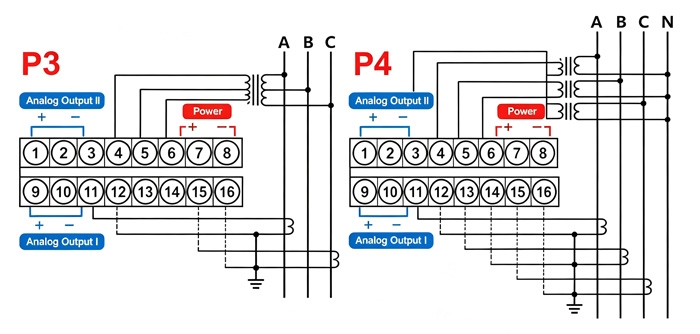

Active power transducer wiring diagram

Calibration Instructions

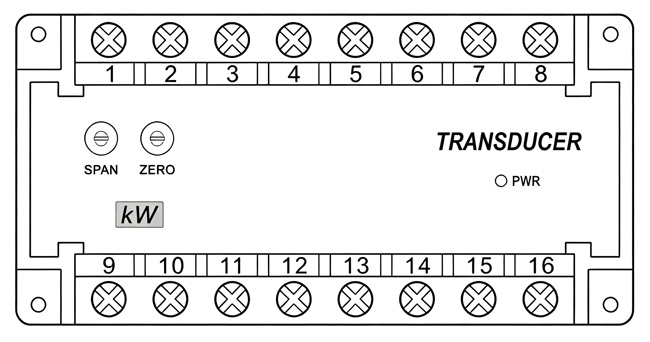

Active power transducer calibration instructions

PWR — Power indicator light

ZERO — Zero calibration potentiometer

SPAN — Full-scale (span) calibration potentiometer

Note: Calibration potentiometers are for professional instrument calibration only. Adjustment by unauthorized personnel is strictly prohibited.

Calibration Steps

01 — Zero Calibration
Input: 0 signal
Adjust ZERO until output is 0 mA or 4 mA
02 — Span Calibration
Input: Rated signal
Adjust SPAN until output reaches the specified value, such as 20 mA

Specs

Measurement	3-phase 3-wire or 3-phase 4-wire (optional)
Input	AC voltage: 57.7V, 100V, 220V, 380V, 450V, 600V, customizable AC current: 1A, 5A, 10A, 20A, customizable (optional)
Standard Range	0–173.2W, 0–866W, 0–3000W, 0–±173.2W, 0–±866W (optional)
Accuracy	0.2, 0.5 (optional)
Output Channel	1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage	0–10V, 0–5V, 1–5V (load resistance = input voltage/10mA DC)
Output Current	0–1mA, 0–10mA, 0–20mA, 4–20mA (load resistance = 10V DC/output current)
Other Output	RS485, customizable
Response Time	≤400ms
Allowable Overload	Voltage × 1.2 times the nominal value continuous Current × 1.2 times the nominal value continuous Current × 10 times the nominal value for 10s
Auxiliary Power Supply	DC 12V, DC 24V, AC 220V, DC 220V, AC 110V, DC 110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Output Ripple	≤0.5% RO peak
Operating Temperature & Humidity	0–50°C / less than 80% relative humidity (non-condensing)
Storage Temperature & Humidity	−20–70°C / less than 70% relative humidity (non-condensing)
Dielectric Strength	AC 2kVrms/min
Insulation Resistance	>100MΩ at DC 500V
Power Consumption	DC about 3W, AC about 4VA
Housing Material	ABS fireproof material
Weight	About 450g
Dimensions	120 (L) × 110 (W) × 75 (H) mm
Installation Method	35mm standard rail or fixed to the cabinet

Application

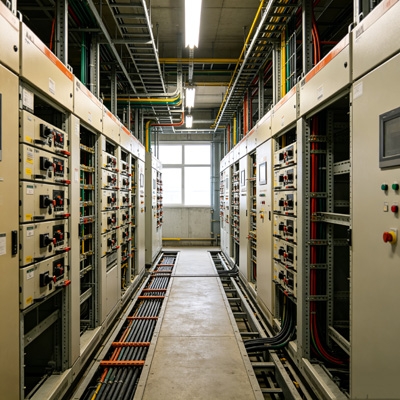

Power Distribution

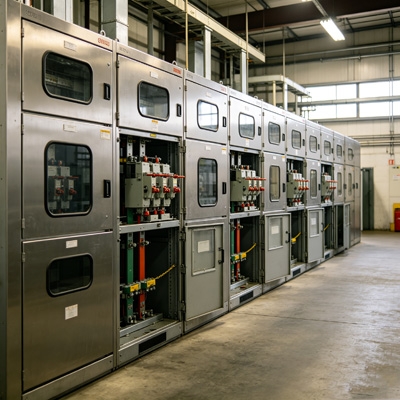

Switchgear

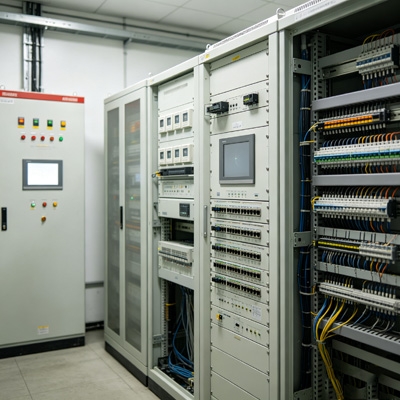

Energy Management

FAQ

Q1: What does an active power transducer measure? ❯

An active power transducer measures active power in AC systems and converts the measured value into a standardized voltage, current, or RS485 signal for monitoring and control.

Q2: Can an active power transducer measure 3-phase 3-wire and 3-phase 4-wire systems? ❯

Yes. The active power transducer supports both 3-phase 3-wire and 3-phase 4-wire AC measurement configurations.

Q3: What output options are available for an active power transducer? ❯

Available options include voltage, current, and RS485 outputs for connection to PLC, DCS, SCADA, meters, and data acquisition equipment.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Evan Bates | Date: 9/21/2026 9:18 AM

Pretty happy with this active power transducer

I replaced an older power transducer in one of our control cabinets and used the existing CTs. I spent some time checking the CT direction and phase wiring before connecting the new unit. The first readings looked right, so I left it running and checked it again later under a different load. Everything has stayed pretty consistent.
