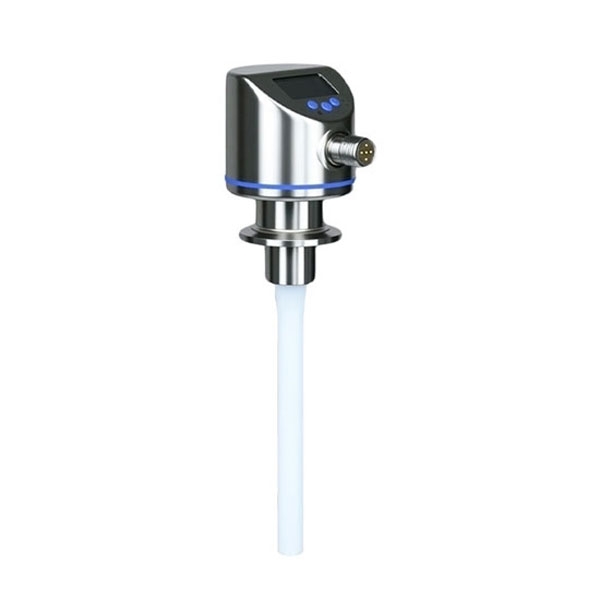

Digital Capacitance Type Level Transmitter for Solid/Liquid

This digital capacitance level transmitter is a capacitive level sensor for continuous measurement of liquids, solids, and slurries in industrial tanks or vessels. It features a 1–1500mm range, 0.5% FS accuracy, stainless steel probe, anti-interference design, and 4–20mA, NPN, or PNP output. Suitable for petroleum, chemical processing, metallurgy, wastewater treatment, silos, storage tanks, and harsh industrial environments.

Feature

• Excellent anti-interference performance: The digital capacitive level transmitter maintains stable and accurate readings even under demanding industrial conditions.
• True direct measurement: It features a straightforward design with high dependability and minimal maintenance requirements.
• Versatile output options: This capacitance level sensor offers multiple signal types, making it easy to integrate into a variety of control systems.
• Precision-built and durable: It is constructed from corrosion-resistant stainless steel using high-accuracy machining to ensure long service life.
• Broad application range: Liquid level sensor works reliably with liquids, solids, slurries, and viscous media, as well as in environments with steam, dust, or contamination.
• Zero blind area: It provides full-range level detection in tanks and vessels without missing measurement zones.
• Advanced digital processing: Adjustable damping, zero, and span settings allow smoother signals and more stable measurement results.

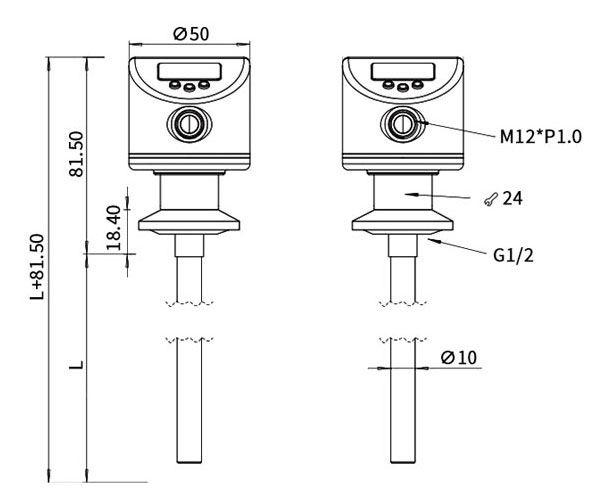

Dimension (Unit: mm)

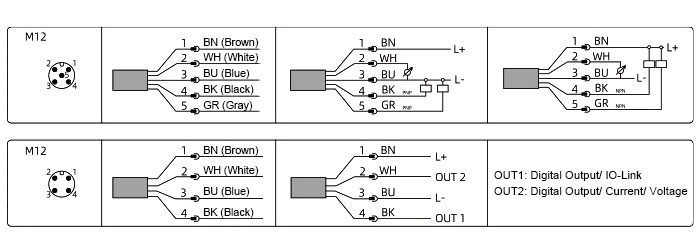

Connection
