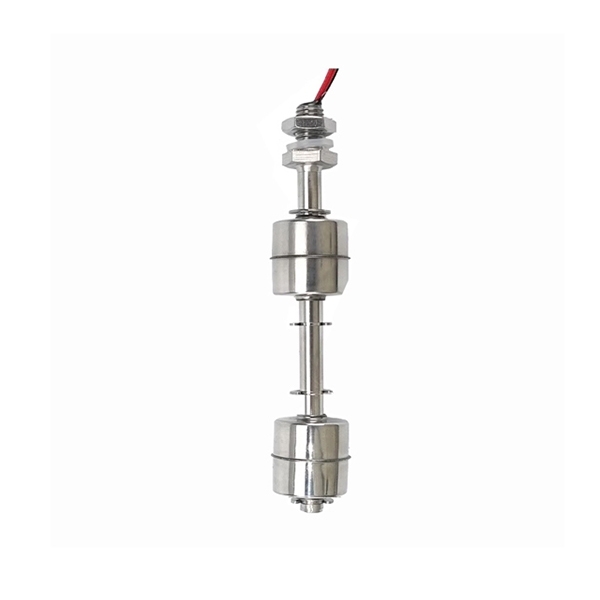

Dual Ball Stainless Steel Vertical Float Level Switch, 2NO/2NC

Name: Dual Ball Stainless Steel Vertical Float Level Switch, 2NO/2NC
Brand: Such.com
SKU: SUCH-VFS-ES120102
Price: 59.86 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-VFS-ES120102

$59.86

● Voltage 110V/220V ● Rod length 120mm ● Working pressure <1.0Mpa ● Max. power 10VA/50VA

Contact Form *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Dual-ball float level switch is made of durable stainless steel, features a vertical mounting design, and incorporates a reed switch and dual floats for precise position monitoring. It has 2NO/2NC contact configurations, a rated power of 50W, and selectable voltage (0-110V/0-220V). SUCH ball float level switch is ideal for use in water dispensers, air conditioning systems, humidifiers, bathroom fixtures, vending machines, oil tanks, and chemical liquid control.

Feature

Compact Design: The compact size allows easy installation in space-constrained applications.
Stable Performance: Ensures consistent and reliable liquid level detection.
Easy Installation: Simple structure enables quick installation and reduced maintenance.
Magnetic Reed Switch: Provides fast response and dependable switching performance.
Ring Magnet: Enhances sensing accuracy for improved control.
Premium Stainless Steel: Offers excellent corrosion resistance and long service life.

Dual float switch feature

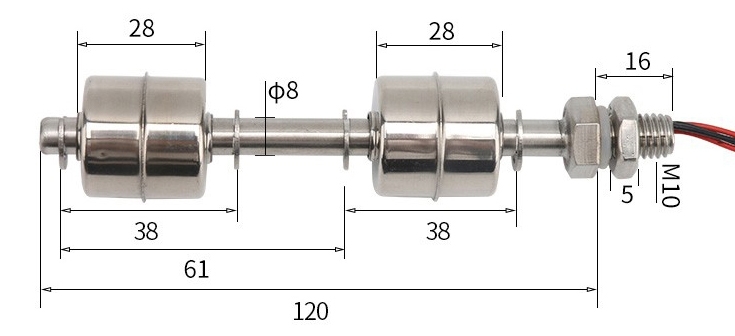

Dimension (Unit: mm)

Dual float switch dimension

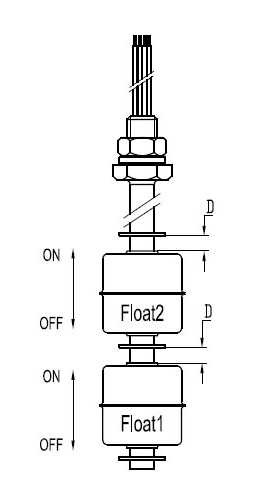

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.

Movement explanation of dual ball float switch

Specs

Model	SUCH-ES12010-2-1A1	SUCH-ES12010-2-2A1
Voltage	0-110V	0-220V
Rod Length	120mm	120mm
Material	304 Stainless Steel	304 Stainless Steel
Max. Power	10VA	50VA
Working Pressure	<1.0Mpa	<1.0Mpa
Max. Switching Current	0.5A	1.5A
Min. Breakdown Voltage	110V AC/DC	300V AC/DC
Max. Contact Resistance	100mΩ	100mΩ
Temperature Range	-30~120℃	-30~120℃
Number of Wires	4 Wires	4 Wires
Wire Length	400mm	400mm
Specific Gravity of Medium	>0.9g/cm³	>0.9g/cm³

Application

Water Tank

Water Pool

Water Tower

FAQ

Q1: Are there any handling precautions for the float liquid level switch? ❯

Yes. Handle the switch gently, as it contains a dry reed switch inside that can be fragile if subjected to strong impact.

Q2: What environments should be avoided during operation? ❯

Avoid environments with strong vibration, magnetic fields, or prolonged exposure to temperatures exceeding the recommended limits, as these conditions may affect performance and lifespan.

Q3: Does the float switch require regular maintenance? ❯

Yes. Clean the float switch regularly to remove dirt or buildup. The cleaning frequency should be determined based on the type of liquid and operating conditions.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: James Thornton | Date: 7/17/2026 6:15 AM

this dual float switch did the job well

bought a dual float switch to replace a single-level switch that was not giving enough control. the size was suitable for my tank setup, and mounting it was not complicated. I checked the on/off points a few times before putting it into regular use. it is a simple device, but it has been reliable for keeping the water level under control.
