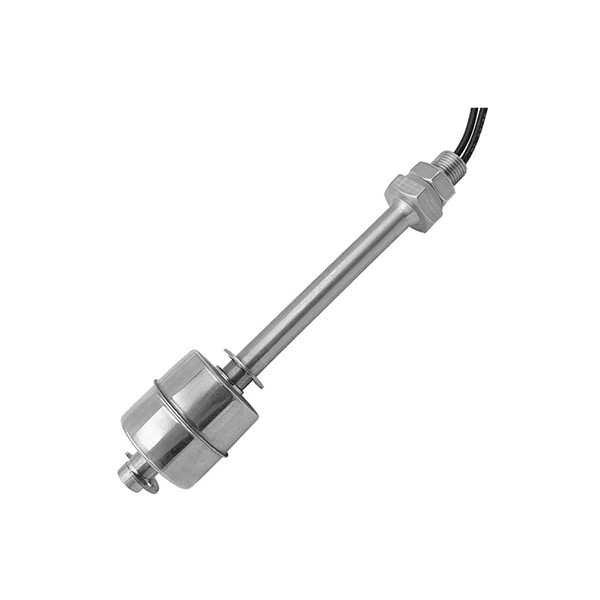

Vertical Mount Float Switch Level Sensor, Stainless Steel

The stainless-steel float level switch is a vertical mounted level sensor made of high-quality stainless steel. SUCH float level sensor features excellent corrosion resistance and mechanical strength, making it suitable for level detection and control of water, oil, and various industrial liquids. The vertical float switch can operate stably in environments ranging from -40℃ to +125℃, with a maximum pressure resistance of 0.7 MPa and a withstand voltage of 1000V/10S. The switch terminals have a tensile strength of 3.6kg, suitable for long-term level monitoring needs in various storage tanks and equipment.

Feature

• Stable and Reliable: Utilizes a high-quality reed switch with a simple structure, low failure rate, and accurate and stable level detection.
• Robust and Durable: Made of stainless steel, it is corrosion-resistant, high-strength, has a long service life, and offers reliable quality.
• Compact and Practical: Lightweight and easy to install, it offers excellent value and is suitable for various level monitoring scenarios.

Dimension (Unit: mm)

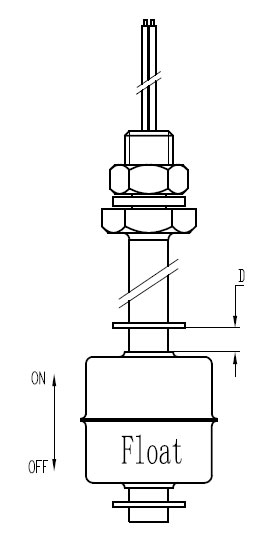

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.
