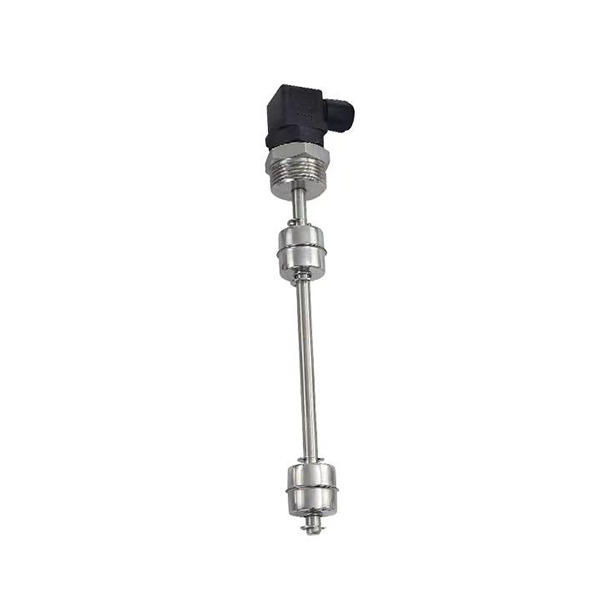

Dual Ball Vertical Magnetic Float Level Switch, 100~1000mm

Dual-ball vertical magnetic float switch features a vertical dual-float design, with a measurement length selectable from 100 to 1000 mm, and is equipped with a Hirschmann connector. SUCH magnetic float switch has a maximum power of 50VA, a maximum switching voltage of 220V AC/DC, a maximum switching current of 1.5A, and a maximum contact resistance of 100mΩ. It is suitable for environments ranging from -30℃ to +120℃. Both the floats and the body are made of SU304 stainless steel, offering corrosion resistance and high strength, making it suitable for level monitoring and control of water, oil, and general industrial liquids.

Feature

• Highly impact-resistant, with stable performance, ensuring reliable operation in harsh environments.
• Made of high-quality stainless steel, offering excellent corrosion resistance and an exceptionally long service life.
• Equipped with Hirschmann connectors for secure wiring, easy installation, and durability.
• Dustproof and waterproof, with superior sealing performance, suitable for water tanks, water towers, ponds, drainage systems, and other liquid level control applications.

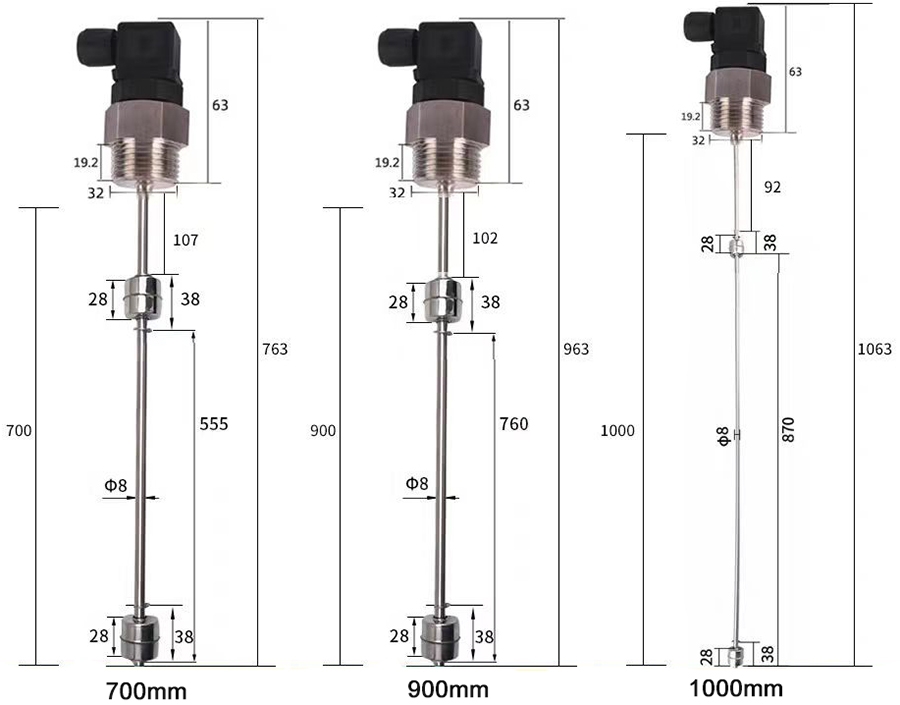

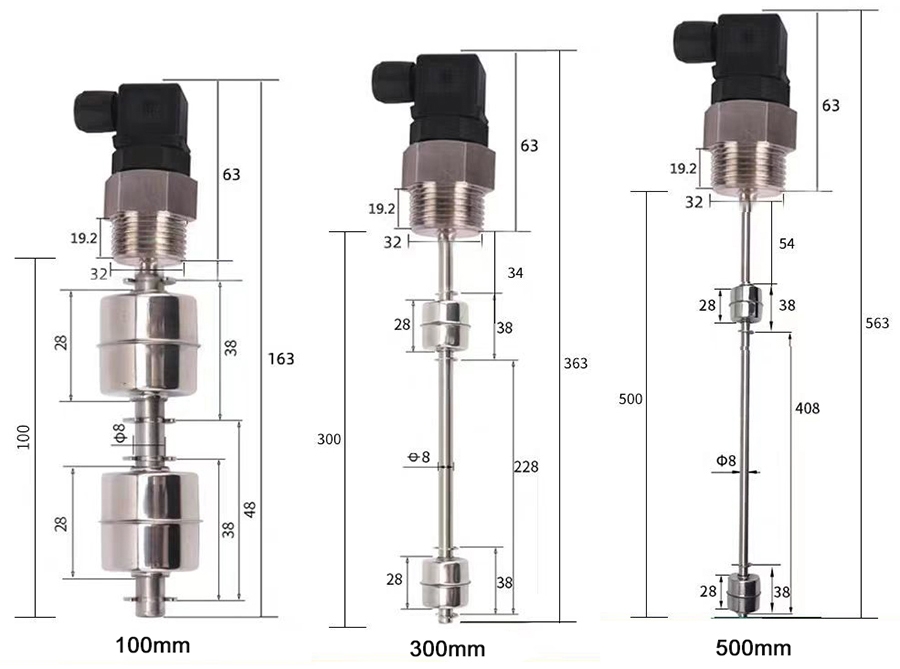

Dimension (Unit: mm)

Working Principle

Working principle: A magnet is used to sense the reed switch.

When the liquid level is low, the float falls, and the reed switch is in the open state (normally open). When the liquid level is low, the float falls, and the reed switch is in the closed state (normally closed).
