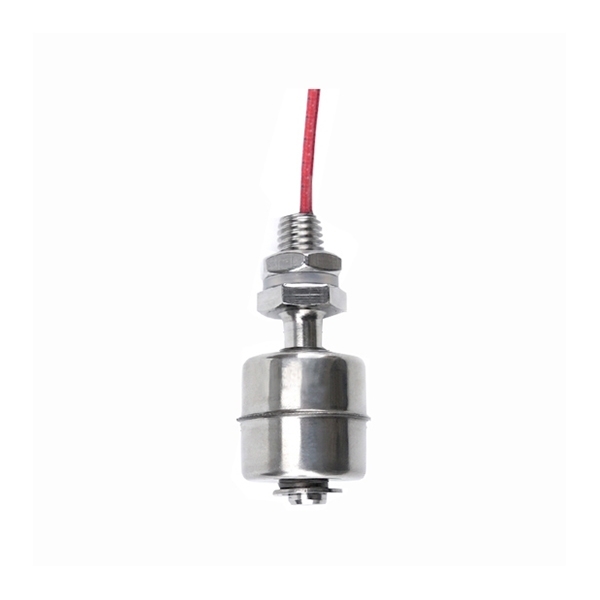

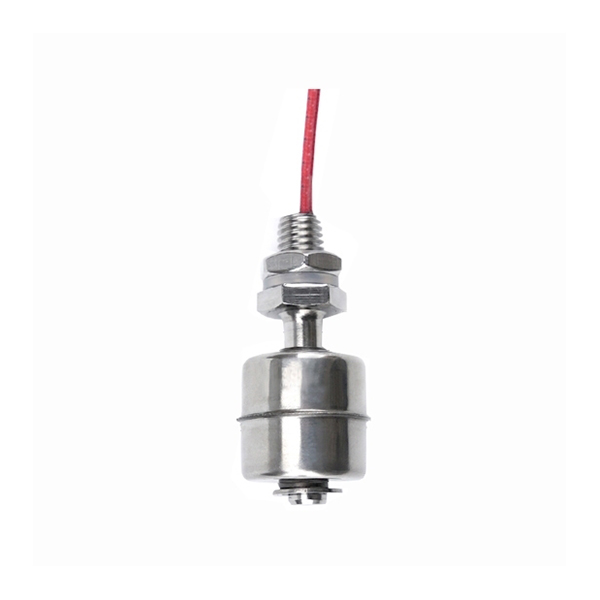

Stainless Steel/Plastic Vertical Float Liquid Level Sensor, 110/220V

SUCH float liquid level switch is a compact level detection switch consisting of a reed switch and a float. As the liquid level rises or falls, the float triggers the reed switch, thereby monitoring and controlling the liquid level. The float switch is available in SPST 1NO/1NC contact configurations, with a maximum contact power of 50W, and can be made of stainless steel or plastic to suit different media and operating environments. The float level switch is easy to install, highly responsive, and widely applicable to water tanks, fountains, air conditioning systems, humidifiers, bathroom fixtures, vending machines, and level control for oil tanks and chemical liquids.

Feature

• Stainless Steel Material: Features a premium retaining ring design, ideal for humid environments, corrosion-resistant, and not prone to rust.
• Laser Seamless Welding: Manufactured with advanced laser welding equipment, ensuring clean, precise welds and a strong, reliable structure.
• Epoxy Resin Sealing: Excellent sealing performance effectively prevents foreign matter from entering and protects internal components from damage.

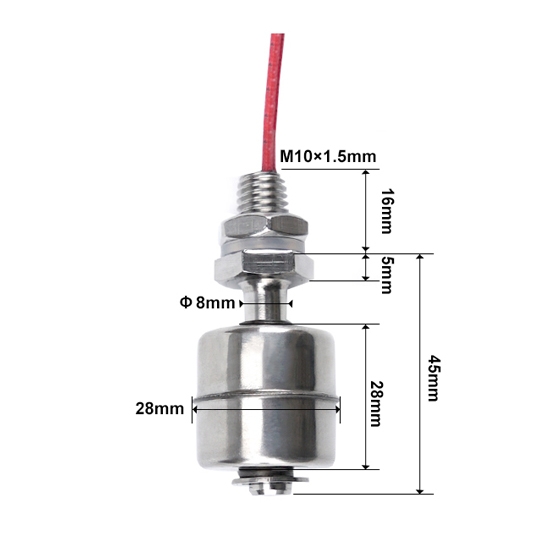

Stainless Steel Float Switch Dimension (Unit: mm)

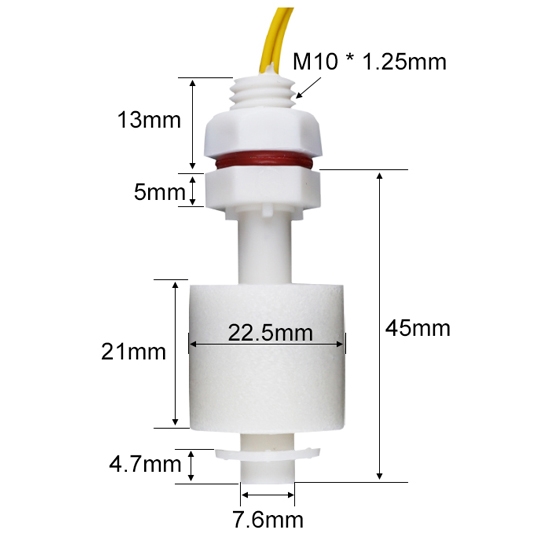

Plastic Float Switch Dimension (Unit: mm)

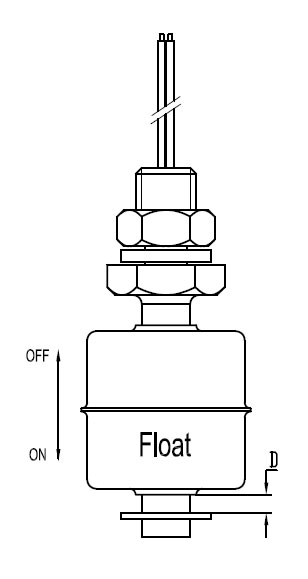

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.
