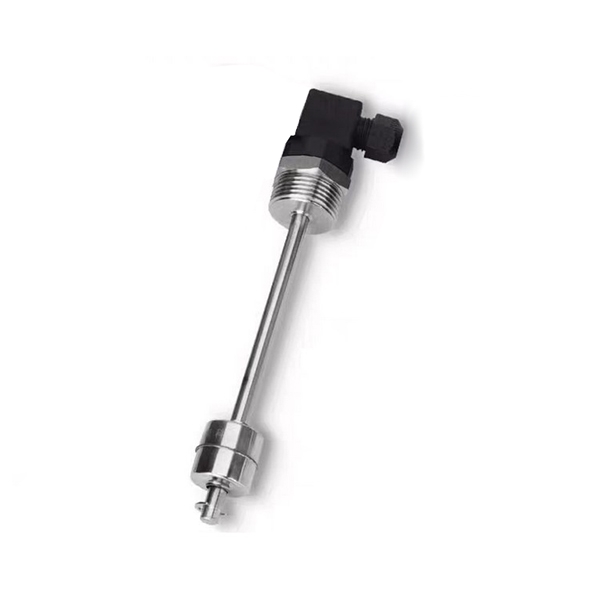

Vertical Magnetic Float Switch with Hirschmann Connector, 220V

Magnetic float level switch features a single SU304 stainless steel float ball and is equipped with a Hirschmann connector. It offers a maximum power of 50VA, maximum switching voltage of 220V AC/DC, and maximum switching current of 1.5A, with a low contact resistance of 100mΩ. Operating within a wide temperature range of -30°C to +120°C, it is suitable for use in water towers, aquaculture ponds, drainage tanks, water tanks, water heaters, and other liquid level control systems.

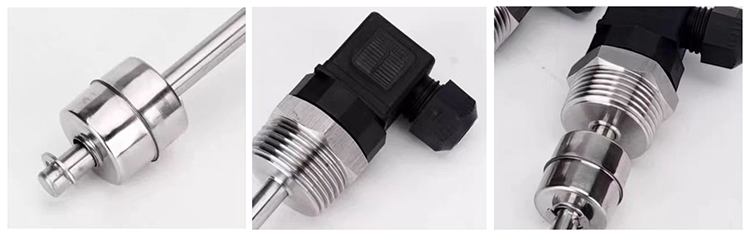

Feature

• Highly impact-resistant, with stable performance, ensuring reliable operation in harsh environments.
• Made of high-quality stainless steel, offering excellent corrosion resistance and an exceptionally long service life.
• Equipped with Hirschmann connectors for secure wiring, easy installation, and durability.
• Dustproof and waterproof, with superior sealing performance, suitable for water tanks, water towers, ponds, drainage systems, and other liquid level control applications.

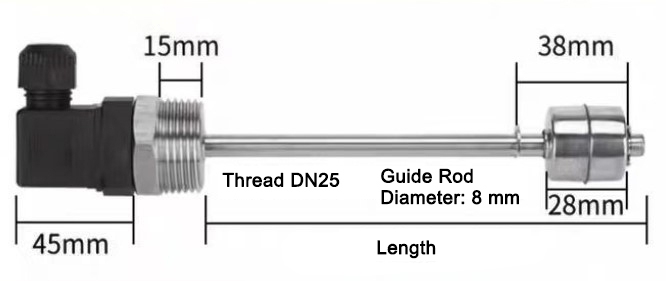

Dimension (Unit: mm)

Working Principle

Working principle: A magnet is used to sense the reed switch.

When the liquid level is low, the float falls, and the reed switch is in the open state (normally open). When the liquid level is low, the float falls, and the reed switch is in the closed state (normally closed).
