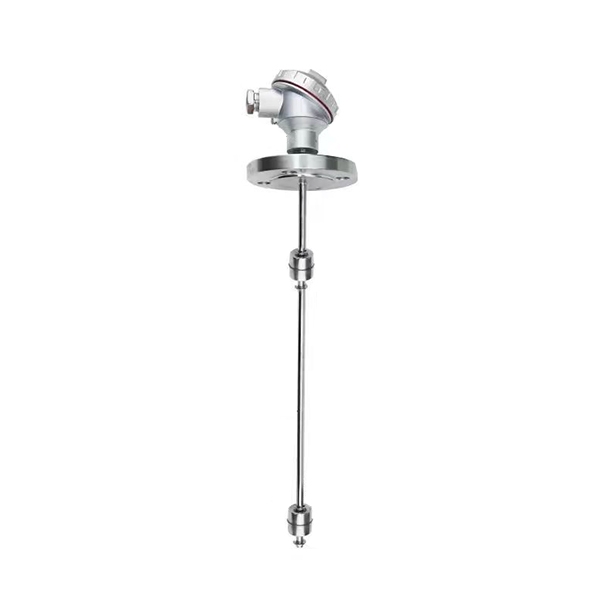

Dual Ball Vertical Metal Float Level Switch for Water Pump

Name: Dual Ball Vertical Metal Float Level Switch for Water Pump
Brand: Such.com
SKU: SUCH-VFS-DUAL
Price: 125.69 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-VFS-DUAL

$125.69

● Maximum power 50VA ● Maximum switching voltage 220V AC/DC ● Maximum switching current 1.5A ● Maximum contact resistance 100mΩ

Length *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH metal float switch features a float and body made of SU304 stainless steel, ensuring corrosion resistance and durability. It is suitable for level control of low-viscosity liquids such as water, oil, and oil solutions. Maximum power is 50VA, maximum switching voltage is 220V AC/DC, maximum switching current is 1.5A, maximum withstand voltage is 300V AC/DC, maximum contact resistance is 100mΩ, and the operating temperature range is -30℃ to +120℃. It is widely used in water tanks, oil tanks, and various level control equipment.

Feature

Highly impact-resistant, with stable performance, ensuring reliable operation in harsh environments.
Made of high-quality stainless steel, offering excellent corrosion resistance and an exceptionally long service life.
Dustproof and waterproof, with superior sealing performance, suitable for water tanks, water towers, ponds, drainage systems, and other liquid level control applications.

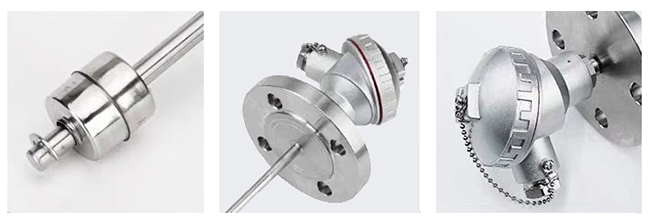

Metal float switch feature

Dimension (Unit: mm)

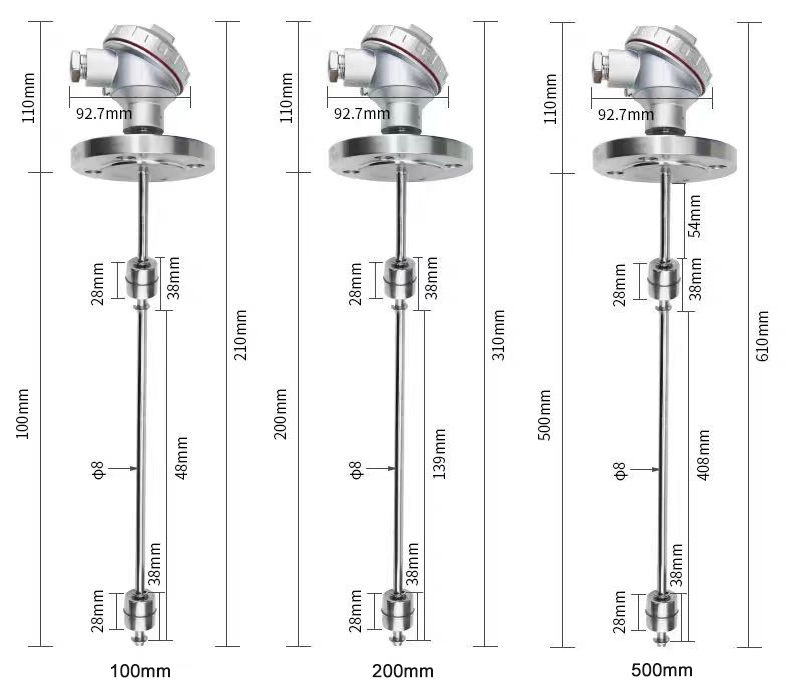

Metal float switch small dimension

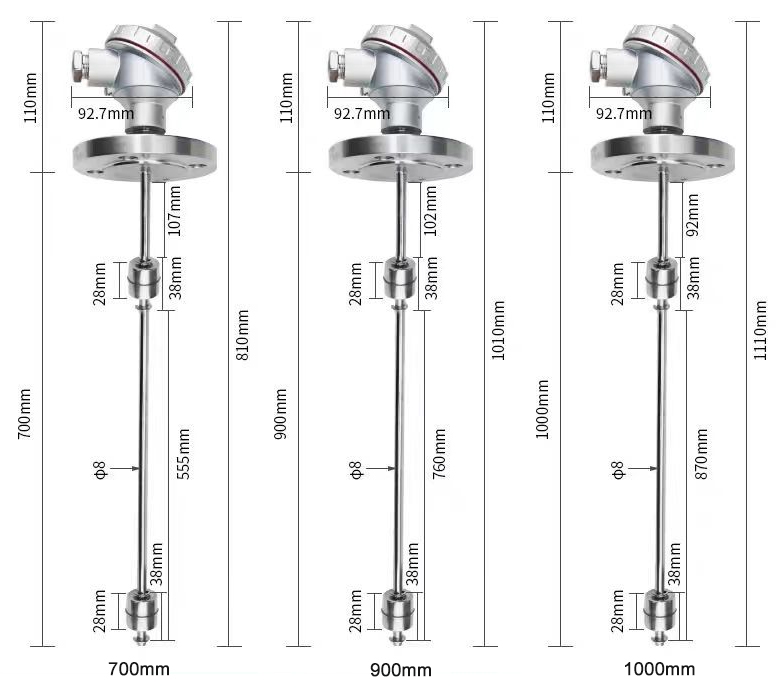

Metal float switch big dimension

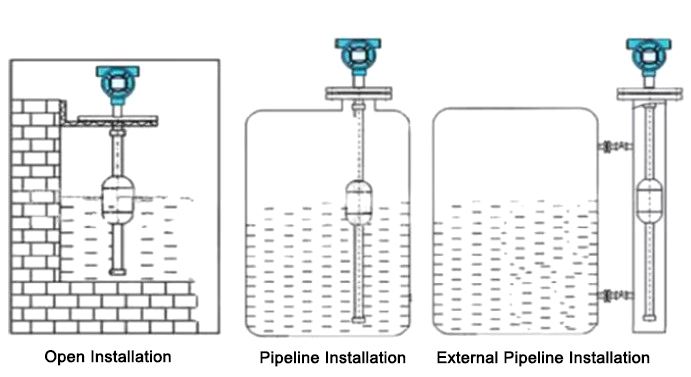

Installation Diagram

Metal float switch installation

Specs

Maximum Power	50VA
Maximum Switching Voltage	220V AC/DC
Maximum Switching Current	1.5A
Maximum Collapse Voltage	300V AC/DC
Maximum Contact Resistance	100mΩ
Temperature Range	-30~+120°C
Float Material	SU304
Body Material	SU304

Application

Water Tank

Water Pool

Water Tower

FAQ

Q1: What liquids are suitable for metal float switches? ❯

Suitable for water, oil, and most low-viscosity, non-corrosive liquids. Specific material compatibility needs to be confirmed based on the properties of the medium.

Q2: Do metal float switches require maintenance? ❯

It is recommended to regularly check the smooth movement of the float to prevent impurities from affecting normal operation.

Q3: What are the main uses of metal float switches? ❯

Used for liquid level detection, liquid level alarm, or automatic start/stop control of equipment, widely used in various liquid storage and automation systems.
