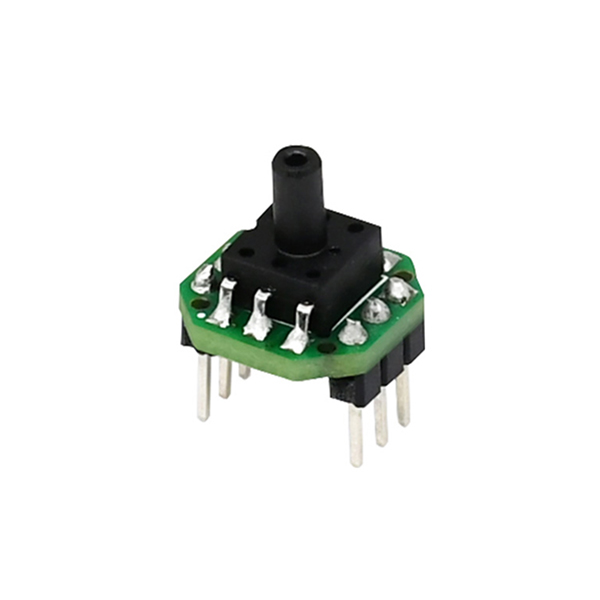

Gauge Pressure Sensor, 0~40kPa/0~100kPa/0~1000kPa, I2C/ Analog Output

SUCH gauge pressure sensor features a compact, DIP-style package that allows easy insertion and removal during installation. The compact gauge pressure sensor integrates a pressure sensing element and signal processing circuit on a PCB, with digital compensation for sensor offset, sensitivity, temperature drift. It is suitable for measuring positive or negative gauge pressure in non-corrosive gases, moisture-containing gases, and liquids. The pressure sensor is available with I2C digital output or 0.5–4.5 V analog output, making it easy to integrate into different electronic systems. Its compact and installation-friendly design makes it suitable for applications such as medical electronics, automotive electronics, and sports and fitness equipment.

Feature

• Compact DIP-Style Package: Easy to insert, remove, and integrate into electronic systems.
• Digital Compensation: Compensates for offset, sensitivity, temperature drift, and nonlinearity.
• Wide Media Compatibility: Suitable for non-corrosive gases, moisture-containing gases, and liquids.
• Easy Installation: Compact design makes it convenient to install in space-limited applications.

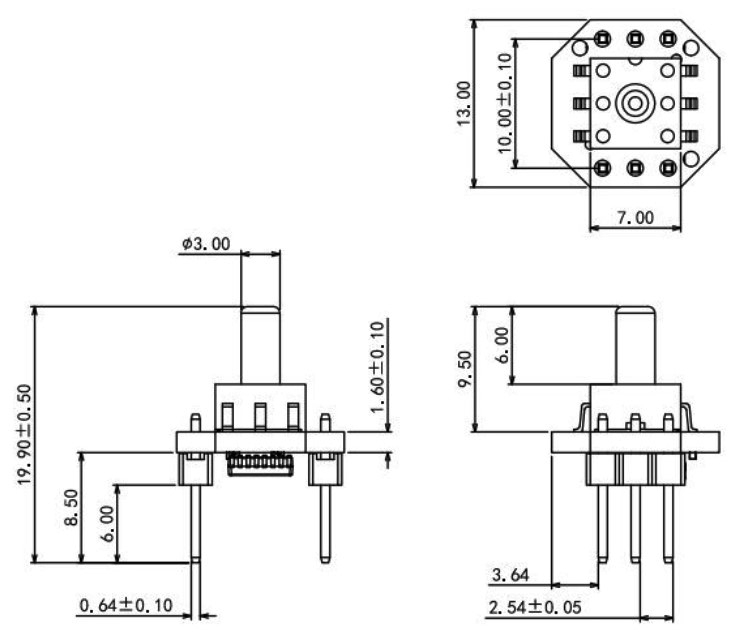

Dimension (Unit:mm)

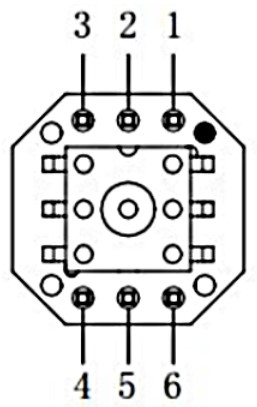

Electrical Connection

I2C electrical connection

Note: Ensure proper ESD protection during soldering. The product has a built-in 4.7 kΩ I2C pull-up resistor, so the host-side I/O only needs to be configured in open-drain mode.

Analog electrical connection

Note: Ensure proper ESD protection during soldering.
