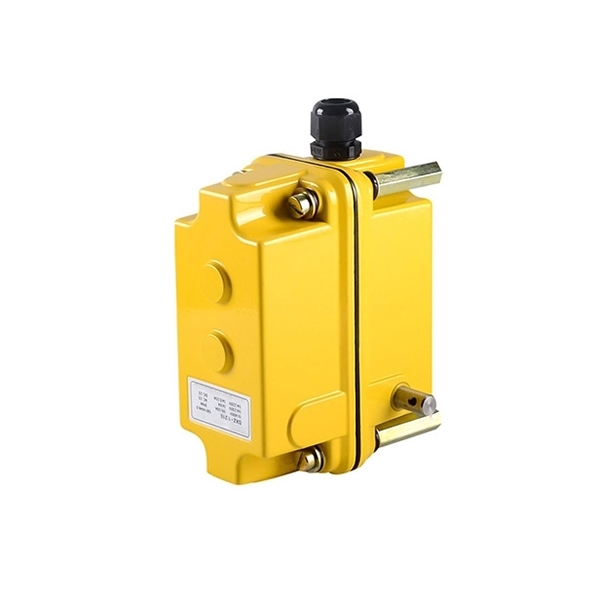

Rotary Height Limit Switch for Lifting, 380V, 4 NO 4 NC

Height limit switch is suitable for high-frequency lifting control in equipment such as cranes and high-bay warehouses. It features a contact configuration of 4 normally open (NO) and 4 normally closed (NC), with a rated voltage of 380V and a conventional thermal current of 10A. The operating temperature range is from -20°C to +80°C. It offers multiple transmission ratio options from 1:13 to 1:960. SUCH lifting height limit switch is constructed with an aluminum alloy housing combined with ABS material, and it adopts a built-in single-wheel rotating structure.

Feature

• The overall structure is robust, with excellent conductivity and easy installation.
• It features a thickened die-cast housing treated with high-pressure electrostatic spraying, resulting in high mechanical strength, durability, and a long service life.
• Equipped with dustproof and waterproof connectors, wiring is convenient, safe, and reliable.
• Height limit switch utilizes high-quality contact switch core components, which are wear-resistant, durable, and have an even longer service life.

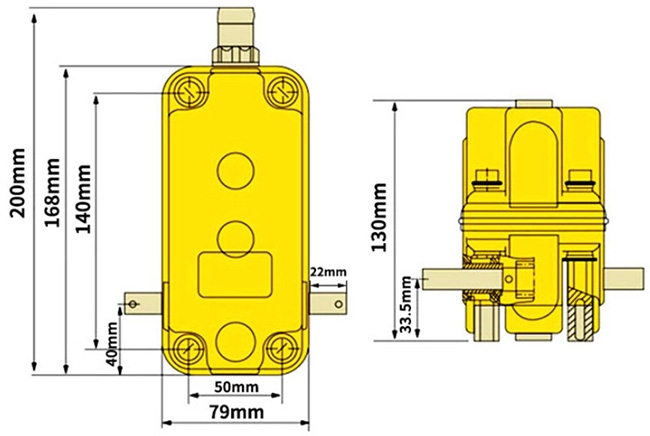

Dimension (Unit: mm)

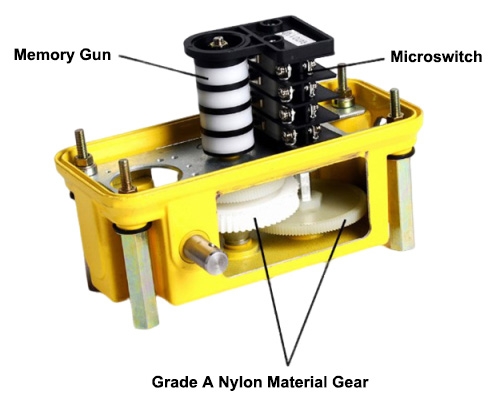

Details
