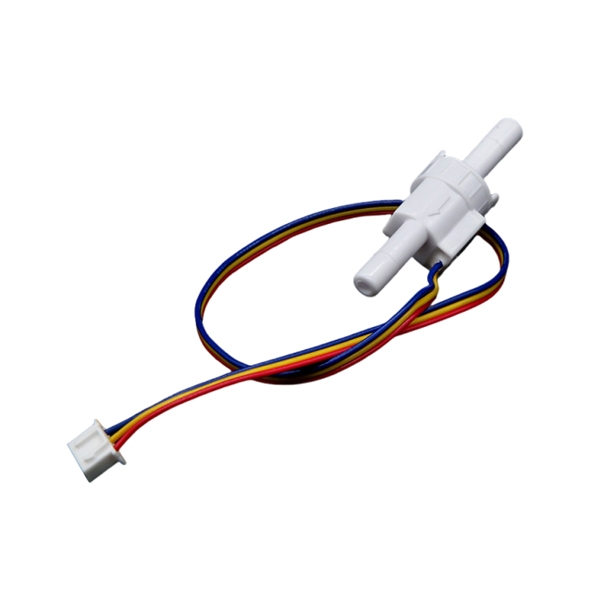

    Picture of Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min Picture of Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min Picture of Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min Picture of Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min Picture of Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min

    Mini Water Flow Sensor for Home, 0.05-1 L/min, 0.3-4 L/min

    1 review(s) | Add your review
    SKU: SUCH-FLOW-TM02
    $34.97
    ● 0.05-1 L/min, 0.3-4 L/min ● ≤0.8 MPa ● DC 3.5~24V ● 0~80°C operating temp
    *
    This product has a minimum quantity of 3
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-precision mini water flow sensors available for sale, offering selectable measurement ranges of 0.05–1 L/min and 0.3–4 L/min. Measurement accuracy reaches ±3%, maintaining stable output even under minimal water flow conditions. The flow sensor incorporates a highly sensitive pulse detection structure internally, where pulse signals are proportional to flow rate. It finds extensive application in water heaters, small water control systems, and metered water usage equipment.

    Feature

    Mini water flow sensor feature

    • The SUCH water flow sensor supports multiple flow range selections with overall accuracy up to ±3%, maintaining stable output even under low-flow conditions.
    • Stable pulse output with clear, stable low levels facilitates precise quantitative control and cumulative statistics.
    • Featuring a wide voltage, low-power design, it supports a DC 3.5–24V power supply. Maximum operating current is only 15 mA (DC 5V), with a load capacity ≤10 mA, ensuring low power consumption and minimal heat generation.
    • The mini water flow sensor features a pressure resistance of 0.8 MPa and operates reliably in environments ranging from 0–80°C and 35%–90% RH (non-condensing). It meets reliability requirements for applications in home appliances, water treatment, and industrial small-scale flow monitoring scenarios.

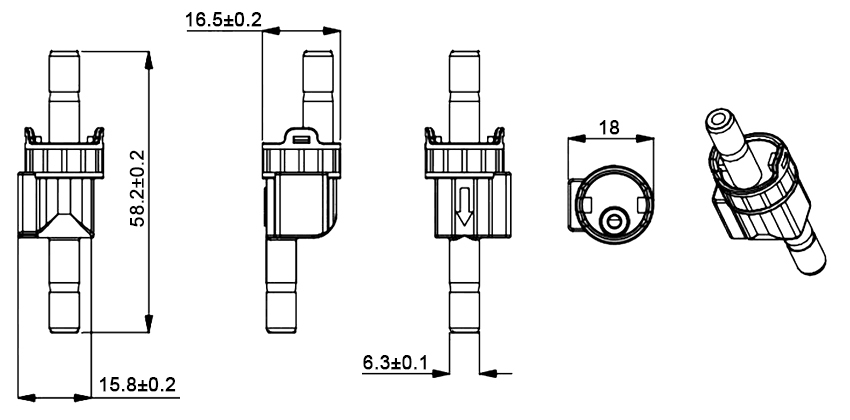

    Dimension (unit: mm)

    Mini water flow sensor dimension

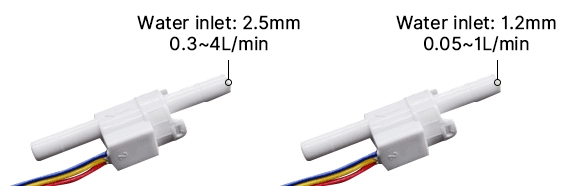

    Inlet Diameter

    Mini water flow sensor inlet diameter

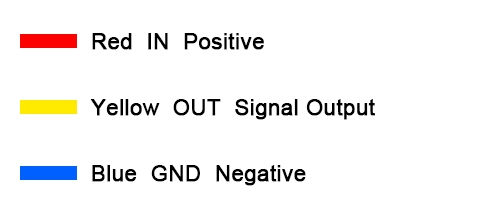

    Wiring Diagram

    Mini water flow sensor wiring diagram

    Specs
    Flow Range 0.05~1 L/min ±3%
    0.3~4 L/min ±3%
    Inlet Diameter 0.05~1 L/min: 1.2mm
    0.3~4 L/min: 2.5mm
    Pressure Resistance ≤0.8 MPa
    Operating Voltage Range DC 3.5~24V
    Max Operating Current 15mA (at DC 5V)
    Insulation Resistance >100 MΩ
    Load Capacity ≤10 mA (at DC 5V)
    Operating Humidity Range 35%–90% RH (non-condensing)
    Operating Temperature Range 0~80°C
    Output Pulse High Level ›DC 4.5V (input voltage: DC 5V)
    Output Pulse Low Level ‹DC 4.5V (input voltage: DC 5V)
    Pulse Characteristics Inner diameter 1.2mm(Hz)= [86×Q] ±2%, approx. 5160 pulses per liter
    Inner diameter 2.5mm(Hz)= [43×Q] ±2%, approx. 2580 pulses per liter
    Application

    Water flow sensor for self-service water dispenser

    Self-service Water Dispenser

    Residential water flow sensor for water purifier

    Water Purifier

    Water flow sensor for water dispenser

    Water Dispenser

    FAQ
    ❯

    With compact dimensions and flexible installation, mini water flow sensors are ideal for instant water heaters, water dispensers, coffee machines, water purification systems, smart appliances, and small-scale water circuits. They are particularly well-suited for space-constrained scenarios requiring precise flow detection.

    ❯

    The common output is a pulse signal, where the pulse frequency is directly proportional to the water flow rate. Control systems can calculate instantaneous flow rate and cumulative water consumption by counting pulses or measuring frequency, facilitating integration with MCUs, PLCs, or control boards.

    ❯

    Within the specified flow range, the mini water flow sensor maintains stable repeatability, making it suitable for quantitative control and flow monitoring applications. It meets the usage requirements for both daily appliances and industrial equipment.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Trevor Haines | 9/17/2026 3:44 AM
    Existing controller compatibility
    I’m replacing an existing flow sensor in a coffee machine, but the controller is already programmed for a pulse-type input. Can I use your sensor without changing the control system?
    A manager responded to this review
    The sensor uses a pulse output, so it can be used with a controller designed to receive a compatible pulse signal. However, the pulse characteristics and electrical interface should be checked against the existing sensor. If you provide the specifications or wiring diagram of your current sensor and controller, we can help confirm compatibility.
