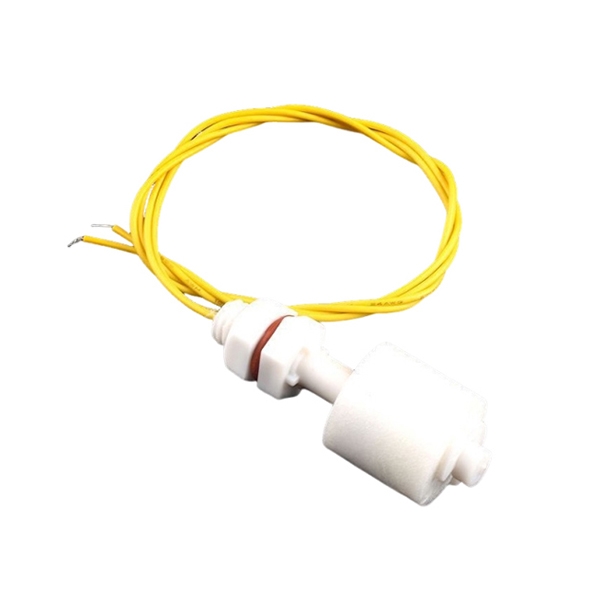

    Miniature Float Level Switch for Water Tank, PP Plastic

    0 review(s) | Add your review
    SKU: SUCH-FLS-P45
    $53.28
    ● Voltage range: 0-100V DC/AC ● Switching current: 0.5A ● Power: 10W ● Float material: PP
    šŸšš Free shipping
    šŸ•’ Delivery date: 6-12 days
    šŸ” 30-day Returns
    Overview

    Miniature float switch is made of corrosion-resistant PP (polypropylene) material, featuring a compact structure and easy installation. Its voltage range is 0ā€“100V DC/AC, switching current is 0.5A, load current is 1.0A, power is 10W, maximum contact resistance is ā‰¤100mĪ©, and operating temperature range is -10ā„ƒ to +85ā„ƒ. It is widely used in household appliances, industrial equipment, wastewater treatment systems, and various liquid level monitoring applications.

    Feature

    • Made of PP plastic, it boasts strong corrosion resistance.
    • Simple structure, mechanical design, stable and reliable operation.
    • Compact size, flexible installation, suitable for space-constrained equipment.
    • Suitable for various liquid environments, applicable to water tanks, water pumps, and various liquid level control systems.

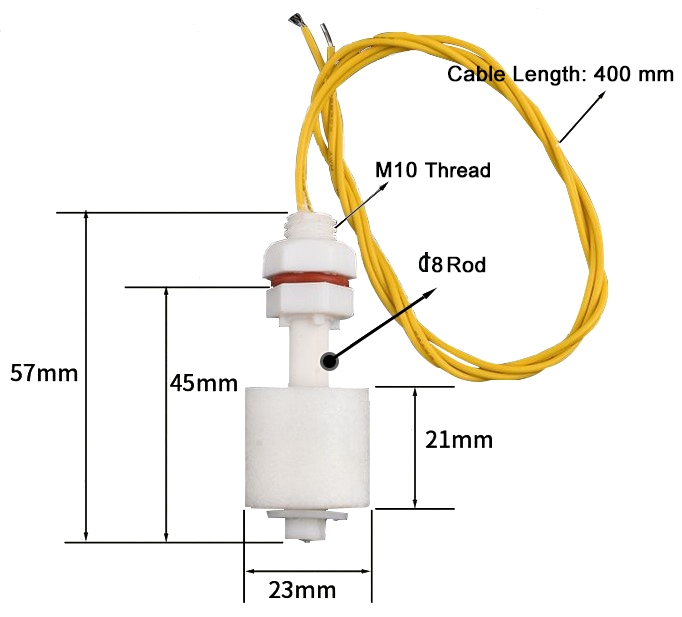

    Dimension (Unit: mm)

    Miniature float switch dimensions

    Specs
    Voltage Range 0-100V DC/AC
    Switching Current 0.5A
    Power 10W
    Load Current 1.0A
    Maximum Contact Resistance 100mĪ©
    Temperature Range -10~+85ā„ƒ
    Float Material PP
    Body Material PP
    Installation Method Top or bottom vertical installation
    Installation Size M8
    Actuation Characteristics Upward or downward floating connection (adjustable)
    Applicable Media Water, oil, chemical media
    Temperature Range -30 to +85ā„ƒ
    Pressure Range 0.2MPa
    Application
    Water tank

    Water Tank

    Water treatment system

    Water Treatment System

    Water tower

    Water Tower

    FAQ
    āÆ

    The float switch should be installed away from the water inlet or areas with strong liquid turbulence. Excessive wave motion may cause false triggering and affect normal operation.

    āÆ

    The controlled circuit load must match the contact rating of the float switch. Overloading is strictly prohibited. In addition, the specific gravity of the measured liquid must be higher than that of the float; otherwise, the float will not operate properly.

    āÆ

    The actuation point has been factory-set according to customer requirements. Please do not adjust the float position, as this may affect performance or cause malfunction.
