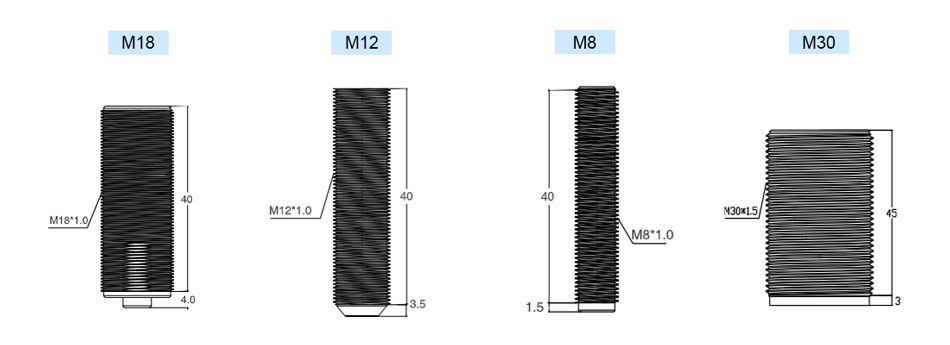

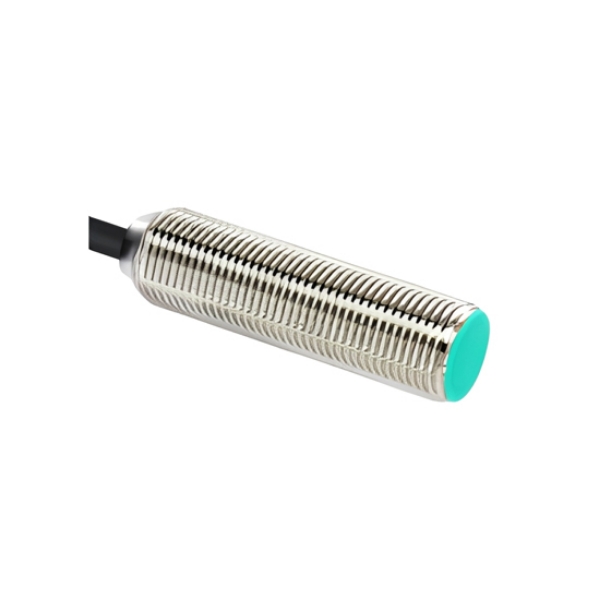

This Hall effect magnetic sensor offers M8/M12/M18/M30 threaded housings with NPN or PNP normally‑open output for flexible cylinder position detection. Sensing up to 20mm (magnet‑dependent) with IP67 nickel‑plated brass body and red LED indication, this hall effect magnetic sensor delivers 1500Hz (M8/M12) or 1000Hz (M18/M30) switching from -20~70°C. Reverse polarity, short‑circuit, and overload protected, this hall effect magnetic sensor suits automated machinery and pneumatic systems.
A: The hall effect magnetic sensor uses a magnet as the standard detectable object and has a 20 mm sensing distance. The sensing face is front.

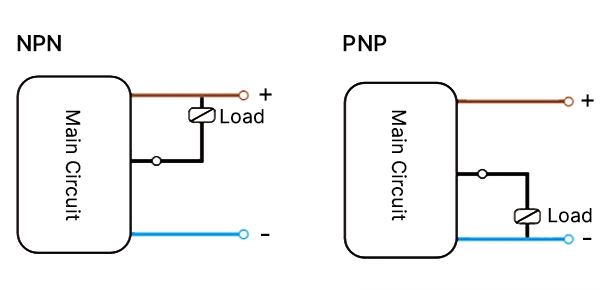

A: Yes. The hall effect magnetic sensor comes with a standard 2 m cable, diameter 3.8 mm ± 0.15 mm, 3-core (brown, black, blue), core wire diameter 1.2 mm, and PVC oil-resistant composite material. Extension cable: 0.3 mm² or larger, total length extendable up to 100 m.
A: It's a built‑in operation indicator – when the sensor detects the magnet (output is ON), the red LED lights up. This gives you instant visual confirmation during setup or troubleshooting, without needing a multimeter.
