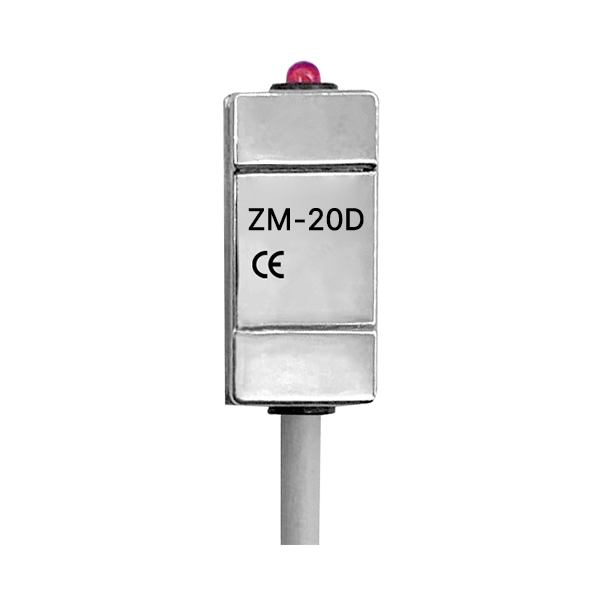

    Pneumatic Cylinder Magnetic Sensor, 40-800G/55-800G

    0 review(s) | Add your review
    SKU: SUCH-MCS-ZM
    $68.52
    ● 2-wire wiring method magnetic sensor ● Reed switch/electronic type optional ● 60/70 Gauss inductive magnetic field strength ● SPST NO or contactless NO switching logic
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The pneumatic cylinder magnetic sensor series offers Reed (5–240V AC/DC, dry NO contact, 200Hz, 30G) and solid‑state (10–30V DC, NO with short‑circuit/surge protection, 1000Hz, 50G) versions. Both are IP67 rated, CE compliant, and operate from -10~70°C. This pneumatic cylinder magnetic sensor reliably detects piston positions in automated machinery, conveyor systems, and packaging equipment.

    Feature

    • Dual Sensing Options: Reed (dry contact) or Solid-state NO outputs.
    • Wide Power Flexibility: 5-240V AC/DC (Reed) or 10-30V DC (Solid-state).
    • Superior Shock Protection: Solid-state includes 50G resistance and full circuit protection.
    • High-Speed Switching: Solid-state hits 1000Hz; Reed is 200Hz.
    • Standardized Detection: Uses Ø15.5xØ8xT5 magnet, 2-wire cable, IP67 rated.

    Dimension

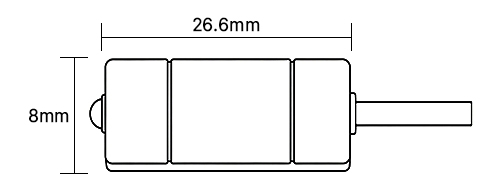

    Pneumatic cylinder magnetic sensor dimensions: 26.6mm length by 8mm height.

    Wiring Diagram

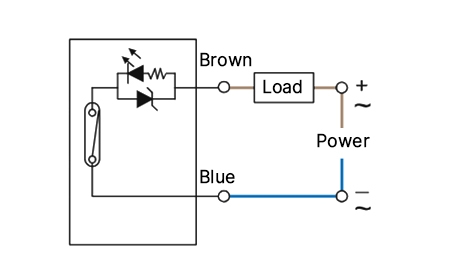

    Wiring diagram of a 70 Gauss Reed switch type pneumatic cylinder magnetic sensor.

    Reed switch type: 70 Gauss

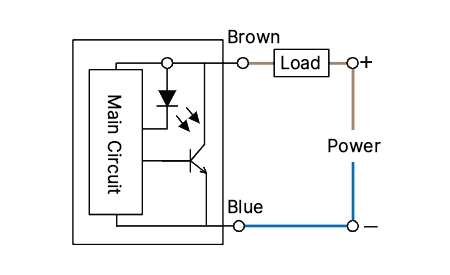

    Wiring diagram of a 60 Gauss Electronic type pneumatic cylinder magnetic sensor.

    Electronic type: 60 Gauss

    CF chart

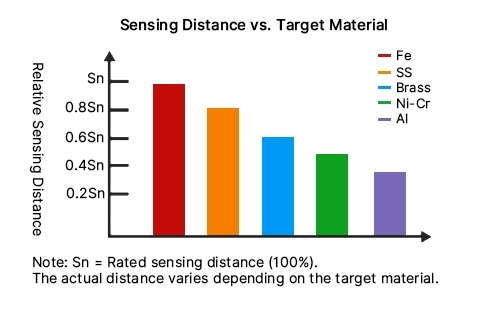

    Pneumatic cylinder magnetic sensor technical CF chart illustrating the sensing distance decay for Iron (Fe), Stainless Steel (SS), Brass, Nickel-Chromium (Ni-Cr), and Aluminum (Al).

    Max Sensing Position

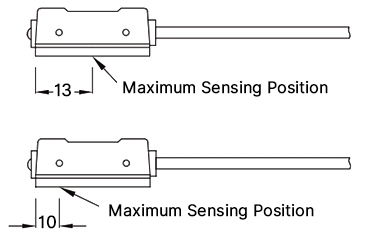

    Dimensional diagrams of a pneumatic cylinder magnetic sensor showing two maximum sensing positions.

    Spec
    Model SUCH-ZM-20R SUCH-ZM-20D
    Inductive Magnetic Field Strength1 70 Gauss 60 Gauss
    Type Reed switch type Electronic type
    Switching Logic SPST NO Electronic, contactless, NO
    Output Contact Type With contacts Contactless
    Operating Voltage Range 5–240 V DC/AC 10–30 V DC
    Max Switching Current 100 mA max. 50 mA max.
    Contact Rating2 10 W max. 1.5 W max.
    Max Switching Frequency 200 Hz 1000 Hz
    Surge Resistance3 30G 50G
    Protection Circuit4 1 2, 3, 4
    Current Consumption / /
    Internal Voltage Drop / 3.5 V max.
    Leakage Current / /
    Wiring Method 2-wire
    Vibration Resistance5 9 G
    Protection Rating IEC 60529 IP67
    Indicator Light Color Red LED
    Wiring Ø3.2, 2C, PVC
    Operating Temperature Range -10–70 °C

    Notes:

    1. Standard magnet used for measurement: Ø15.5 × Ø8 × 5t (anisotropic rubber magnet).
    2. Do not exceed the contact rating (P = V × I).
    3. Sine wave / X, Y, Z axes / 3 cycles per axis / 11 ms per cycle.
    4. 1 = None; 2 = Output short-circuit protection; 3 = Reverse polarity protection; 4 = Surge absorption protection.
    5. Double amplitude 1.5 mm / 10 Hz–55 Hz–10 Hz sweep, lasting 1 minute / 1 hour of operation in each of the X, Y, and Z axes.
    Application

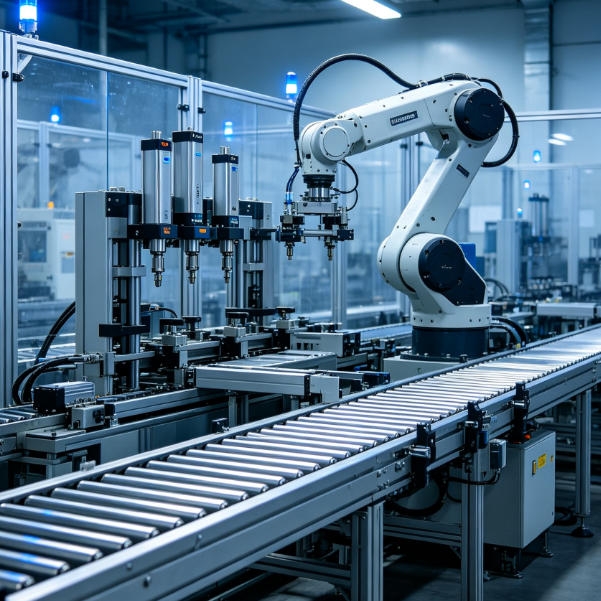

    Magnetic switch sensors mounted on smart factory automated lines to detect fixture engagement and linear actuator positions for precise, error-free production sequencing.

    Smart Factory

    Magnetic stroke sensors installed on outdoor agricultural machinery to monitor hydraulic piston travel and verify implement coupling status before field operations begin.

    Agricultural Outdoor

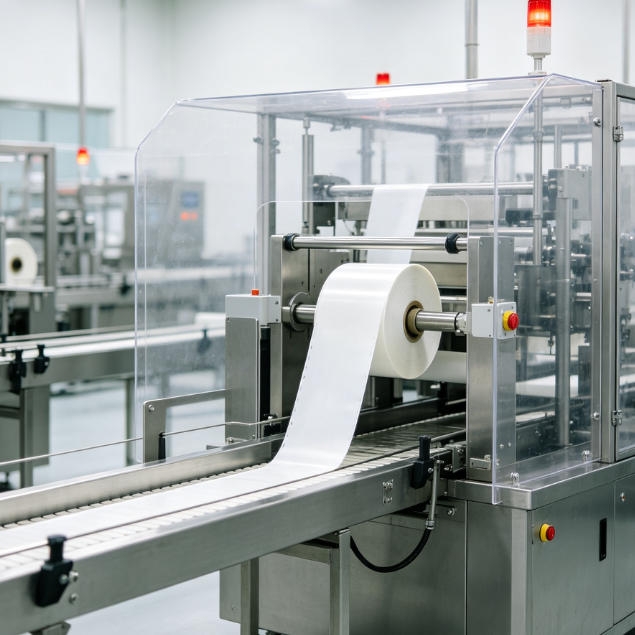

    Sealed magnetic proximity sensors used in a hygienic clean packaging workshop for detecting conveyor alignment, packaging mold closure, and automatic door limits without contacting sterile products.

    Clean Packaging

    FAQ
    ❯

    A: It’s a 2-wire sensor for confirming piston position in pneumatic cylinders. Two versions are available: SUCH-ZM-20R and SUCH-ZM-20D. Both are IP67 rated and use a red LED indicator.

    ❯

    A: The R model has no built-in protection. The D model includes output short-circuit protection, reverse polarity protection, and surge absorption protection.

    ❯

    A: Use the reference magnet: Ø15.5 × Ø8 × 5t anisotropic rubber magnet. For the R model, do not exceed the contact rating (P = V × I). The D model has a 3.5 V max internal voltage drop.
