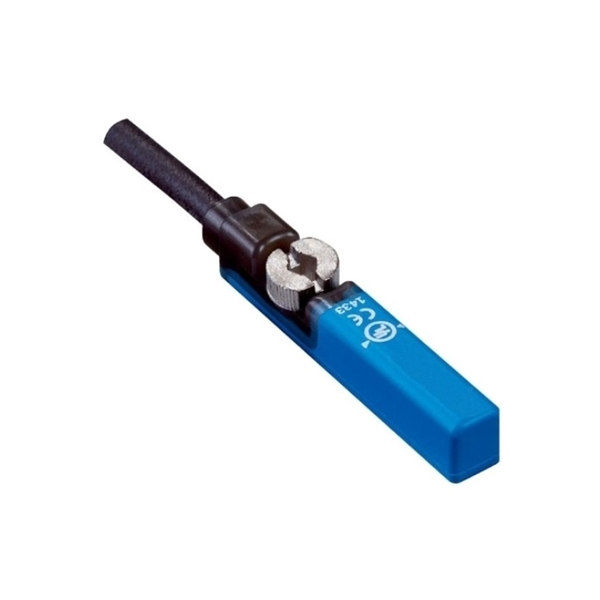

    Magnetic Cylinder Sensor, T-slot PNP, IP67

    1 review(s) | Add your review
    SKU: SUCH-MCS-KP0
    $62.35
    ● Switch output PNP ● Supply voltage 10V DC – 30 V DC ● Switching frequency 1,000 HZ ● Housing protection grade IP67
    This product has a minimum quantity of 2
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This DC 3‑wire magnetic cylinder sensor features PNP normally‑open output with 10–30V DC supply and 1000Hz switching frequency for precise piston position detection. IP67 rated with reverse polarity and short‑circuit protection, this magnetic cylinder sensor delivers reliable performance from -10~70°C. CE certified and suitable for assembly lines, packaging, and robotics, this magnetic cylinder sensor ensures long‑term industrial durability.

    Feature

    • Ultra-Compact Build: 29.5mm housing, fits tight spaces with 10mm rails.
    • High-Speed Output: 1000Hz PNP normally-open switching for fast detection.
    • Superior Precision: 0.1mT repeatability and <0.8mT stable hysteresis.
    • Heavy-Duty Safety: IP67 rated, plus reverse polarity & short circuit protection.
    • Wide Power Range: 10-30V DC, 100mA continuous, with low 8mA consumption.

    Dimension (Unit: mm)

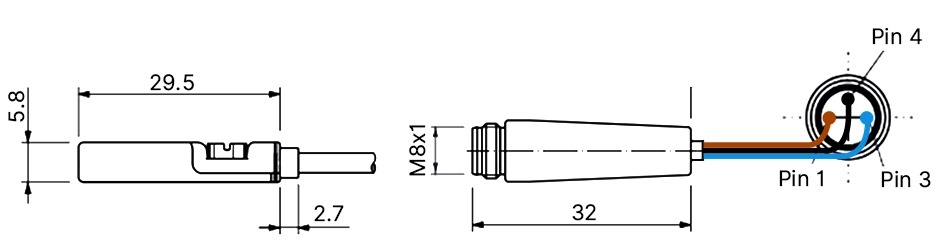

    Magnetic cylinder sensor dimension chart featuring M8x1 connector, 29.5mm body length, and Pin 1, 3, 4 wiring diagram.

    Wiring

    Pin Wire Color Function
    Pin 1 Brown Power +
    Pin 3 Blue Power -
    Pin 4 Black Signal Output



    Installation

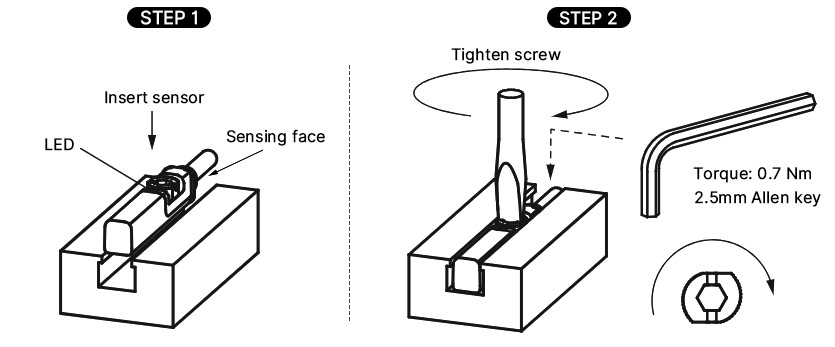

    Magnetic cylinder sensor installation instruction with 2.5mm Allen key and 0.7 Nm torque specification.

    Schematic Diagram

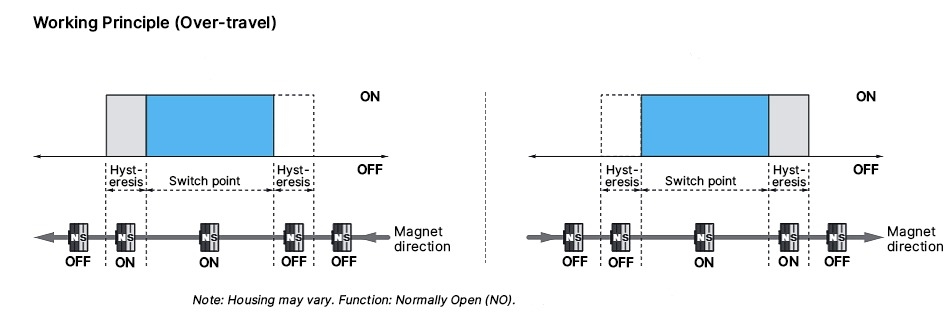

    Working principle diagram of a magnetic cylinder sensor showing over-travel, hysteresis, and switch points.

    Spec
    Supply Voltage 10 V DC ~ 30 V DC
    Electrical Specification DC 3 wires
    Switch Output PNP
    Output Function NO
    Switching Frequency 1,000 Hz
    Continuous Current (Ia) ≤ 100 mA
    Current Consumption 8 mA, no load
    Voltage Drop ≤2V
    Repeatability ≤0.1 mT
    Typical Hysteresis Value <0.8 mT
    Response Time Sensitivity (typical) 3 mT
    Typical Guide Rail 10 mm
    Housing Length 29.5 mm
    Housing Protection Grade IP67
    Protection Class III
    Protection Reverse polarity protection, short circuit protection
    Certificate CE
    Application
    Magnetic cylinder position sensor installed on a packaging machine for detecting pneumatic actuator stroke end and confirming sealing head closure.

    Packaging Machine

    Magnetic proximity switch mounted along a glass production line to detect glass sheet arrival position and trigger transfer mechanism operation.

    Glass Line

    Magnetic limit sensor on a wood conveying system to detect log position on the feed chain and coordinate sawing or splitting actions.

    Wood Conveyor

    FAQ
    ❯

    A: The magnetic cylinder sensor is a DC 3-wire cylinder position sensor with PNP output, NO function, and CE certification.

    ❯

    A: Switching frequency: 1,000 Hz; repeatability: ≤0.1 mT; typical hysteresis: <0.8 mT; response time sensitivity: 3 mT typical.

    ❯

    A: Yes. The magnetic cylinder sensor includes reverse polarity protection and short circuit protection.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    David Huxley | 9/29/2026 9:23 AM
    Can I use this magnetic cylinder sensor as a replacement?
    Hi, I’m replacing a magnetic sensor on a pneumatic cylinder and came across this one. The cylinder already has a T-slot, so I’m mainly wondering if it will fit and work with my 24V PLC. I’m using a PNP input at the moment and would rather keep the existing wiring if possible.
    A manager responded to this review
    Hi, yes, the sensor is made for T-slot cylinders and uses a 3-wire PNP output with a 10–30V DC supply. If you send us the cylinder model or the T-slot dimensions, we can check whether it will be a direct replacement.
