    Picture of Magnetic Reed Switch Sensor, 2-Wire Picture of Magnetic Reed Switch Sensor, 2-Wire Picture of Magnetic Reed Switch Sensor, 2-Wire Picture of Magnetic Reed Switch Sensor, 2-Wire

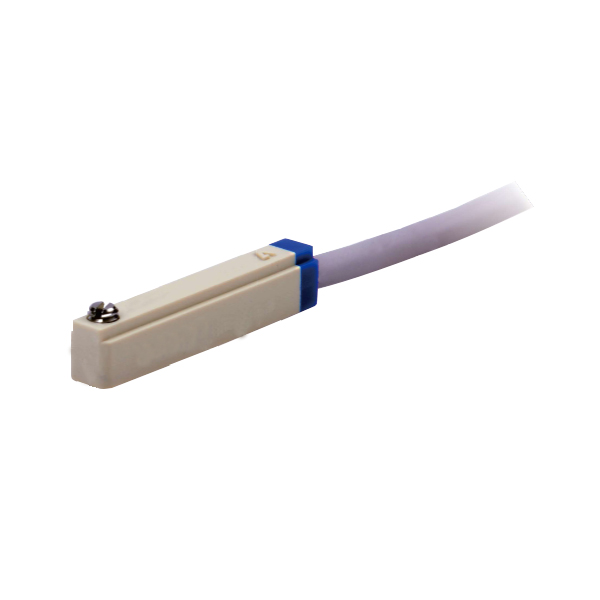

    Magnetic Reed Switch Sensor, 2-Wire

    0 review(s) | Add your review
    SKU: SUCH-MCS-2W
    $62.35
    ● Voltage 5–240V AC/DC ● Maximum switching current 100 mA ● Maximum switching frequency 200 Hz ● Lead wire length 2 m, 3 m, 5 m, or 10 m
    *
    *
    This product has a minimum quantity of 3
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This magnetic reed switch sensor offers dry contact output across a wide 5–240V AC/DC supply for universal compatibility. With 200Hz switching, 50G shock resistance, and multiple cross‑section types (G/J/H/E/HS/GS) with cable lengths from 2–10m, this magnetic reed switch sensor delivers reliable position detection from -10~70°C. CE and RoHS compliant, this magnetic reed switch sensor suits door contacts, float switches, and safety interlocks.

    Feature

    • Universal AC/DC Voltage: Wide 5V-240V AC/DC compatibility for global use.
    • Flexible Mounting Options: G/J/H/E/HS/GS sections with 2-10m lead wires.
    • Zero Power Consumption: Passive design requires no internal current draw.
    • Rugged Construction: 50G shock resistance and 200Hz switching at -10℃~70℃.
    • Certified Safety: 6W contact capacity, CE marking, and RoHS compliance.

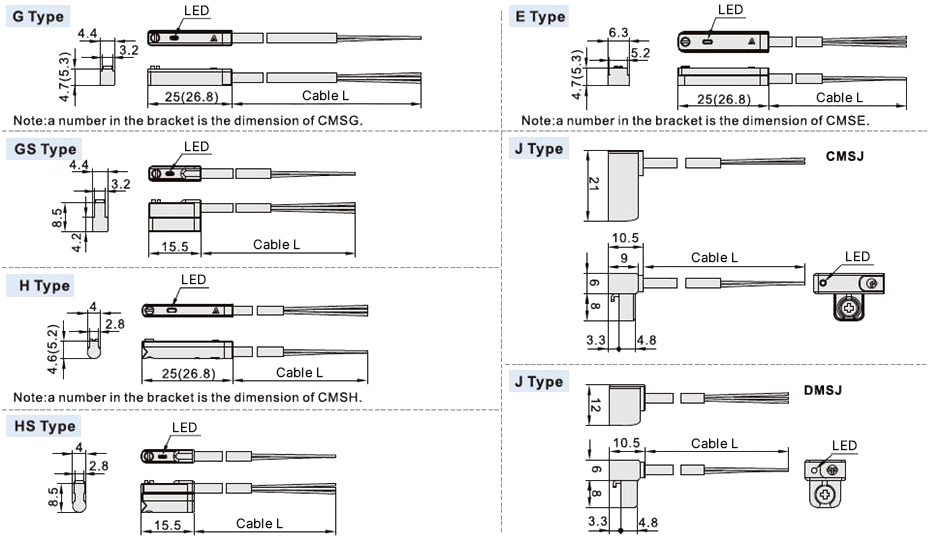

    Dimension (Unit: mm)

    Magnetic reed switch sensor dimension diagram featuring various mounting types (G, GS, H, HS, E, J) with LED and cable length details.

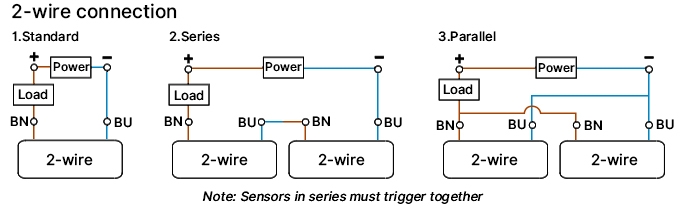

    Wiring Diagram

    Magnetic reed switch sensor 2-wire connection guide illustrating standard, series, and parallel circuit methods.

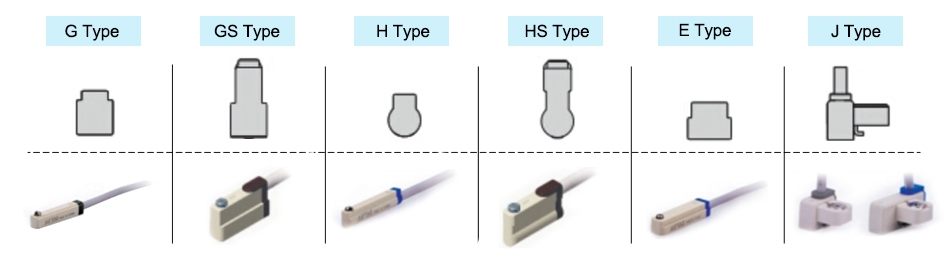

    Cross Section Type

    Cross-section profile chart of magnetic reed switch sensors, showing G, GS, H, HS, E, and J types alongside their actual product photos.

    Spec
    Lead Wire Length 2m / 3m / 5m / 10m
    Cross Section Type G / J / H / E / HS / GS
    Voltage 5V-240V AC/DC
    Maximum Switching Current 100mA
    Maximum Contact Capacity 6W Max
    Internal Current Consumption N/A
    Maximum Switching Frequency 200Hz
    Impact Resistance 50G
    Protection Circuit N/A
    Working Temperature -10℃~70℃
    Standard CE marking, RoHS
    Application

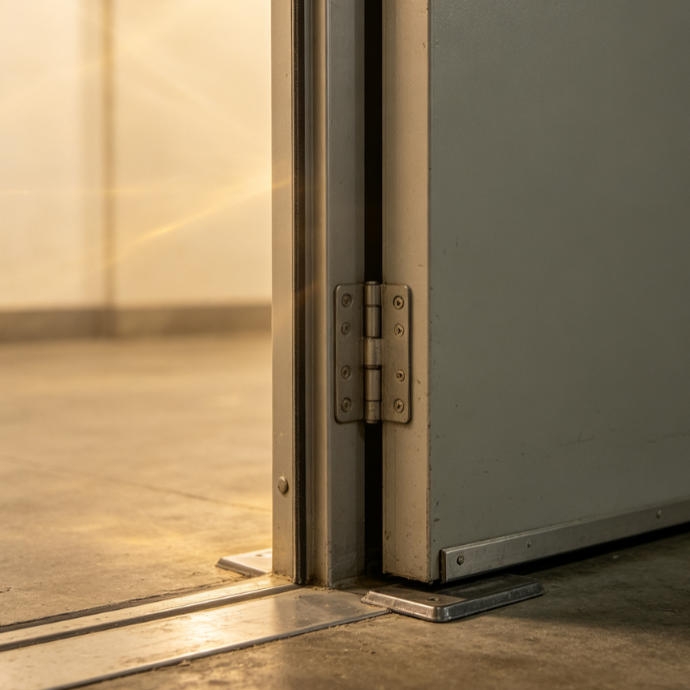

    Magnetic Door Contact Sensor Installed on a Fire Door Frame to Detect Open/Closed Status and Trigger Alarm or Release Signal in Emergency Systems.

    Fire Door

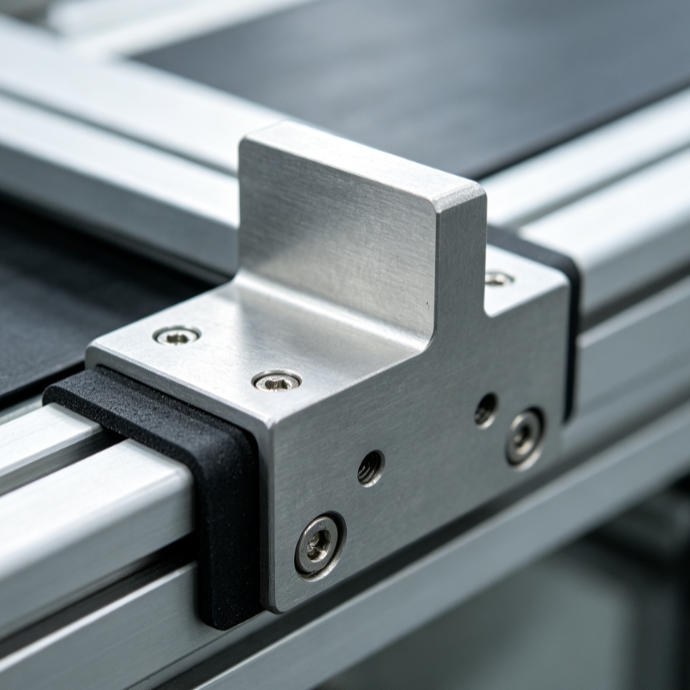

    Magnetic Proximity Switch Used as a Mechanical End Stop Limit on a Production Line for Detecting Actuator Position and Preventing Overtravel Mechanical Limit.

    Mechanical Limit

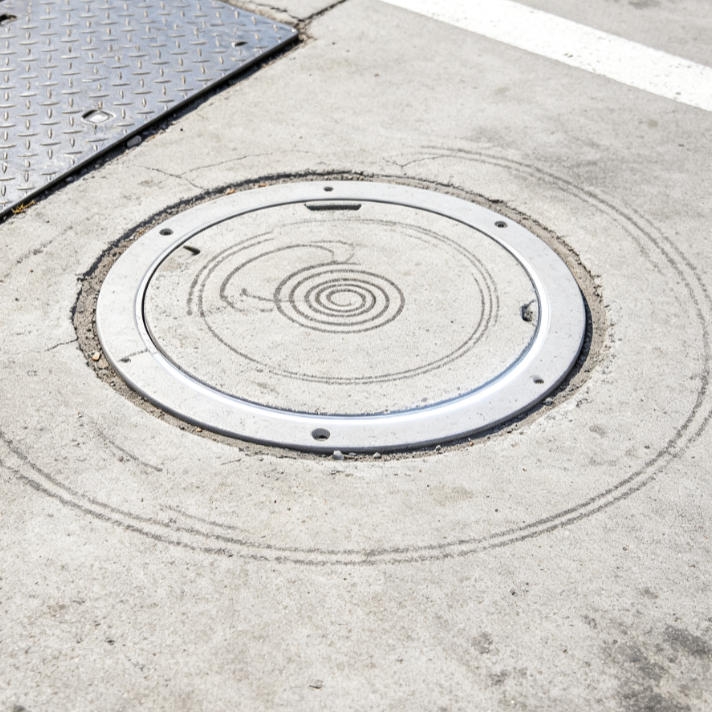

    Geomagnetic Detection Sensor Embedded in a Parking Space Lock System to Sense Vehicle Arrival and Trigger Automatic Lock Raise/Lower Operation.

    Parking Lock

    FAQ
    ❯

    A: It offers 200Hz maximum switching frequency, 50G impact resistance, and a working temperature range of -10℃~70℃.

    ❯

    A: The magnetic reed switch sensor offers lead wire lengths of 2m / 3m / 5m / 10m. Cross-section types include G / J / H / E / HS / GS.

    ❯

    A: The magnetic-reed-switch-sensor is a compact reed switch sensor for position or proximity detection. It meets CE marking and RoHS.
