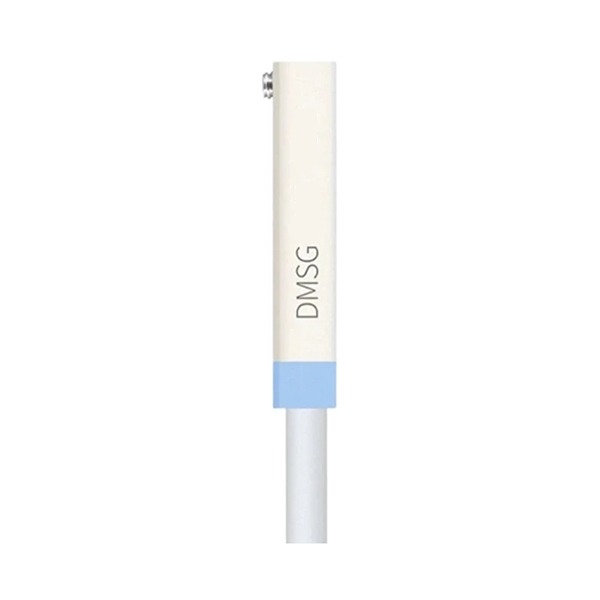

    Magnetic Cylinder Sensor 3 Wire, PNP / NPN

    1 review(s) | Add your review
    SKU: SUCH-MCS-DMS
    $34.80
    ● Output type 3-wire-PNP or 3-wire-NPN optional ● Lead wire length 2 m, 3 m, 5 m, or 10 m optional ● Maximum switching frequency 1000 Hz ● Protection IP64
    *
    *
    *
    This product has a minimum quantity of 3
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Offering PNP/NPN output, this 3‑wire magnetic cylinder sensor detects piston positions with 1000Hz switching, 50G shock resistance, and 30V/200mA capacity. Operating from -10~70°C with reverse/surge protection, this magnetic cylinder sensor supports multiple cross‑section types and cable lengths (2–10m). CE, RoHS, IP64 rated, this magnetic cylinder sensor suits assembly lines, packaging, and robotics.

    Feature

    • Flexible Output Types: 3-wire PNP/NPN with G, J, H, E, HS, GS sections.
    • High-Speed Switching: 1000Hz frequency with 30V/200mA capacity.
    • Rugged Durable Design: 50G impact resistance, IP64-rated, -10°C~70°C.
    • Built-in Safety Protection: Reverse polarity and surge protection circuits.
    • Customizable Lengths & Compliance: 2-10m cables with CE and RoHS marks.

    Dimension (Unit: mm)

    Technical dimension diagram for 2-wire magnetic cylinder sensors.

    Wiring Diagram

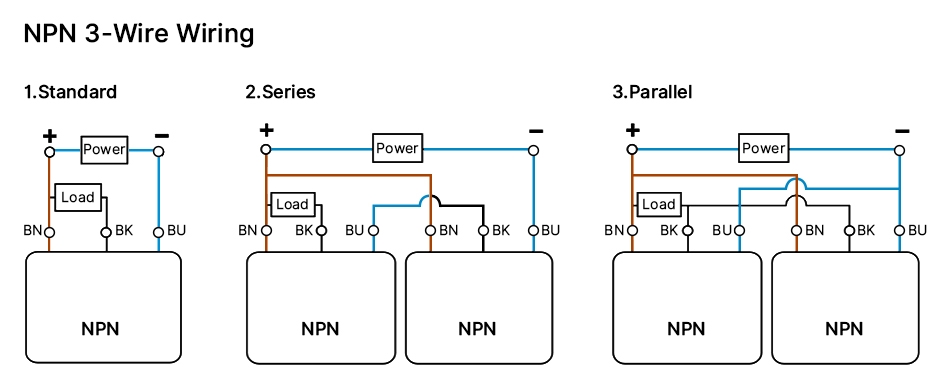

    NPN 3-wire wiring diagram for magnetic cylinder sensors, showing standard, series, and parallel connection configurations, with BN, BK, and BU wire labels.

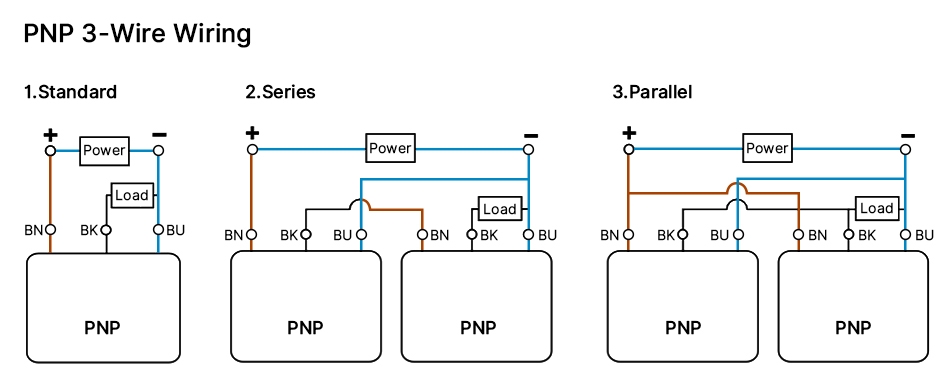

    PNP 3-wire wiring diagram for magnetic cylinder sensors, showing standard, series, and parallel configurations with BN, BK, and BU wire labels.

    Cross Section Type

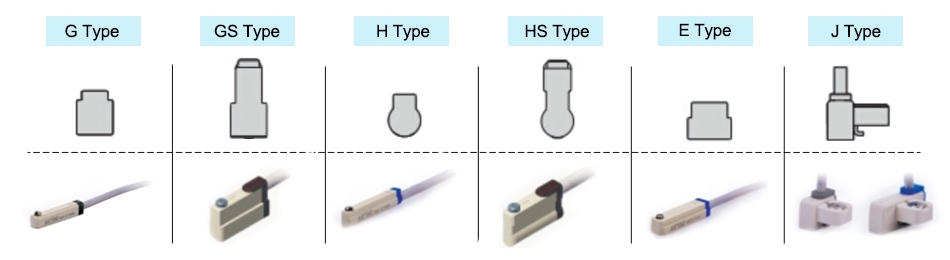

    Cross-section profile chart of 3-wire magnetic cylinder sensors, showing G, GS, H, HS, E, and J types alongside their product photos.

    Spec
    Output 3-wire-PNP
    3-wire-NPN
    Lead Wire Length 2m / 3m / 5m / 10m
    Cross Section Type G / J / H / E / HS / GS
    Voltage 5V-30V DC
    Maximum Switching Current 30V/200mA Max
    Maximum Contact Capacity 6W Max
    Internal Current Consumption 5mA Max
    Internal Residual Voltage 0.7V Max
    Leakage Current 0.01mA Max
    Maximum Switching Frequency 1000Hz
    Impact Resistance 50G
    Protection Circuit Reverse polarity protection Surge protection
    Working Temperature -10°C~70°C
    Standard CE marking, RoHS
    Protection Level IP64
    Application
    Hall effect magnetic sensor integrated in a car door latch assembly for detecting lock bolt position and transmitting door open/closed status.

    Car Door Lock

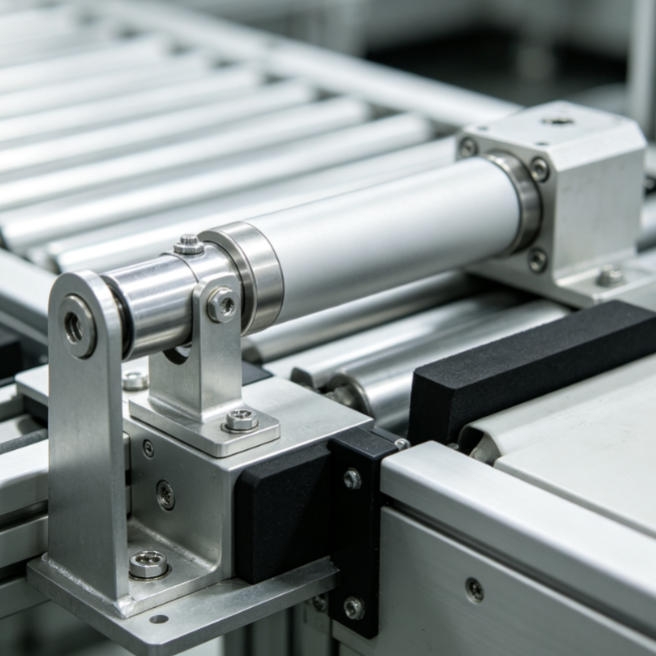

    Magnetic proximity switch mounted on a conveyor line stopper to detect product arrival and actuate pneumatic stopping mechanism.

    Conveyor Stopper

    Magnetic position sensor installed in a medical bed actuator system to monitor bed section angles and provide end-stop safety feedback.

    Medical Bed

    FAQ
    ❯

    A: It's a magnetic cylinder sensor designed to detect piston position in pneumatic or hydraulic cylinders – ideal for automation, assembly lines, and industrial machinery.

    ❯

    A: The magnetic cylinder sensor 3-wire is available with 3-wire PNP and 3-wire NPN output types.

    ❯

    A: Maximum contact capacity: 6W Max; internal current consumption: 5mA Max; internal residual voltage: 0.7V Max; leakage current: 0.01mA Max.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Peter Holden | 9/28/2026 9:13 AM
    Good magnetic cylinder sensor
    I put this magnetic cylinder sensor on a pneumatic cylinder for an automation setup. It fit into the cylinder groove pretty easily, but I had to move it around a bit to get the switching point right. I’m using the PNP output with my controller, and so far it’s been working fine. Haven’t had to adjust it again since getting it set up.
