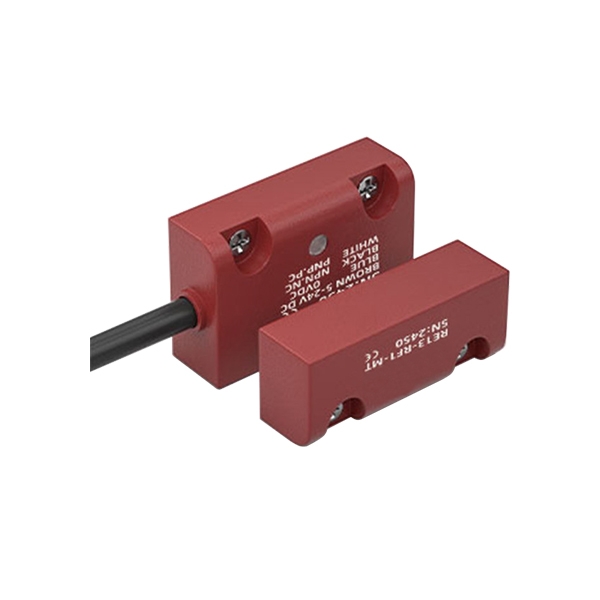

    Non Contact Magnetic Safety Switch, NPN NC, PNP NC

    0 review(s) | Add your review
    SKU: SUCH-MCS-RE13
    $75.38
    ● Reed contact, magnetic coding or RFID ● Output NPN NC + PNP NC or 2 NC ● Protection class IP67 ● The type is a door magnetic switch
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This magnetic safety switch series offers three variants for door interlocking applications: Hall without coding (NPN+PNP NC), Hall with RFID coding (NPN+PNP NC), and Reed without coding (two NC contacts). While signal methods differ, all serve as reliable magnetic safety switches. Built with IP67 and ISO13849-1 compliance, this magnetic safety switch suits machine guards and industrial safety doors.

    Feature

    • Multi-Technology Options: Uncoded Hall, coded Hall (RFID), or Reed solutions.
    • Certified Safety Standard: Meets ISO13849-1 and IEC/EN60947-5-3.
    • Redundant Dual Outputs: NPN NC + PNP NC or dual NC fail-safe contacts.
    • Wide Gap & Fast Response: 8-17mm sensing range, 5ms response, IP67 rated.
    • Flexible Mounting Design: Top or side sensing, with 2m cable or aviation plug.

    Dimension (Unit: mm)

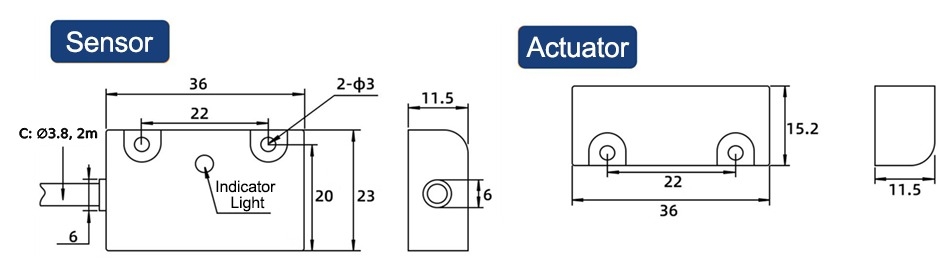

    Dimension drawing of a magnetic safety switch (sensor and actuator).

    Wiring

    Please strictly follow the color code. Wiring error may damage the sensor.

    For NPN/PNP Dual NC Output

    Wire Color Function
    Blue Negative (-)
    Black NPN NC Output
    Brown Positive (+)
    White PNP NC Output

    For Reed Switch Unencoded

    Wire Color Function
    Brown Output A1
    Blue Output A2
    Black Output B1
    White Output B2

    Note: Blue & Brown form one set (Switch 1). Black & White form one set (Switch 2).

    Spec
    Model SUCH-WTX-RE13-IO SUCH-WTX-RE13-NP SUCH-WTX-RE13-RF0
    Signal Method Reed switch contacts Magnetic coding High-frequency RFID
    Output Mode 2 NC NPN NC + PNP NC
    Type Door magnetic switch
    Safety Standard ISO13849-1, IEC/EN60947-5-3
    Working Distance On. Min: 8mm
    Off. Max: 17mm
    Typical Tolerance Top or side
    Cable Outlet Direct outlet 2m, with aviation plug (~J)
    Output Current (max) 100mA
    Response Time 5ms
    Protection Class IP67
    Operating Frequency 10Hz
    Operating Temperature -10~+55℃
    Relative Humidity 5%~95%
    Material ABS+PC
    Application

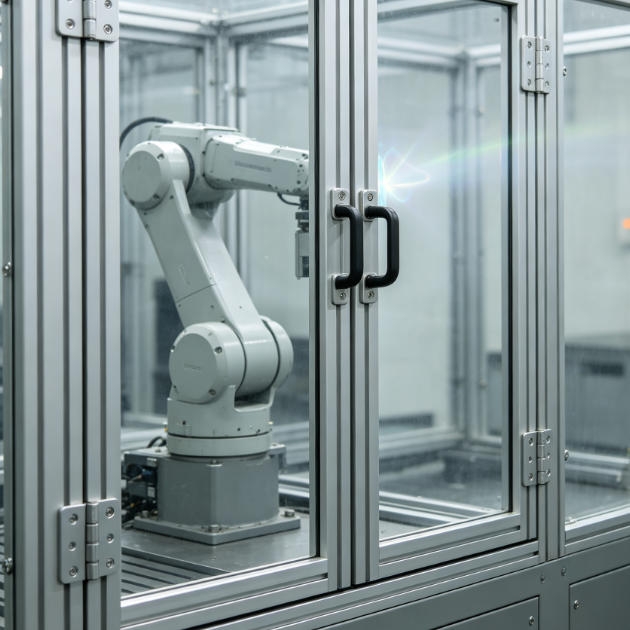

    Coded magnetic safety interlock switch mounted on a robot workstation guard door to prevent access while the robot is operating and ensure safe stop on opening.

    Robot Cell

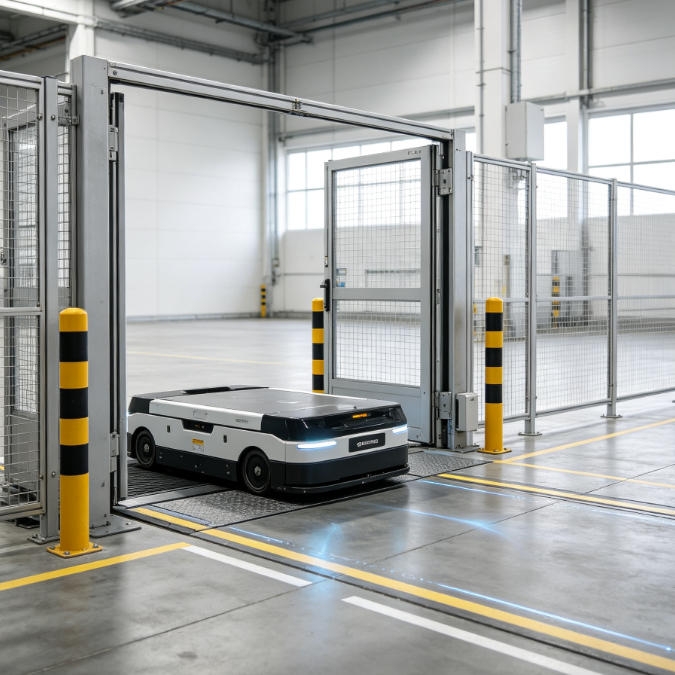

    Magnetic safety switch with dual-channel monitoring installed on an AGV perimeter protective gate to lock the door during automated vehicle passage and signal a safe state.

    AGV Gate

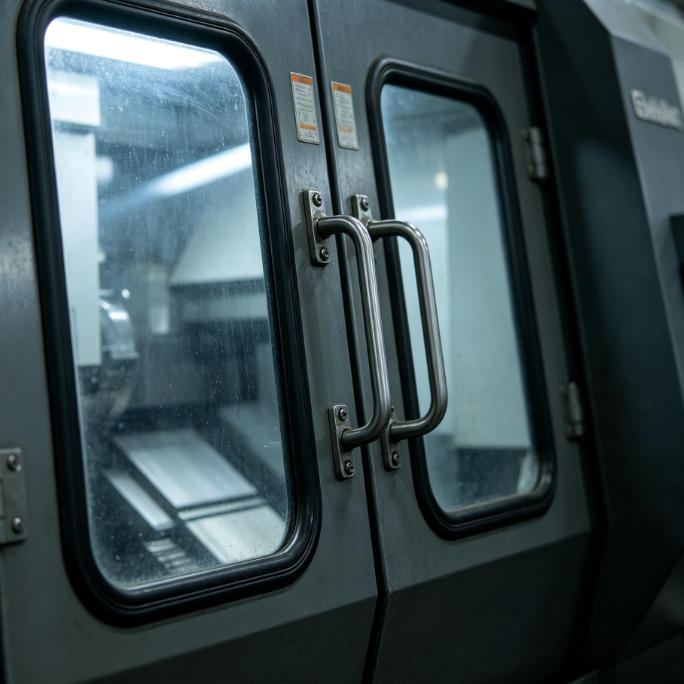

    Encoded magnetic safety sensor on a machine tool cabin door to verify door closure and interlock spindle rotation for operator injury prevention during high-speed machining.

    Machine Guard

    FAQ
    ❯

    A: The magnetic safety switch comes in SUCH-WTX-RE13-IO, SUCH-WTX-RE13-NP, and SUCH-WTX-RE13-RF0. All are door magnetic switch types.

    ❯

    A: The magnetic safety switch uses different signal methods: SUCH-WTX-RE13-IO uses reed switch contacts; SUCH-WTX-RE13-NP uses magnetic coding; SUCH-WTX-RE13-RF0 uses high-frequency RFID.

    ❯

    A: The magnetic safety switch detects door position with On Min: 8mm and Off Max: 17mm. Typical tolerance is top or side. Cable outlet is direct outlet 2m, with aviation plug (~J).
