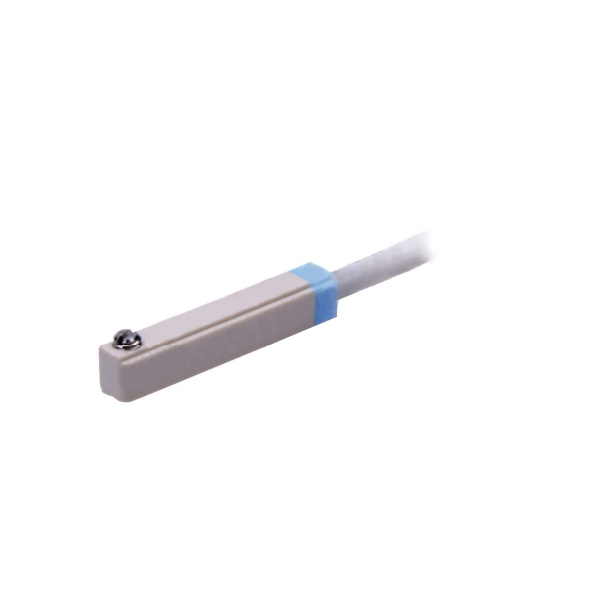

Magnetic Cylinder Sensor 2 Wire, IP64 / IP 68

Name: Magnetic Cylinder Sensor 2 Wire, IP64 / IP 68
Brand: Such.com
SKU: SUCH-MCS-ET
Price: 32.25 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-MCS-ET

$32.25

● Protection grade general IP64 or waterproof IP68 ● Cross-section type G, J, H, E, HS, or GS ● Lead wire length 2 m, 3 m, 5 m, or 10 m ● Maximum switching frequency 1000 Hz

Protection Grade *
Cross Section Type *
Lead Wire Length *

This product has a minimum quantity of 3

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Spec
Application
FAQ
Reviews

Overview

This 2‑wire magnetic cylinder sensor operates on 10–28V DC with a 1000 Hz switching frequency and 50 G shock resistance for reliable piston detection. Available in IP64 general‑purpose or IP68 waterproof ratings, this magnetic cylinder sensor supports multiple cross‑section types and cable lengths (2–10m). CE and RoHS-compliant, this magnetic cylinder sensor suits assembly lines, packaging machinery, and robotics.

Feature

Dual Waterproof Rating: General IP64 and waterproof IP68 options.
Versatile Configurations: G/J/H/E/HS/GS sections with 2-10m wires.
Wide Power & Current: 10-28V DC input with 2.5-100mA switching.
Rugged Reliability: 50G shock resistance and -10℃~70℃ operation.
Smart Safety Protection: Reverse polarity and surge protection, CE/RoHS compliant.

Dimension (Unit: mm)

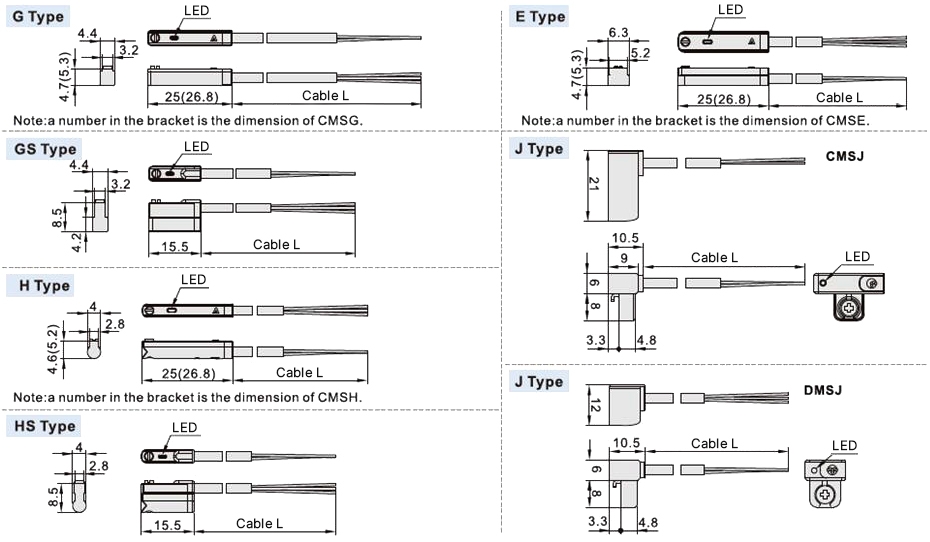

2-wire magnetic cylinder sensor dimension drawing for G, GS, H, HS, E, and J types.

Wiring Diagram

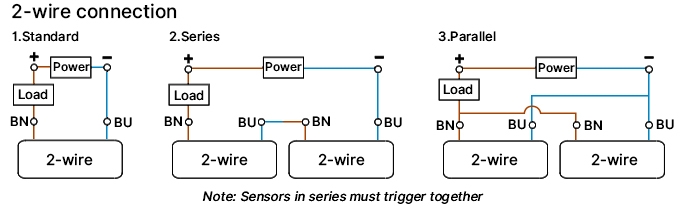

Diagram showing the 2-wire connection of magnetic cylinder sensors for standard, series, and parallel circuits, with BN and BU wires labeled.

Cross Section Type

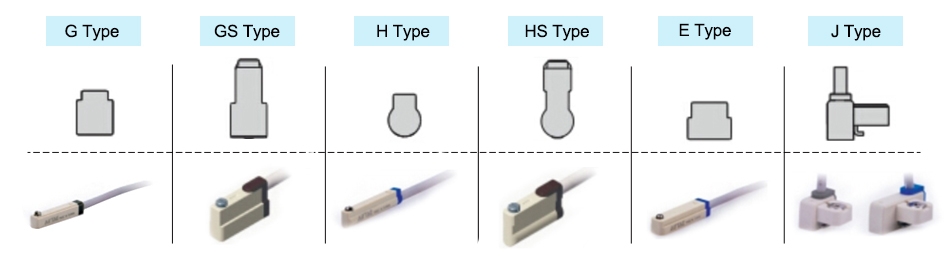

Cross-section profile chart of 2-wire magnetic cylinder sensors, showing G, GS, H, HS, E, and J types alongside their product photos.

Spec

Protection Grade	General IP64
Protection Grade	Waterproof IP68
Lead Wire Length	2m / 3m / 5m / 10m
Cross Section Type	G / J / H / E / HS / GS
Voltage	10V~28V DC
Maximum Switching Current	2.5mA-100mA
Maximum Contact Capacity	2.8W Max
Internal Current Consumption	3mA Max
Internal Residual Voltage	2.7V Max
Leakage Current	0.05mA Max
Maximum Switching Frequency	1000Hz
Impact Resistance	50G
Protection Circuit	Reverse polarity protection Surge protection
Working Temperature	-10℃~70℃
Standard	CE marking, RoHS

Application

Elevator Door

Hall effect magnetic switch on a washing machine lid to verify closed and locked state before enabling spin cycle for user safety

Washer Lid

Train Door

FAQ

Q1: How fast can the 2‑wire magnetic cylinder sensor switch? ❯

A: Maximum switching frequency is 1000 Hz – fast enough for high‑speed cylinder cycles and precision timing.

Q2: What is the magnetic cylinder sensor 2-wire? ❯

A: The magnetic cylinder sensor 2-wire is designed for cylinder position detection. It supports 10V~28V DC and meets CE marking, RoHS.

Q3: Is the 2‑wire magnetic cylinder sensor durable and compliant? ❯

A: Yes – impact resistance 50 G, reverse polarity and surge protection built in. Working temperature -10 °C to 70 °C, CE marked and RoHS compliant.
