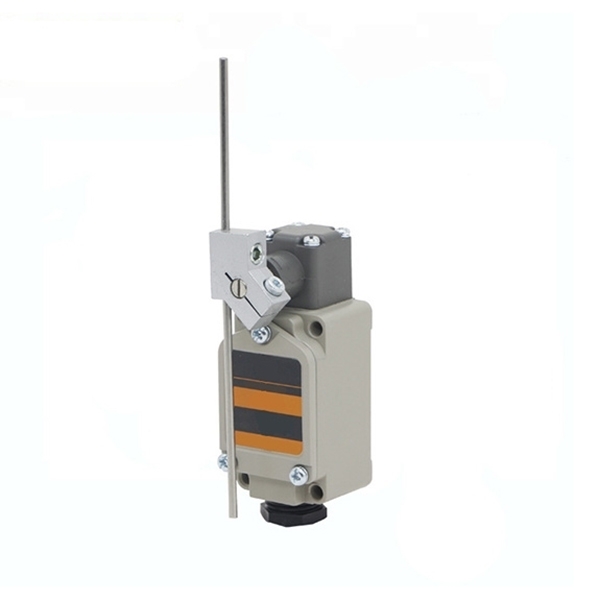

Mini Limit Switch with Adjustable Rod Lever/Roller Lever

Mini limit switch offers both adjustable lever and roller lever operation to meet diverse application needs. Its compact design, 10A (250VAC) rated current, and IP66 protection rating ensure effective dust and water resistance, making it suitable for various industrial environments. It also features built-in normally open (NO) and normally closed (NC) contacts for flexible wiring and circuit design. SUCH compact limit switch is widely used for position control and safety monitoring in mechanical equipment, automation systems, and industrial machinery, and is suitable for operating environments ranging from -10°C to +80°C and 35% to 95%RH.

Feature

• The double circuit switch design is widely used across various industrial applications.
• The aluminum alloy housing provides high mechanical strength and durability.
• It features dustproof, waterproof, and oilproof performance for harsh environments.
• A variety of actuator options are available to suit different application needs.
• It is widely applied in machine tools, injection molding machines, and other industrial machinery.

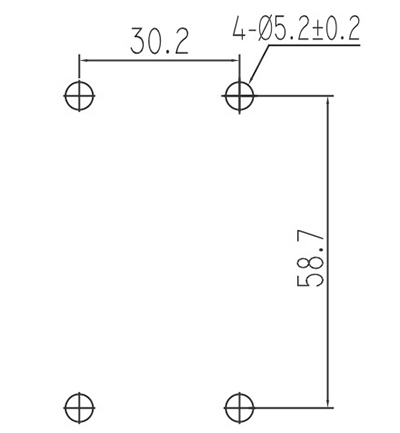

Mounting Holes Dimension (mm)

Actuators
