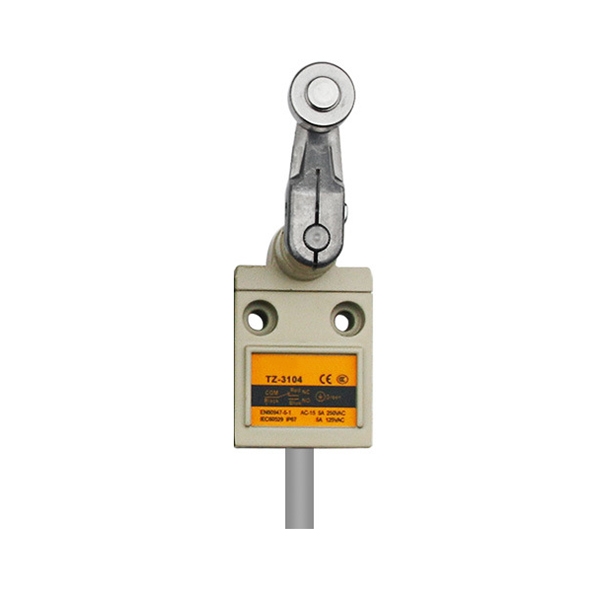

    Picture of Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67 Picture of Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67 Picture of Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67 Picture of Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67 Picture of Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67

    Waterproof Limit Switch, 5A/250VAC, 3A/125VAC, IP67

    0 review(s) | Add your review
    SKU: SUCH-LMS-TZ3
    $75.95
    ● Rating: 5A 125V, 3A 250VAC ● Operating speed: 1mm~1m/s ● Operating frequency: 30 operations/min. ● IP degree: IP67
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Waterproof limit switch is rated at 5A (125VAC) and 3A (250VAC) and features an IP67 protection rating, making it suitable for harsh environments. SUCH limit switch operates at speeds ranging from 1 mm/s to 1 m/s with an electrical operating frequency of up to 30 operations per minute, and offers an electrical life exceeding 200,000 cycles. The contact resistance is ≤15mΩ (initial), and it is designed to operate reliably in temperatures from -10°C to +70°C (without icing) and in humidity levels below 95% RH.

    Feature

    • Fully sealed potting process with special encapsulation, providing IP67 waterproof, oil-resistant, and dustproof performance without foaming or delamination.
    • One-piece die-cast aluminum alloy housing ensures high strength, durability, and easy installation for versatile applications.
    • High-quality heat-resistant cable (approx. 1 meter, customizable) offers reliable and long-lasting performance.
    • Thickened silver contacts deliver excellent conductivity, low resistivity, and arc-free durability.

    Dimension (Unit: mm)

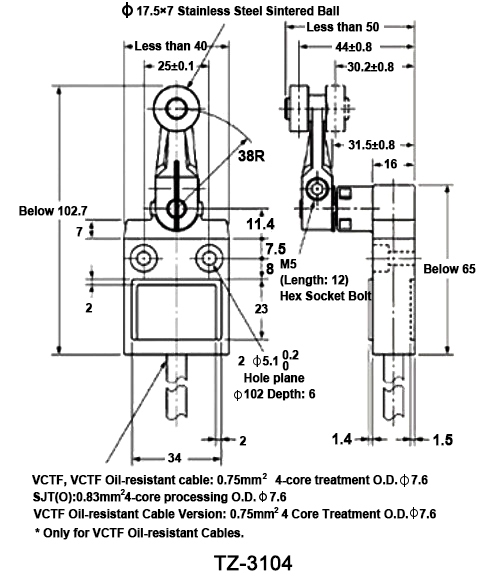

    Waterproof limit switch dimension roller lever

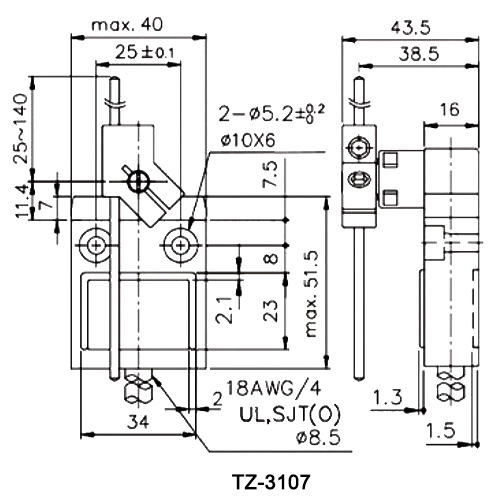

    Waterproof limit switch dimension adjustable rod lever

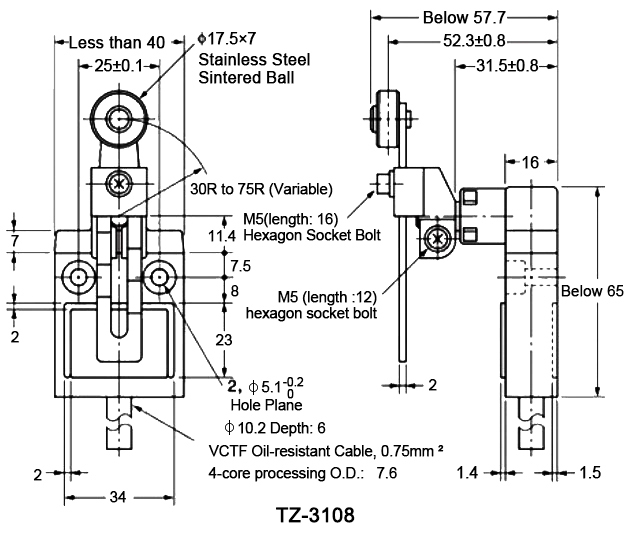

    Waterproof limit switch dimension adjustable roller lever

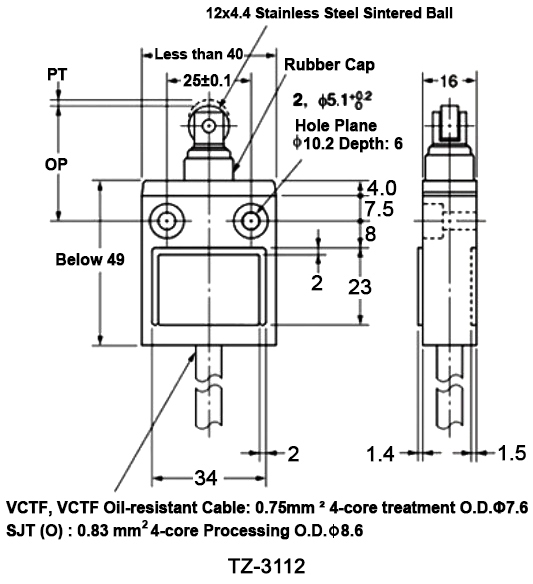

    Waterproof limit switch dimension roller plunger

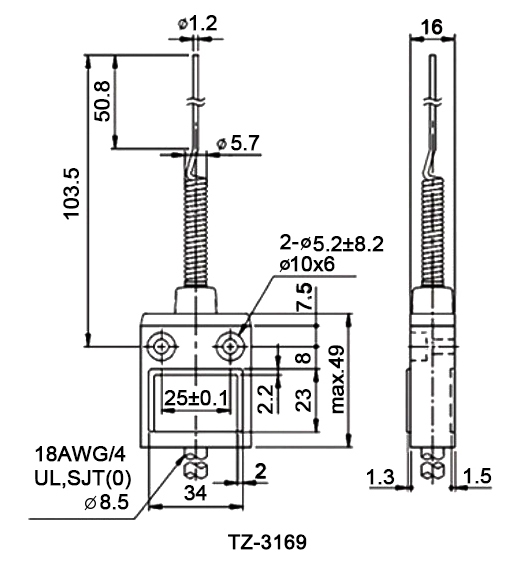

    Waterproof limit switch dimension coil spring

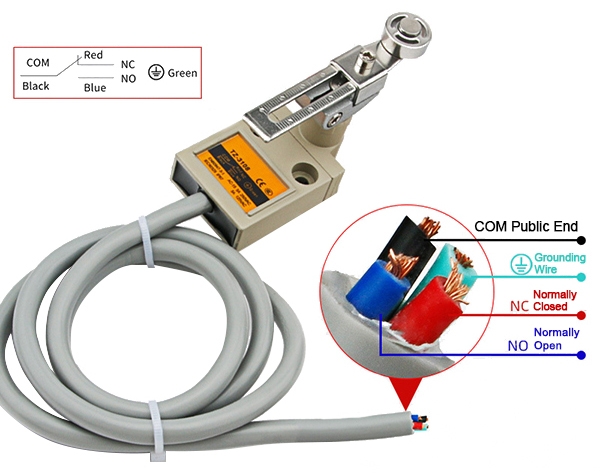

    Wiring Diagram

    Waterproof limit switch wiring

    Specs
    Rating 5A 125V, 3A 250VAC
    Operating speed 1mm~1m/s
    Operating frequency Electrical: 30 operations/min.
    Contact resistance 15mΩ max.(initial)
    Insulation resistance 100mΩ  min.(at 500VDC)
    Dielectric strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
    1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
    1500VAC, 50/60 Hz for 1 minute between each terminal and the ground
    Vibration frequency 10 to 55Hz, 1.5mm double amplitude
    Shock Mechanical: Approx.1000m/s2(Appprox.100G)
    Electrical: Approx.500m/s2(Approx.50G)
    Ambient temperature -10℃~+70℃ (With no icing)
    Humidity <95% RH
    Weight Approx. 360 g (cable length 3m)
    IP Degree IP67
    Electrical life Above 200,000 cycles


    Operating characteristic

    Model TZ-3104 TZ-3107 TZ-3108 TZ-3112 TZ-3169
    Actuator Roller lever Adjustable rod lever Adjustable roller lever Roller plunger Coil spring
    OF Max. 5.69N 5.69N 5.69N 17.65N 1.47N
    RF Min. 1.47N 1.47N 1.47N 4.41N -
    PT Max. 25° 25° 25° 1.8mm 15°
    OT Min. 40° 40° 40° 3mm -
    MD Max. 3° 3° 3° 0.2mm -
    OP - - - 34.3±1mm -

    Note: The 3104 action characteristics are for a 38mm long lever.

    Explanation of parameters:

    OF means operating force, the force that must be applied to the drive rod in order to move from the free position to the operation position.

    RF means release force, the force that must be applied to the drive rod in order to move from the total travel position to the return position.

    PT means pretravel, the distance the drive rod moves from the free position to the operation position.

    OT means overtravel, the moving distance or moving angle of the drive rod from the operation position to the full stroke position.

    MD means movement differential, the moving distance or moving angle of the drive rod from the operation position to the return position.

    OP means operating position, at which the external force is applied to the drive lever to make the movable contact just operating from the state of the free position.

    Ratings

    Rated voltage Rated current (A)
    Non-inductive load Inductive load
    Resistive load Lamp load Inductive load Motor load
    NC NO NC NO NC NO NC NO
    125VAC 5 (0.1) 1.5 0.7 3 2.5 1.3
    250VAC 3 1 0.5 2 1.5 0.8
    8VDC 5 (0.1) 2 5 4 3
    14VDC 5 (0.1) 2 4 4 3
    30VDC 4 (0.1) 2 3 3 3
    125VDC 0.4 0.05 0.4 0.05
    250VDC 0.2 0.03 0.2 0.03



    Surge current NC Below 20A
    NC Below 10A
    Application
    Conveying system

    Conveying System

    Automation equipment

    Automation Equipment

    Machinery equipment

    Machinery Equipment

    FAQ
    ❯

    The waterproof design helps protect internal components from moisture, dust, and contaminants, improving reliability and extending service life.

    ❯

    Ensure the switch is mounted securely in a stable position and aligned properly with the moving part so it can be actuated smoothly without excessive force.

    ❯

    Select a location where the switch can be triggered reliably, avoiding misalignment, vibration, or impact that could affect performance.
